STARTECH Usb-c / Usb 3.0 Docking Station - DK30A2DH

STARTECH Usb-c / Usb 3.0 Docking Station - DK30A2DH

Name: STARTECH Usb-c / Usb 3.0 Docking Station - DK30A2DH
Brand: StarTech
SKU: DK30A2DH
Price: 338 AUD
Availability: InStock

SKU : DK30A2DH

Brand : StarTech

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

Connectivity Technology: Wired, Cable Length: 3,3 ft [1 m], Chipset ID: DisplayLink - DL-6950, VIA/VLI - VL813, Power Consumption (In Watts): 40W, Maximum Data Transfer Rate: 5 Gbps/2 Gbps, Warranty: 03 Years, DK30A2DH.

Ask a question about this product

$338.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Startech | Model # DK30A2DH

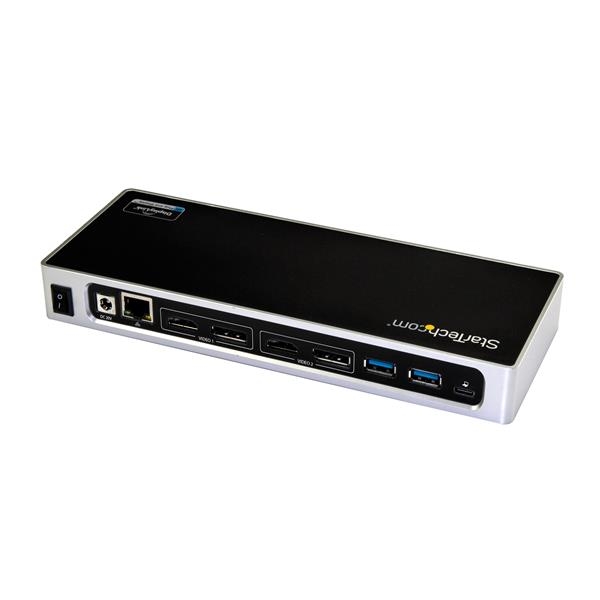

The StarTech DK30A2DH is a dual-4K docking station that offers wide flexibility in setting up your workstation, working with both USB-C and USB-A port laptops, and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors. Ideal for highly detailed graphics applications, this dual-4K 60Hz docking station enhances your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors. The laptop docking station works with DisplayLink to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection.

Features:

DK30A2DH Connect your Mac or Windows laptop to dual-4K 60Hz monitors (2x DisplayPort, 2x HDMI, HDMI + DP)
DisplayLink certified DL 6950 chipset supports both USB-C and USBA port equipped PC laptops
Connect more USB devices with 6 x USB 3.0 (Type-A) ports
Add wired network connectivity with the Gigabit Ethernet RJ45 port
Multiple audio connections with separate 3.5 mm headphone and mic input audio jack ports.

Overview:

Connectivity Technology: Wired
Cable Length: 3,3 ft [1 m]
Chipset ID: DisplayLink - DL-6950, VIA/VLI - VL813
Power Consumption (In Watts): 40W
Maximum Data Transfer Rate: 5 Gbps/2 Gbps

Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Product Type	Docking Station
4K Support	Yes
Bus Type	USB-C, USB 3.0
Chipset ID	DisplayLink - DL-6950, VIA/VLI - VL813
Displays Supported	2
Fast-Charge Port(s)	No
Industry Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0 - Backward compatible with USB 2.0/1.1
Auto MDIX	Yes
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
Maximum Data Transfer Rate	5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions	Single display - DisplayPort - 4096 x 2160 @ 60Hz / 3840 x 2160 @ 60Hz Single Display - HDMI - 4096 x 2160 @ 60Hz / 3840 x 2160 @ 60Hz Dual displays DisplayPort and HDMI - 4096 x 2160 @ 60Hz / 3840 x 2160 @ 60Hz
Type and Rate	USB 3.0 - 5 Gbit/s
UASP Support	Yes
Connector Type(s)	- 2 - DisplayPort (20 pin) Female 2 HDMI (19 pin) Female 1 USB Type-C (24 pin) USB 3.0 (5Gbps) Female 1 RJ-45 Female 6 USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps) Female 1 3.5 mm Mini-Jack (3 Position) Female 1 3.5 mm Mini-Jack (4 Position) Female
OS Compatibility	Windows 7, 8, 8.1, 10 macOS 10.11 - 10.12, 10.14
System and Cable Requirements	A host laptop with an available USB-C port or a USB-A port
Center Tip Polarity	Positive
Input Current	1 A
Input Voltage	100 ~ 240 AC
Output Current	2 A
Output Voltage	20V DC
Plug Type	N
Power Consumption (In Watts)	40W
Power Source	AC Adapter Included
Cable Length	3,3 ft [1 m]
Color	Black & Silver
Enclosure Type	Aluminum and Plastic
Product Height	1.1 in [28 mm]
Product Length	8.9 in [226 mm]
Product Weight	10.6 oz [301 g]
Product Width	3.4 in [87 mm]
Device Supported	Notebook
Connectivity Technology	Wired

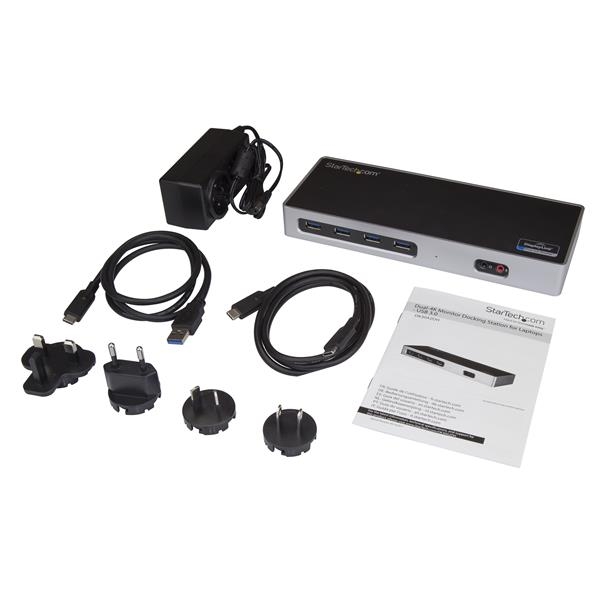

Included	1 x Docking station 1 x 1m USB-C to USB-A cable 1 x 1m USB-C to USB-C cable 1 x Universal power adapter (NA/JP, UK, EU, ANZ) 1 x Quick-start guide
