Thermaltake AH T200 Tempered Glass Micro-ATX Case Black

SKU : CA-1R4-00S1WN-00
Brand : Thermaltake
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Color: Black, Series: AH Series, Model: AH T200 Black, Case Type: Micro Case, Warranty: 02 Years Limited, CA-1R4-00S1WN-00.
Ask a question about this product
$236.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Thermaltake | Model # CA-1R4-00S1WN-00

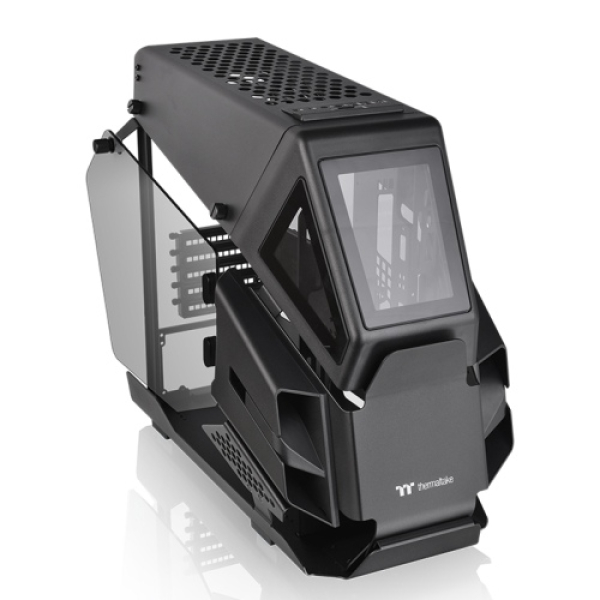

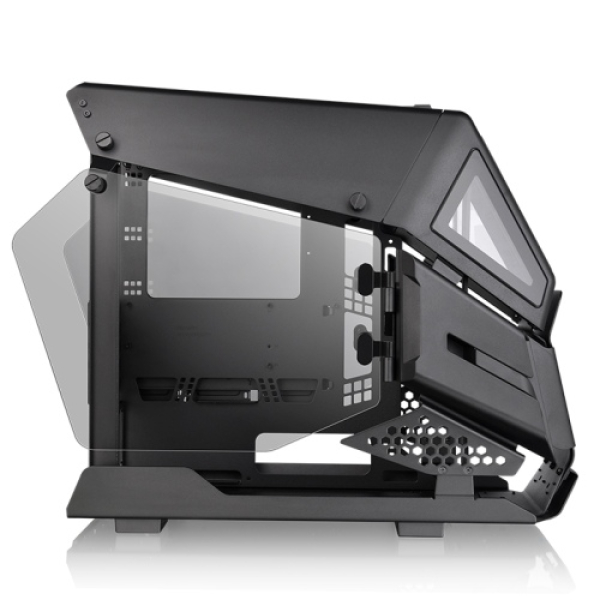

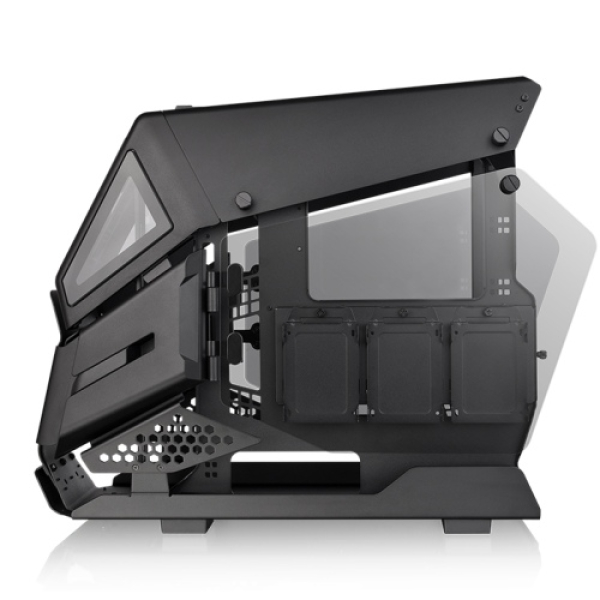

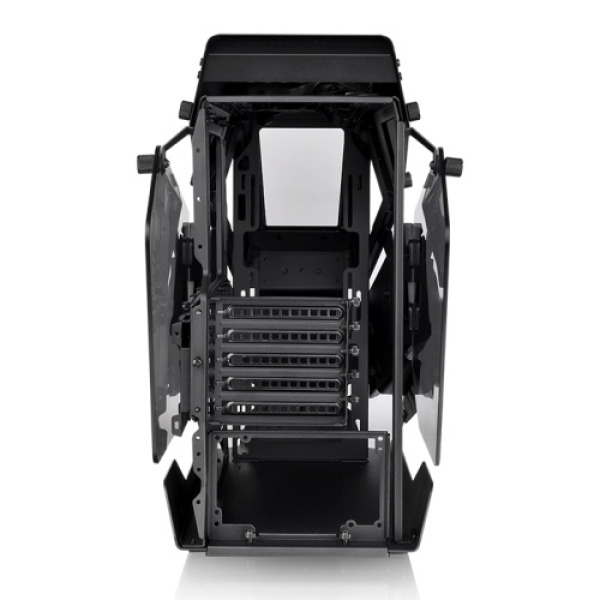

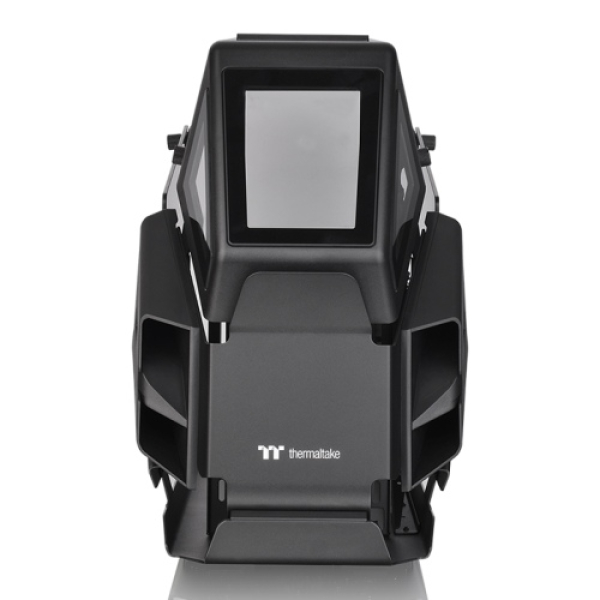

The AH T200, a smaller version of the AH T600, is the first micro case from the AH Series which is forged with a sturdy, air-force styled architecture with two large 4mm tempered glass panels on the left and right sides, and three 3mm tempered glass windows on the front. I/O ports are located at the top-front panel with a futuristic power button. Not only ensures outstanding ventilation but enables users to demonstrate their handwork and showcase their internal components. The AH T200 can hold up to two 140mm fans at the front and on top, 240mm or 280mm All-In-One CPU cooler at the front. The AH T200 Micro Chassis is one-of-a-kind that all users will notice, love, and desire.



Features:

  • Sophisticated and special interior space design of the AH T200 provides enough capacity for PC componets placement and cable management.
  • Thanks to the dedicated open frame design of the AH T200, the airflow within the case moves smoothly, ensuring the interior temperature stays low at all times.
  • Two 3.0 USB and one USB 3.1 (Gen 2) Type C ports placed at the panel to grant direct access when needed.



Overview:

  • Color: Black
  • Series: AH Series
  • Model: AH T200 Black
  • Case Type: Micro Case



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Color Black
Series AH Series
Model AH T200 Black
Case Type Micro Case
Dimension (H X W X D) 444.2 x 282 x 551.5 mm
(17.5 x 11.1 x 21.7 inch)
Net Weight 10.8 kg / 23.8 lb
Panel Tempered Glass x 2
Material Spcc
Cooling System N/A
Drive Bays
-Accessible
-Hidden
2 x 3.5" or 3 x 2.5” (3.5” HDD thickness limitation: 22mm)
Expansion Slots 5
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)
I/O Port USB 3.1 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio x 1
Psu Standard PS2 PSU (optional)
Fan Support Front:
2 x 120mm or 1 x 120mm
2 x 140mm or 1 x 140mm
Top:
2 x 120mm or 1 x 120mm
2 x 140mm or 1 x 140mm
Radiator Support Front:
1 x 240mm or 1 x 120mm
1 x 280mm or 1 x 140mm
Clearance CPU cooler max height: 150mm
VGA max length: 320mm
PSU max length: 180mm
3.5” HDD thickness limitation: 22mm
