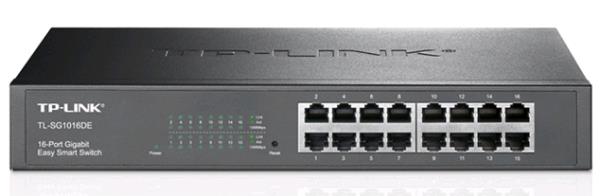

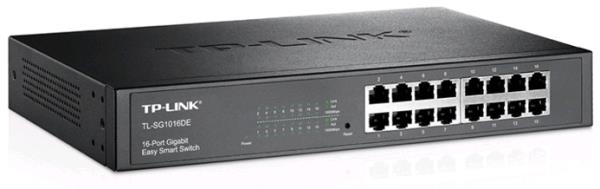

TP-LINK 16 Port Gigabit Easy Smart Unmanaged TL-SG1016DE

SKU : TL-SG1016DE
Brand : TP-Link
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
TP-LINK TL-SG1016DE, Port-16, Interface 16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX, Power 100-240VAC, 50/60Hz, Rack Mountable, Max Power Consumption 10.22W (220V/50Hz), Max Heat Dissipation 34.5 BTU/h, Capacity 32Gbps, MAC Address Table 8K, Buffer 4.1Mbit, Jumbo Frame 10KB, Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN, O/S Microsoft® Windows for Easy Smart Utility. The TL-SG1016DE 16-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network.
Ask a question about this product
$95.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # TP-Link | Model # TL-SG1016DE



The TL-SG1016DE 16-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network.



TL-SG1016DE offers Port Priority/802.1P Priority and DSCP QoS1 to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG1016DE can save up to 18% of power consumption, making it an eco-friendly solution for your business network.



Features:

  • TP-LINK TL-SG1016DE 16 10/100/1000Mbps RJ45 ports
  • Provides network monitoring, traffic prioritization and VLAN features
  • Innovative energy-efficient technology reduces power output by up to 18%
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and management utility simplify configuration



Overview:

  • 100-240VAC, 50/60Hz Power Supply
  • Rack Mountable Mounting
  • 19.2W Max Power Consumption
  • 32Gbps Switching Capacity
  • 512KB Buffer Memory
  • FCC, CE, RoHS Certification



Manufacturer Warranty: 01 Year Limited Warranty



Technical Specifications

Standards and Protocols IEEE 802.3i
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.1q
IEEE 802.1p
Interface 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock No
Power Supply 100-240VAC, 50/60Hz
Dimensions ( W x D x H ) 11.6 x 7.1 x 1.7 in.
(294 x 180 x 44 mm)
Mounting Rack Mountable
Max Power Consumption 10.22W (220V/50Hz)
Max Heat Dissipation 34.5 BTU/h
Switching Capacity 32Gbps
Packet Forwarding Rate 23.8Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1Mbit
Jumbo Frame 10KB
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
Certification FCC, CE, RoHS

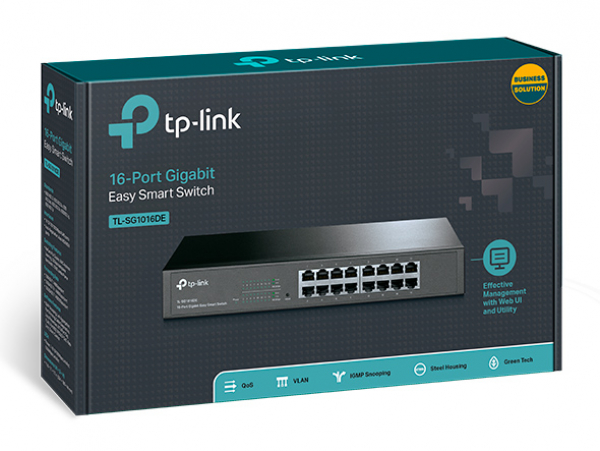

Package Contents TL-SG1016DE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
System Requirements Microsoft® Windows® for Easy Smart Utility
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
