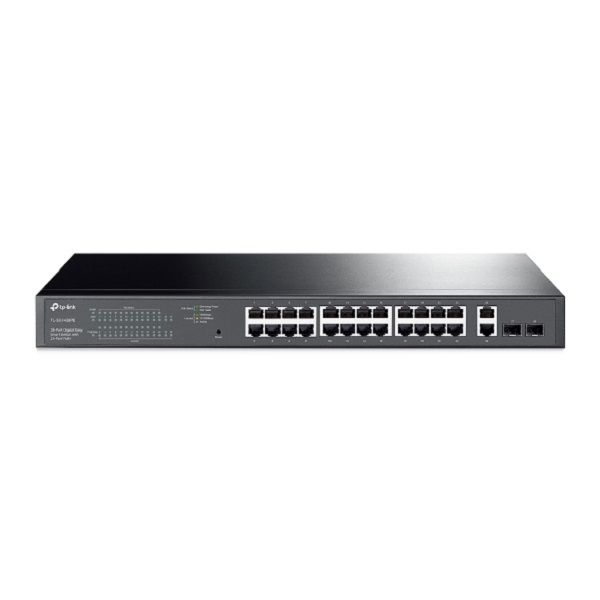

TP-Link 28-port Gigabit Easy Smart Managed Switch With 24-port Poe+ 32xvl TL-SG1428PE

Name: TP-Link 28-port Gigabit Easy Smart Managed Switch With 24-port Poe+ 32xvl TL-SG1428PE
Brand: TP-Link
SKU: TL-SG1428PE
Price: 366 AUD
Availability: InStock

SKU : TL-SG1428PE

Brand : TP-Link

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

TP-Link TL-SG1428PE, Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p, Interface 26 10/100/1000 Mbps RJ45 Ports 2 Gigabit SFP Port, Power 100-240V AC, 50/60 Hz, PoE+ Ports(RJ45) Standard 802.3at/802.3af compliant, PoE+ Ports: 24 Ports, Power Supply 250 W, Capacity 56 Gbps, Jumbo Frame 9KB. TP-Link 28-port Gigabit Easy Smart Switch With 24-port Poe+ 32xvlan 56gbps Switching Capacity Rack Mountable. The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phone.

Ask a question about this product

$366.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # TP-Link | Model # TL-SG1428PE

TP-Link 28-port Gigabit Easy Smart Switch With 24-port Poe+ 32xvlan 56gbps Switching Capacity Rack Mountable. The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Features:

TP-Link TL-SG1428PE 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems
Priority Mode helps to guarantee the quality of sensitive application like video monitoring
PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
Intelligent power management can protect the switch from overload

Overview:

Switching Capacity: 56 Gbps
Packet Forwarding Rate: 41.7 Mbps
MAC Address Table: 8K
Packet Buffer Memory: 4.1 Mbit
Jumbo Frame: 9 KB

Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface	26 10/100/1000 Mbps RJ45 Ports 2 Gigabit SFP Ports
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF
Fan Quantity	2 Fans
Physical Security Lock	Yes
Power Supply	100-240V AC, 50/60 Hz
PoE+ Ports(RJ45)	Standard: 802.3at/802.3af compliant PoE+ Ports: 24 Ports Power Supply: 250 W
Dimensions ( W x D x H )	17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Mounting	Rack Mountable
Max Power Consumption	27 W (220/50Hz. no PD connected) 304.7 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation	92.07 BTU/h (no PD connected) 1039.03 BTU/h (with 250 W PD connected)
Switching Capacity	56 Gbps
Packet Forwarding Rate	41.7 Mbps
MAC Address Table	8K
Packet Buffer Memory	4.1 Mbit
Jumbo Frame	9 KB
Quality of Service	Support Port-based 802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control
L2 Features	IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery
VLAN	Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
Management	Web-Based GUI Easy Smart Configuration Utility
Transmission Method	Store-And-Forward
Certification	CE, FCC, RoHS
Package Contents	TL-SG1428PE Power Cord Installation Guide Rackmount Kit Rubber Feet
Environment	Operating Temperature: 0°C~50°C (32°F~122°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing
