TP-Link PSM550-AC 550W AC Power Supply Module

Name: TP-Link PSM550-AC 550W AC Power Supply Module
Brand: TP-Link
SKU: PSM550-AC
Price: 523 AUD
Availability: InStock

SKU : PSM550-AC

Brand : TP-Link

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

AC Power Input: 100-240V~ 50/60Hz 7A, Surge Protection: ±4 kV, Dimensions: 185×73.5×40 mm, Maximum Power Output: 550W, Warranty: 03 Years Limited, PSM550-AC.

Ask a question about this product

$523.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # TP-Link | Model # PSM550-AC

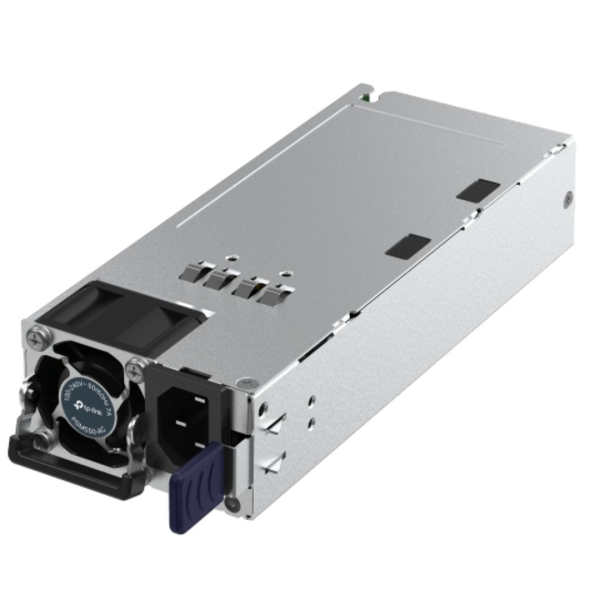

The TP-Link Power Supply Module PSM550-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 12 Volts with a maximum output power of 550 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple Omada and Omada Pro switch models, such as SX6632YF, S7500-26XF6Y.

Features:

Up to 550 watts output power
12 V DC output voltage
Fully hot-swappable, ensuring no system interruption during installation or replacement
Output over-voltage/over-current/short circuit/over-temperature protection
Suitable for SX6632YF, S7500-26XF6Y

Overview:

AC Power Input: 100-240V~ 50/60Hz 7A
Surge Protection: ±4 kV
Dimensions: 185×73.5×40 mm
Maximum Power Output: 550W

Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Redundant Power Supply:-
AC Power Input	100-240V~ 50/60Hz 7A
DC Power Output	12V main: 12 VDC/45 A (Maximum) 12Vsb: 12 VDC/2.1A (Maximum)
Surge Protection	±4 kV
Dimensions	185×73.5×40 mm
Maximum Power Output	550W
Environment	Operating Temperature (sea level to 3000 m): 0?C–55?C (32?F to 131?F) Operating Temperature (sea level to 5000 m): 0?C–45?C (32?F to 113?F) Storage Temperature: -40?–70? (-40?~158?) Operating Humidity: 5%–90% RH, Non-condensing Storage Humidity: 5%–95% RH, Non-condensing
