Ubiquiti 24-port Ideal Managed Switch Enterprise

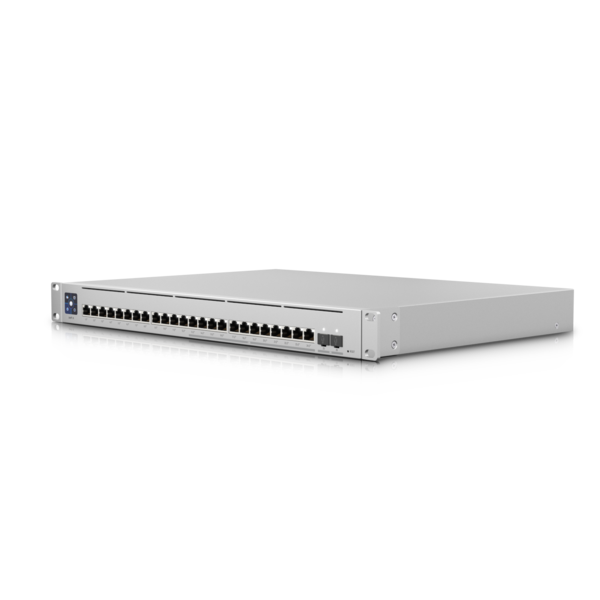

Name: Ubiquiti 24-port Ideal Managed Switch Enterprise
Brand: Ubiquiti
SKU: USW-Enterprise-24-PoE
Price: 1596 AUD
Availability: InStock

SKU : USW-Enterprise-24-PoE

Brand : Ubiquiti

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Ubiquiti USW-Enterprise-24-PoE Networks Enterprise PoE+ 24 Port Switch with 2 SFP+ Ports, Total Non-Blocking Throughput 62 Gbps, Switching Capacity 124 Gbps, Forwarding Rate 92.25 Mpps, Max. Power Consumption 550W, Management Interface Ethernet In-Band, Services SMB Layer 3 PoE Gigabit Ethernet Switch, 1 Year Warranty, I/O 12x 2.5G RJ45 with PoE+, 12x Gigabit RJ45 with PoE+, 2x 10G SFP+. The Ubiquiti USW-ENTERPRISE-24-POE is a Configurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+. It offers (12) 2.5G RJ45 Ethernet ports, (12) 1G RJ45 Ethernet ports, and (2) 10G SFP+ ports.

Ask a question about this product

$1,596.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Ubiquiti | Model # USW-Enterprise-24-PoE

The Ubiquiti USW-ENTERPRISE-24-POE is a Configurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+. It offers (12) 2.5G RJ45 Ethernet ports, (12) 1G RJ45 Ethernet ports, and (2) 10G SFP+ ports, providing 2.5G PoE links to your WiFi 6 APs and 10G fiber uplinks to your network. Features include a 1.3" touchscreen, single-row RJ45 port layout for easy patch panel cable management, and UniFi SmartPower Redundant Power System (USP-RPS) support for intelligent protection from internal PSU interruption or failure.

Features:

(24) 10GbE RJ45 Ports
(2) 25GbE SFP28 Ports
1.3" Touchscreen with AR Switch Management
UniFi SmartPower RPS DC input.

Overview:

Total Non-Blocking Throughput: 62 Gbps
Switching Capacity: 124 Gbps
Forwarding Rate: 92.25 Mpps
Max. Power Consumption: 550W

Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Total Non-Blocking Throughput	62 Gbps
Switching Capacity	124 Gbps
Forwarding Rate	92.25 Mpps
Max. Power Consumption	550W
Power Method	(1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz (1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A
Power Supply	AC/DC, Internal, 550W
Management Interface	Ethernet In-Band
Networking Interfaces	(12) 10/100/1000 Mbps RJ45 Ethernet (12) 100/1000/2500 Mbps RJ45 Ethernet
SFP+ Interfaces	(2) 1/10G SFP+
PoE Interfaces	(24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE+ Wattage per Port by PSE	34.2W
Voltage Range 802.3af Mode	44 to 57V
Voltage Range 802.3at Mode	50 to 57V
Services	SMB Layer 3 PoE Gigabit Ethernet Switch
ESD/EMP Protection	Air: ± 16 kV, Contact: ± 12 kV
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	10 - 95% Noncondensing
Certifications	CE, FCC, IC
Product Includes	(1) USW Enterprise Switch (1) Set of rack mount brackets (1) Set of mounting clips (1) Set of screws (1) US power cord
