Ubiquiti Edgeswitch Managed Poe+ Giga Switch 8 Port 150w (ES-8-150W-AU)

Name: Ubiquiti Edgeswitch Managed Poe+ Giga Switch 8 Port 150w ES-8-150W-AU
Brand: Ubiquiti
SKU: ES-8-150W-AU
Price: 378 AUD
Availability: InStock

SKU : ES-8-150W-AU

Brand : Ubiquiti

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

Ubiquiti ES-8-150W-AU, Non-Blocking Throughput 10 Gbps, Capacity 20 Gbps, Forwarding 14.88 Mpps, Includes PoE Output 150W, Excludes PoE Output 20W, Power supply AC/DC, Internal, 150W DC, Interface 10/100/1000 Mbps RJ45 Ethernet Ports, 1 Gbps SFP Ethernet Ports. The fanless EdgeSwitch® 8 is a fully managed, high-performance, PoE+ Gigabit switch. It delivers powerful performance and intelligent switching with its 10 independent switching ports. A DC input option is included for flexibility.

Ask a question about this product

$378.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Ubiquiti | Model # ES-8-150W-AU

The fanless EdgeSwitch^® 8 is a fully managed, high-performance, PoE+ Gigabit switch. It delivers powerful performance and intelligent switching with its 10 independent switching ports. A DC input option is included for flexibility.

Features:

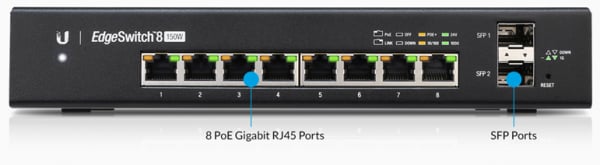

The compact EdgeSwitch ES-8-150W-AU features a versatile port configuration eight Gigabit Ethernet ports
That support PoE+ and two SFP ports for fiber connectivity
It can be placed on a desktop or mounted on a wall
Sharing a total of 150W, eight Gigabit Ethernet ports offer auto-sensing
IEEE 802.3af/at PoE/PoE+ or 24V passive PoE to simplify your infrastructure
The EdgeSwitch provides fiber connectivity options for your growing networks
Two SFP ports provide uplinks of up to 1 Gbps.

Overview:

Total Non-Blocking Throughput: 10 Gbps
Switching Capacity: 20 Gbps
Forwarding Rate: 14.88 Mpps
Includes PoE Output: 150W
Excludes PoE Output: 20W

Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Dimensions	204 x 43 x 235 mm (8.03 x 1.69 x 9.25")
Weight	1.72 kg (3.79 lb) 1.8 kg (3.96 lb
Total Non-Blocking Throughput	10 Gbps
Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
Includes PoE Output	150W
Excludes PoE Output	20W
Power Method AC	100-240VAC/50-60 Hz, AC/DC Integrated PSU, Universal Input
Power Method DC	42 to 56VDC External, (Self-Correcting Polarity Protection) Terminal Block Input
Power Supply	AC/DC, Internal, 150W DC
LEDs Per Port RJ45 Data Ports	PoE, Speed/Link/Activity
LEDs Per Port SFP Data Ports	Speed/Link/Activity
Networking Interfaces	(8) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface	(1) RJ45 Serial Port, Ethernet In/Out Band
Certifications	CE, FCC, IC
Wallmount	Yes
ESD/EMP Protection	Air: ±24 kV, Contact: ±24 kV
Internal AC/DC @ 150W	-25 to 45° C (-13 to 113° F)
Internal AC/DC @ 100W	-25 to 55° C (-13 to 131° F)
External DC	-25 to 60° C (-13 to 140° F)
Operating Humidity	5 to 95% Noncondensing
Shock and Vibration	ETSI300-019-1.4 Standard
