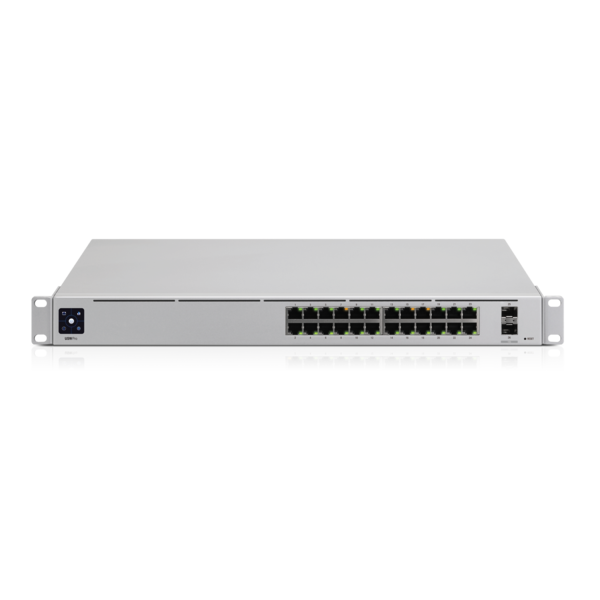

Ubiquiti New Item Unifi 24-port Switch With (24) Gigabit Rj45 Ports And (2 (USW-Pro-24)

SKU : USW-Pro-24
Brand : Ubiquiti
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
(2) 10G SFP+ ports Layer 2 and Layer 3 features UniFi SmartPower RPS DC input Near-silent cooling 1.3" touchscreen display Managed by UniFi Network Controller   UniFi Switch Pro 24 is a fully managed Layer 3 switch with (24) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability
Ask a question about this product
$749.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Ubiquiti | Model # USW-Pro-24



UniFi Switch Pro 24 is a fully managed Layer 3 switch with (24) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 24 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server.



The UniFi Switch Pro 24 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.



Features:

  • (24) Gigabit RJ45 ports
  • (2) 10G SFP+ ports
  • Layer 2 and Layer 3 features
  • UniFi SmartPower RPS DC input
  • Near-silent cooling
  • 1.3" touchscreen display
  • Managed by UniFi Network Controller



Overview:

  • Total Non-Blocking Throughput: 44 Gbps
  • Switching Capacity: 88 Gbps
  • Forwarding Rate: 65.472 Mpps
  • Power Supply: AC/DC, Internal, 36W
  • Voltage Range: 100 to 240VAC



Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Dimensions 442.4 x 285.4 x 43.7 mm
(17.42 x 11.24 x 1.72")
Weight
With Brackets
3.50 kg (7.72 lb)
3.59 kg (7.92 lb)
Interfaces
Networking

Management

(24) 10/100/1000 RJ45 Ports
(2) 1/10G SFP+ Ethernet Ports
Ethernet In-Band
Total Non-Blocking Throughput 44 Gbps
Switching Capacity 88 Gbps
Forwarding Rate 65.472 Mpps
Power Method
Universal Input
USP RPS DC Input

100-240VAC, 50/60 Hz
11.5VDC, 2.61A
Power Supply AC/DC, Internal, 36W
Voltage Range 100 to 240VAC
Max Power Consumption 30W
LEDs
RJ45 Data Ports
SFP+ Data Ports

Speed/Link/Activity
Link/Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
