Ubiquiti Unifi USW-24 Port Managed Gigabit Switch

Name: Ubiquiti Unifi USW-24 Port Managed Gigabit Switch
Brand: Ubiquiti
SKU: USW-24
Price: 442 AUD
Availability: InStock

SKU : USW-24

Brand : Ubiquiti

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

Enclosure material: SGCC steel, Management interface: Ethernet In-Band, Total non-blocking line rate: 26 Gbps, Power method: 100—240V AC, 50/60 Hz, universal input.

Ask a question about this product

$442.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Ubiquiti | Model # USW-24

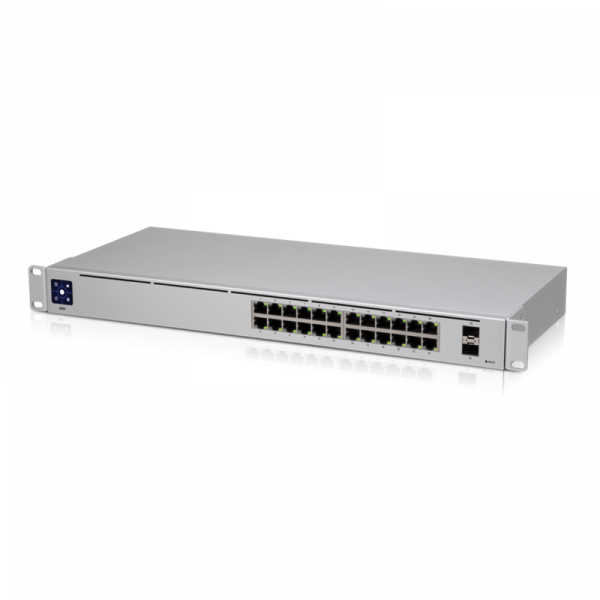

The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.

Features:

(24) GbE RJ45 ports
(2) 1G SFP ports
1.3" LCM color touchscreen with AR switch management

Overview:

Enclosure material: SGCC steel
Management interface: Ethernet In-Band
Total non-blocking line rate: 26 Gbps
Power method: 100—240V AC, 50/60 Hz, universal input
Power supply: AC/DC, internal, 36W
Supported voltage range: 100—240V AC
Max. power consumption: 25W

Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Dimensions	442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72")
Weight	Without mounting brackets: 2.7 kg (5.95 lb) With mounting brackets: 2.8 kg (6.15 lb)
Enclosure material	SGCC steel
Networking interface	(24) 10/100/1,000 MbE RJ45 ports (2) 1G SFP Ethernet ports
Management interface	Ethernet In-Band
Total non-blocking line rate	26 Gbps
Power method	100—240V AC, 50/60 Hz, universal input
Power supply	AC/DC, internal, 36W
Supported voltage range	100—240V AC
Max. power consumption	25W
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
Shock and vibration	ETSI300-019-1.4 Standard
Operating temperature	-5 to 45° C (23 to 113° F)
Operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
System	Status
Ethernet	Speed/link/activity
SFP	Link/activity
