| Network Standard |
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IEEE 802.11e
IEEE 802.11i
IPv4
IPv6 |
| Product Segment |
AX5400 ultimate AX performance : 574+4804 Mbps |
| WiFi Data Rate |
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) (256QAM) : up to 400 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4808 Mbps |
| xDSL Data Rate |
G.994 Handshake;
G.992.1 (G.dmt) Annex A;
G.992.2 (G.lite) Annex A;
ANSI T1.413;
G.992.3 (ADSL2), Annexes A, L, and M;
G.992.5 (ADSL2+), Annexes A and M;
G.993.2 (VDSL2),Annex A, B,supporting up to 35b [350Mbps/65Mbps];
G.993.2 Amd 7;
G.993.5 (G.vector);
G.998.4 (G.INP) |
| Antenna |
External antenna x 4 |
| Operating Frequency |
2.4 GHz
5 GHz |
| Operating Mode |
Operating Mode
AiMesh Node Mode
Access Point Mode
Media Bridge Mode
Repeater Mode |
| I/O Ports |
RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 4
USB 3.2 Gen 1 x 1
RJ11 for xDSL x 1 |
| Buttons |
Reset Button, Power Switch, WPS/LED Combo button |
| LED Indicator |
Power x 1
Wi-Fi x 1
LAN x 1
xDSL/WAN x 1 |
| Power Supply |
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2.5 A current |
| Package content |

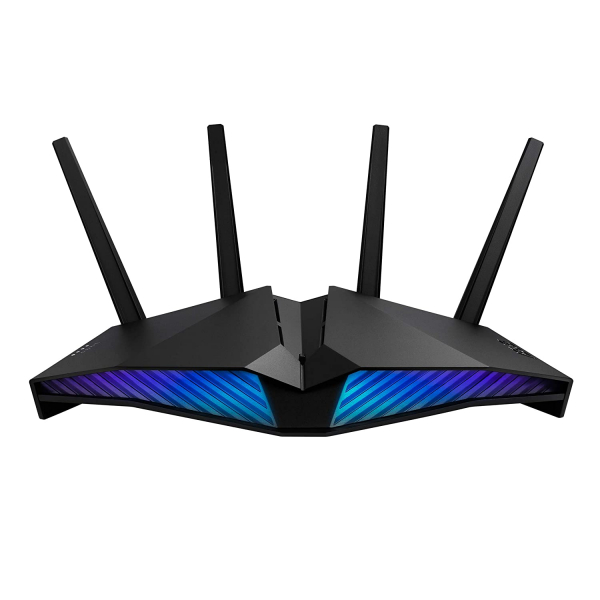

DSL-AX82U WiFi modem router, RJ-45 cable, RJ-11 cable, Splitters, Power adapter, Quick Start Guide, Warranty card |
| Product Informaton |
Product Weight (g) : 572
Product Dimensions with antennas (L*W*H) mm : 275.5 x 184.4 x 165 |
| AiMesh |
AiMesh
Primary AiMesh router
AiMesh node |
| Game |
Game Boost/acceleration
OpenNAT (Game Profile) |
| Parental Control |
"Allow you to block access to unwanted websites and apps."
Web & Apps Filters
Time Scheduling
Reward
Safe Browsing
Customized Internet Schedule
• Maximum Parental Control profile : 16
• Maximum Parental Control content filter rule : 16 |
| Guest Network |
Guest Network
• Maximum Guest Network rule : 6
Guest Network Connection time limit |
| Security |
AiProtection Pro
VPN
WiFi Encryption
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall keyword filter : 64
• Maximum Firewall network service filter : 64
• Maximum Firewall URL filter : 64 |
| AiProtection |
AiProtection Pro
Router Security Assessment
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking |
| VPN |
Instant Guard
VPN Client L2PT
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion |
| Traffic Control |
Adaptive QoS
• Bandwidth Monitor
• Bandwidth limiter
-- Maximum Bandwidth limiter rule : 32
• Traditional QoS
-- Maximum Traditional QoS rule : 32
Traffic Monitor
• Real-time traffic monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic analysis period : Daily, Weekly, Monthly
• Website history |
| WAN |
PPPoE
PPTP
L2TP
Automatic IP
Static IP
Dual WAN
3G/4G LTE dongle
Android phone tethering
iPhone tethering
Port forwarding
• Maximum port forwarding rule : 64
Port triggering
• Maximum port triggering rule : 32
DMZ
DDNS |
| LAN |
DHCP Server
IGMP snooping
IPTV
Manually assign IP address
• Maximum manually assign IP address rule : 64
Wake on LAN (WOL) |
| Wireless |
MU-MIMO
UTF-8 SSID
Wi-Fi MAC address filter
• Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
RADIUS Server
Universal beamforming
Explicit beamforming |
| USB application |
HFS+
NTFS
ext4
HDD hibernation
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges |
| Operating System |
WEB: ASUSWRT
APP: ASUS Router APP |
| Administration |
Configuration backup and restore
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Auto Firmware Update
Ads Block (Ad Guard) |
| Smart Home |
Support IFTTT |
