ATEN 2 Port Usb Dual-link Dvi Kvmp Switch With CS1782A-AT-U

Name: ATEN 2 Port Usb Dual-link Dvi Kvmp Switch With CS1782A-AT-U
Brand: ATEN
SKU: CS1782A-AT-U
Price: 321 AUD
Availability: InStock

SKU : CS1782A-AT-U

Brand : ATEN

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

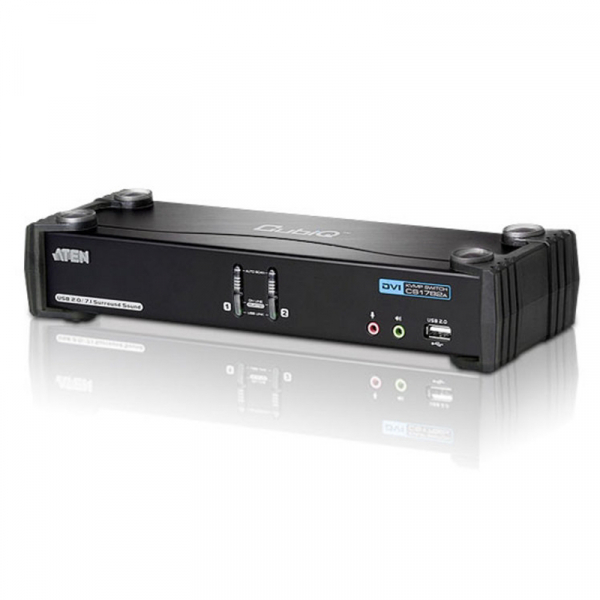

The ATEN CS1782A USB DVI Dual Link KVMP™ Switch merges a 2-port KVM switch with a 2-Port USB hub and DVI monitor support, offering advanced features like nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility, and video switching with a mouse. The switch also supports high-definition 7.1 surround sound and ensures superior video quality with resolutions up to 2560 x 1600 @ 60Hz.

Ask a question about this product

$321.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture: Aten | Model: CS1782A-AT-U

The CS1782A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 2-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.

Package Contents

1x CS1782A USB DVI Dual Link KVMP™ Switch
2x KVM Cable (DVI-D DL, USB, Audio; 1.8m/6ft)
2x 7.1 Channel Surround Sound Cable (1.8m/6ft)
1x Power Adapter
1x User Instructions

2-port DVI KVMP Switch with USB 2.0 and 7.1 Surround Sound Audio
One USB console controls two computers and two additional USB devices
2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
Full bass response for high quality 7.1 channel surround sound systems
Computer selection via font panel pushbuttons, hotkeys, and mouse NEW!
Multiplatform support – Windows, Linux, Mac, and Sun*
Independent switching of KVM, USB, and Audio focus
DVI digital and analog monitor support – fully compliant with the DVI specifications
Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
HDCP compatible
Support widescreen resolutions
Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports
Power on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW!
Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice
Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW!
Complete keyboard emulation for error-free booting
Mac/Sun keyboard support and emulation*
Multilingual keyboard mapping – supports English, Japanese, and French keyboards
Auto Scan Mode for monitoring all computers
Firmware upgradable

* PC keyboard combinations emulate Mac/Sun keyboards
Mac/Sun keyboard work only with their own

Write Review

Reviews

Write Review

Reviews

Be the first to write a review

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

Computer Connections	2
Port Selection	Hotkey, Pushbutton, Mouse
Connectors
Console Ports	2 x USB Type A Female (rear panel) 1 x DVI-I Female (White) 2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel) 1 x 3.5mm Audio Jack Female (Blue) 1 x 3.5mm Audio Jack Female (Gray) 1 x 3.5mm Audio Jack Female (Black) 1 x 3.5mm Audio Jack Female (Orange) 2 x 3.5mm Audio Jack Female (Pink; 1 x front panel, 1 x rear panel)
KVM Ports	2 x USB Type B Female 2 x DVI-I Female (White) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Blue) 2 x 3.5mm Audio Jack Female (Gray) 2 x 3.5mm Audio Jack Female (Black) 2 x 3.5mm Audio Jack Female (Orange) 2 x 3.5mm Audio Jack Female (Pink)
Power	1 x DC Jack
USB Hub	2 x USB Type A Female (1 x front panel, 1 x rear panel)
Switches
Power Selected	2 x Pushbutton
LEDs
USB Link	2 (Green)
On Line /Selected	2 (Orange)
Emulation
Keyboard / Mouse	USB
Video	DVI Dual Link: 2560 x 1600 @ 60Hz; DVI Single Link: 1920 x 1200 @ 60Hz
Scan Interval	1–99 seconds (default: 5 secs)
Power Consumption	DC5.3V:3.3W:41BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0 -50°C
Storage Temperature	-20-60°C
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.90 kg ( 1.98 lb )
Dimensions (L x W x H)	27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
