ATEN 4 Port Usb Dual-view Kvmp Switch W/ Usb CS1744C-AT

Name: ATEN 4 Port Usb Dual-view Kvmp Switch W/ Usb CS1744C-AT
Brand: ATEN
SKU: CS1744C-AT
Price: 379 AUD
Availability: InStock

SKU : CS1744C-AT

Brand : ATEN

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

4.6

5 reviews

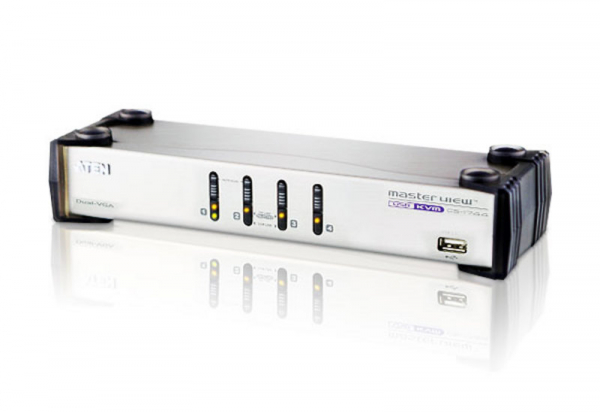

The CS1744 4-Port USB Dual-View KVMP™ Switch enables seamless control of four dual-display computers using a single USB keyboard, mouse, and two VGA/SVGA/Multisync monitors. It features a built-in 2-port USB hub for easy peripheral sharing and supports high-quality video resolution up to 2048 x 1536. With audio and microphone support, this switch enhances productivity and flexibility in multi-monitor environments.

Ask a question about this product

$379.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture: Aten | Model: CS1744C-AT

CS1744 KVM Switch integrates functions of video signal dual output and USB KVM switches. It allows a computer with dual-screen support to pair with two VGA/SVGA/Multisync displays via a USB keyboard and mouse. Furthermore, CS1744 provides 1 USB port on each of the front and rear panels, allowing each server to share any USB peripheral device that is connected to this HUB.

Package Contents

1x 4-Port USB Dual-View KVMP™ Switch
4x Custom KVM Cable (VGA, USB; 1.8m/6ft)
4x Custom KVM Cable (VGA, Audio; 1.8m/6ft)
1x Firmware Upgrade Cable
1x User Instructions

Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control four dual display computers
2 port USB Hub built in
Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
With speaker and microphone support
Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
Buzzer On/Off via hotkey
Keyboard and mouse emulation for error free booting
Computer selection via front panel pushbuttons and hotkeys
Superior video quality - up to 2048 x 1536; DDC2B
Firmware upgradeable
OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers.

4.6

5	☆
4	☆
3	☆
2	☆
1	☆

Pros:Usb

Write Review

Reviews (5)

Write Review

Reviews (5)

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

Computer Connections	4
Port Selection	Hotkey, Pushbutton
USB Port / Audio Port Selection	Hotkey
Connectors
Console Ports	2 x USB Type A Female (White) 2 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
KVM Ports	4 x SPHD-15 Male (Yellow) 4 x SPHD-15 Female (Green)
USB Hub	2 x USB Type A Female (White)
Firmware Upgrade	1 x RJ-11 Female (Black)
Power	1 x DC Jack (Black)
Switches
Selected	4 x Pushbutton
LEDs
USB Link	4 (Green)
On Line /Selected	4 (Orange)
Emulation
Keyboard / Mouse	USB
Video	2048 x 1536; DDC2B
Scan Interval	1-99 seconds
Power Consumption	DC5V:1.13W:31BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20-60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	1.03 kg ( 2.27 lb )
Dimensions (L x W x H)	27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
