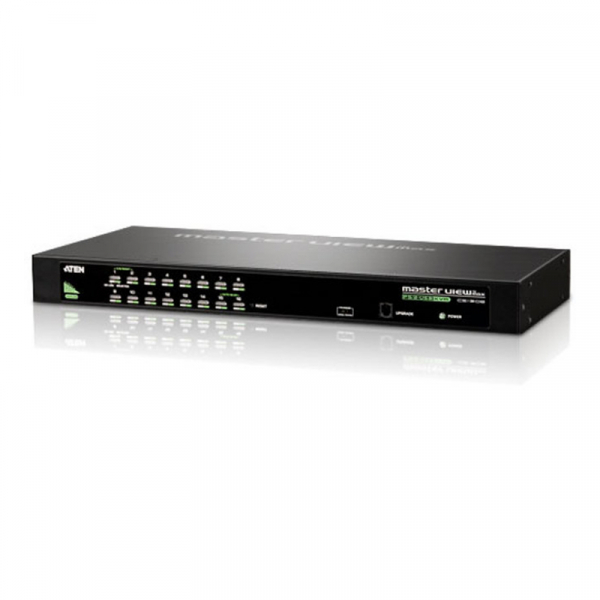

ATEN 16 Port Rackmount Usb-ps/2 Vga Kvm Switch CS1316-AT-U

SKU : CS1316-AT-U
Brand : ATEN
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
The CS1316 KVM Switch enables seamless control of up to 256 computers from a single console, supporting both USB and PS/2 connections. With cascading capability, it allows easy management of multiple systems via front panel pushbuttons, hotkeys, or an on-screen display (OSD). This versatile switch ensures optimal video quality and provides security features like password protection, making it ideal for data centers and large IT setups.
Ask a question about this product
$469.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture: Aten | Model: CS1316-AT-U



The CS1316 KVM switch allows access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single KVM console. The switch supports both USB and PS/2 connections for the console and computers.



Package Contents

  • 1x CS1316 KVM Switch with Rack Mount Kit
  • 1x Console cable
  • 1x Firmware Upgrade cable
  • 1x Foot Pad set (4 pads)
  • 1x Power Adapter
  • 1x User Instructions



  • One USB-PS/2 console controls 16 computers
  • Cascade up to 2 levels - control up to 256 computers
  • Dual Interface - supports computers with PS/2 or USB keyboards and mice
  • Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
  • Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
  • Auto PS/2 and USB interface detection
  • USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
  • Superior video quality - up to 2048 x 1536; DDC2B
  • Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
  • Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
  • Auto Scan feature for monitoring user-selected computers
  • Hot pluggable - add or remove computers without having to power down the switch
  • Buzzer on/off via hotkey and OSD
  • Firmware upgradeable
  • No software installation required
  • Designed for desktop or rack mount (19" system rack, 1U)

Technical Specifications

Computer Connections
Direct 16
Maximum 256 (via Cascade)
Port Selection OSD, Hotkey, Pushbutton
Connectors
Console Ports 1 x SPHD-18 Male (Yellow)
Firmware Upgrade 1 x RJ-11 Female (Black)
Power 1 x DC Jack
KVM Ports 16 x SPHD-15 Female (Yellow)
Switches
Ports 16 x Pushbutton
Firmware Upgrade 1 x Slide
LEDs
Online 16 (Orange)
Selected 16 (Green)
Power 1 (Dark Green)
Emulation
Keyboard / Mouse PS/2, USB
Video 2048 x 1536; DDC2B
Scan Interval 1-255 Seconds
Power Consumption DC5.3V:3.83W:26BTU/h

Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0-50?C
Storage Temperature -20-60?C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 2.10 kg ( 4.63 lb )
Dimensions (L x W x H) 43.72 x 16.13 x 4.40 cm
(17.21 x 6.35 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
