Name: Tplink 5GHZ 300MPS 23DBI Outdoor CPE 3YR WTY CPE610
Brand: TP-Link
SKU: CPE610
Price: 112 AUD
Availability: InStock

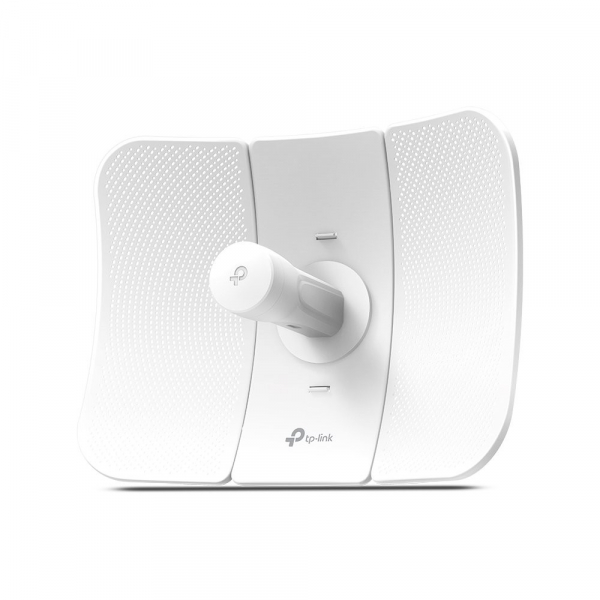

Tplink 5GHZ 300MPS 23DBI Outdoor CPE 3YR WTY (CPE610 )

SKU : CPE610

Brand : TP-Link

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # TP-Link | Model # CPE610

23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission. With 23dBi high-gain directional 2×2 MIMO Cassegrain antenna and dedicated metal reflector, the CPE610 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps 23dBi Outdoor CPE610 an ideal choice and cost effective solution for outdoor wireless networking applications.

Features:

Up to 300Mbps on 5GHz wireless data rates
23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance application
Excellent beam directivity, improved latency and noise cancellation
Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds
Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
Pharos Control gives administrators a free, centralized management system
Passive PoE supports to allow flexible deployment and convenient installation.

Overview:

Processor: Qualcomm 560MHz CPU, MIPS 74Kc
Memory: 64MB DDR2 RAM,8MB Flash
Interface: 1 10/100Mbps Shielded Ethernet Port (LAN/POE), 1 Reset Button

Manufacturer Warranty: 01 Years Limited Warranty

Technical Specifications

Processor	Qualcomm 560MHz CPU, MIPS 74Kc
Memory	64MB DDR2 RAM,8MB Flash
Interface	1 10/100Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button
Power Supply	Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27VDC
Power Consumption	7.41 W Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H )	366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Antenna Gain	23dBi
Antenna Beamwidth	9°(Azimuth), 7°(Elevation)
Protection	15KV ESD Protection 6KV Lightning Protection
Enclosure	Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design
Wireless Standards	IEEE 802.11a/n
Proprietary Protocol	TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds	Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic)
Frequency	5.15~5.85GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Transmit Power	Max. 25dBm (Adjustable power by 1dBm)
Network Configuration	WAN: Static/Dynamic/PPPoE/L2TP/PPTP LAN: Static/Dynamic/DHCP Forwarding: ALG/UPnP/Virtual Server/Port Trigger Security: SPI Firewall/ Ping Forbidden/DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding
Wireless Configurations	Pharos MAXtream TDMA Technology Selectable Channel Width: 5/10/20/40MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection(DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging(AP Mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management	Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server
System Tools	Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute
System-level Optimizations	Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog
Dimensions(W x D x H)	85.8×43.9×29.7 mm
Interfaces	1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data)
Button	Remote Reset Button
Power Status LEDs	Green
Input	100-240VAC, 50/60Hz
Output	24VDC, 0.5A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency	>84.29%
Certifications	CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Certification	CE, FCC, IC, RoHS, IP65
Package Contents	Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment	Operating Temperature: -40?~70? (-40?~158?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
