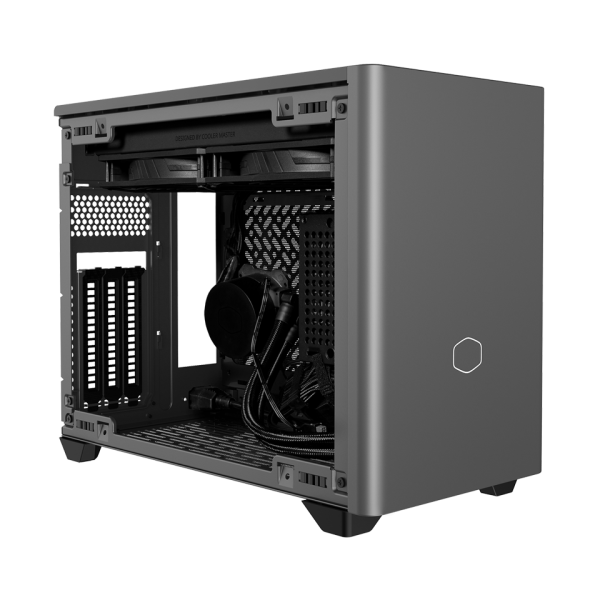

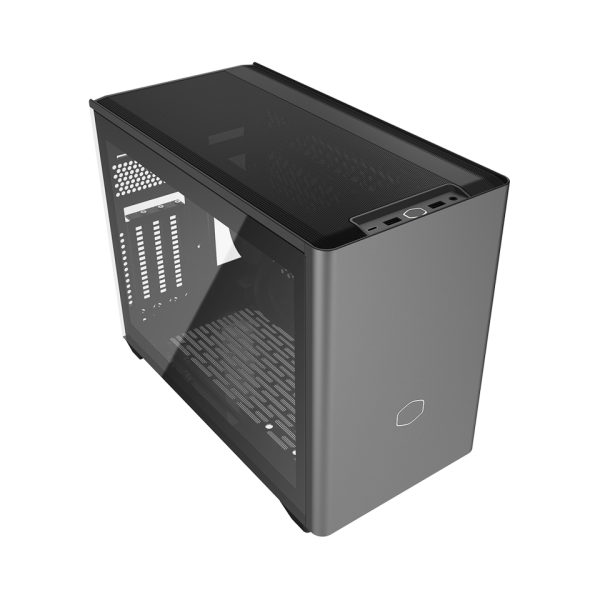

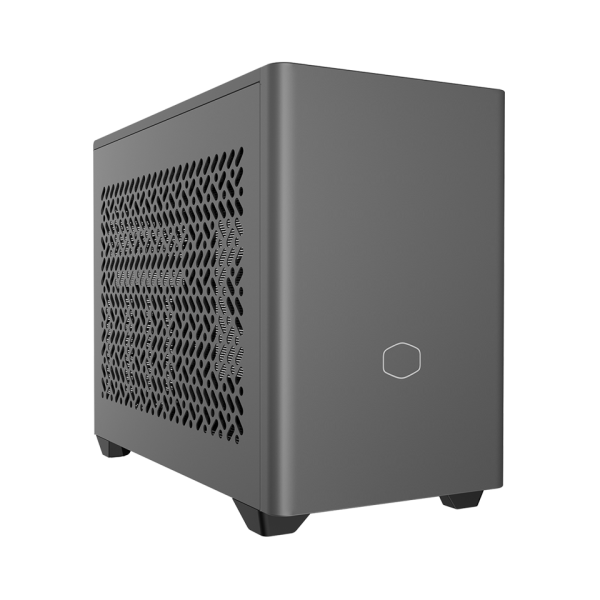

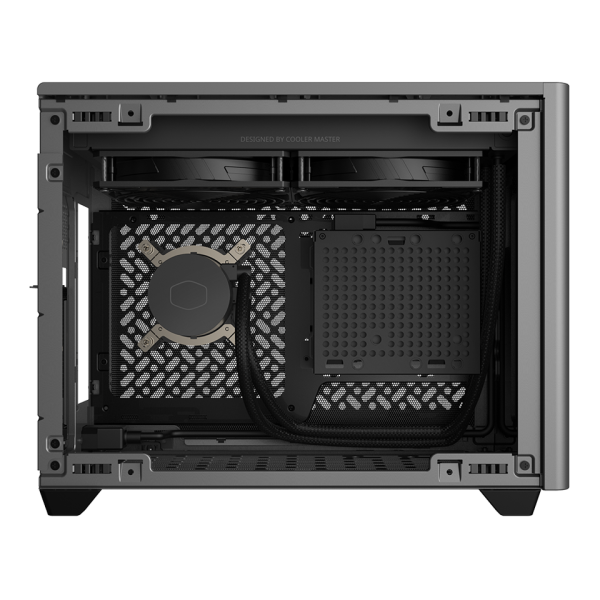

Cooler Master NR200P MAX V2 with 850W PSU + 280MM AIO ITX Case - Grey

SKU : NR200PV2-MCNN85-SL0
Brand : Cooler Master
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
Exterior Color: Grey, Materials - Exterior: SGCC Steel, Materials - Left Side Panel: Tempered Glass x1, Motherboard Support: Mini-ITX, Warranty: 02 Years Limited, NR200PV2-MCNN85-SL0.
Ask a question about this product
$532.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Cooler Master | Model # NR200PV2-MCNN85-SL0



The NR200P MAX V2 enhances GPU support capability up to 356.7mm and includes a GPU holder and a 12VHPWR power cable for the latest GPUs. Combined with tailor-made thermal and power delivery solutions, the NR200P MAX V2 comprehensively satisfies users' demands for a high-end ITX system with a 'ready-to-go' package
The NR200P MAX V2 is equipped with an 'Ncore-patterned' side steel panel. This upgrade assists the system in increasing ventilation, ensuring that power-hungry builds stay cool and run more efficiently. Additionally, the edge-to-edge tempered glass panel provides a premium aesthetic.
Next-gen systems are becoming more and more power-hungry and to power it all, NR200P MAX V2 implements an ATX 3.0 850W Gold-certified PSU with custom-length textured cables specifically designed to cover all performance needs.A 280mm radiator, two pre-installed SickleFlow PWM 140mm fans and Cooler Master's highly acclaimed 3rd generation pump/CPU block provide reliable cooling for the CPU. AMD sockets up to AM4 and AM5 and Intel sockets up to LGA1700 are fully supported.



Features:

  • The NR200P MAX V2 supports triple-slot GPUs up to 357.6mm in length and 160mm in height. Additionally, this chassis has been specifically designed for vertically mounted GPUs to ensure powerful performance.
  • NR200P MAX V2 provides two dedicated 2.5” hard drive mounting locations. For extra storage, two optional 3.5” hard drive mounting locations may be available depending on hardware configuration.
  • NR200P MAX V2 comes equipped with a premium shielded PCIe Gen4 Riser Cable to ensure both maximum compatibility and performance with all graphics cards.
  • NR200P MAX V2’s built-in 280mm radiator boasts unmatched cooling efficiency owing to a 25% increase in aluminum fin surface area.



Overview:

  • Exterior Color: Grey
  • Materials - Exterior: SGCC Steel
  • Materials - Left Side Panel: Tempered Glass x1
  • Motherboard Support: Mini-ITX



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Exterior Color Grey
Materials - Exterior SGCC Steel
Materials - Exterior Mesh
Materials - Exterior ABS Plastic
Materials - Left Side Panel Tempered Glass x1
Materials - Left Side Panel Steel x1
Dimensions (L x W x H) 377 x 185 x 292mm (incl. Protrusions)
Dimensions (L x W x H) 360 x 185 x 274mm (excl. Protrusions)
Volume 18.25L
Motherboard Support Mini-ITX
Motherboard Support Max. size: 170 x 180mm
Expansion Slots 3
Drive Bays - 5.25" ODD 0
Drive Bays - 3.5" HDD 1 (Max. 2, remove bottom fan)
Drive Bays - 3.5" / 2.5" Combo 1
Drive Bays - 2.5" SSD 1 (Max. 2)
I/O Panel 2x USB 3.2 Gen 1 (USB 3.0)
I/O Panel 1x USB 3.2 Gen2 x 2 Type C
I/O Panel 1x 3.5mm Headset Jack (Audio + Mic)
Included Accessories 1x PCIe 4.0 x16 Riser Cable
Included Accessories 1x GPU Holder
Included CPU Cooling Solution 2 x 140mm SickleFlow PWM
Included CPU Cooling Solution 280mm radiator
Included CPU Cooling Solution Gen 3 Cooler Master Pump / CPU Block
Included Power Supply Unit V SFX Gold 850W ATX 3.0
Fan Support - Top 2 x 120mm / 2 x 140mm
Fan Support - Bottom 2 x 120mm (1x max 15mm, w/o 3.5" HDD at the bottom)
Radiator Support - Top 120 / 140 / 240 / 280mm
Clearances - CPU Cooler 67mm
Clearances - Power Supply 130mm
Clearances - Graphics Card Exceed front bracket: L: 357.6mm (incl. power connector), H: 160mm (incl. power connector), W: 73mm (triple slot)
Clearances - Graphics Card Not exceed front bracket: L: 334mm (incl. power connector), H: 160mm (incl. power connector), W: 80mm (triple slot)
Dust Filters Bottom
Dust Filters Left
Dust Filters Right
Dust Filters Top Panels
Power Supply Support SFX
Power Supply Support SFX-L
Size Mini ITX
