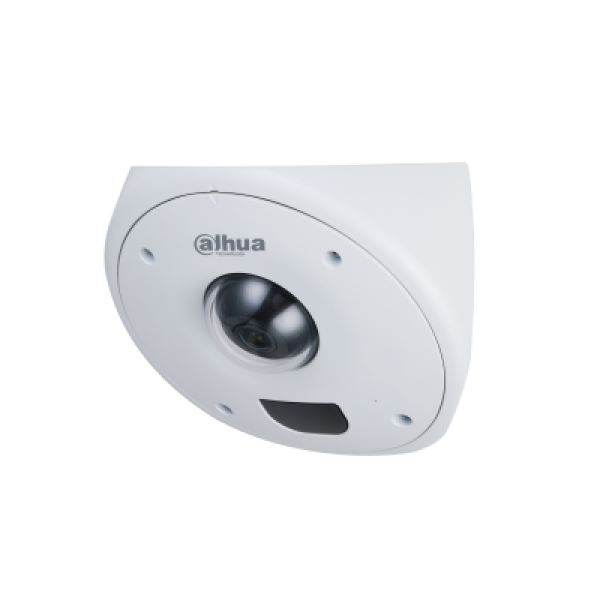

Dahua 4mp Ip Wdr Ir Corner Network Camera 2.5mm Icrivsip67poeir 10m DH-IPC-HCBW8442P-0250B

Name: Dahua 4mp Ip Wdr Ir Corner Network Camera 2.5mm Icrivsip67poeir 10m DH-IPC-HCBW8442P-0250B
Brand: Dahua
SKU: DH-IPC-HCBW8442P-0250B
Price: 615 AUD
Availability: InStock

SKU : DH-IPC-HCBW8442P-0250B

Brand : Dahua

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

Dahua DH-IPC-HCBW8442P-0250B 4mp Ip Wdr Ir Corner Network Camera, Sensor: 1/1.8Inch 4Megapixel progressive scan CMOS, H.265 and H.264 triple-stream encoding, 25/30 fps Resolution 2688 × 1520, WDR (140 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC, 2.5 mm fixed lens, distortion correction, Max. IR LEDs Length 10 m, Effective Pixels: 2688 (H) ×1520 (V). With advanced H.265 encoding technology, Dahua corner network camera has efficient encoding capacity, which helps to save bandwidth and storage space.

Ask a question about this product

$615.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Dahua | Model # DH-IPC-HCBW8442P-0250B

With advanced H.265 encoding technology, Dahua corner network camera has efficient encoding capacity, which helps to save bandwidth and storage space. The camera adopts starlight technology, intelligent IR technology, and intelligent image analysis technology; and has waterproof function, dust-proof function and vandal-proof function, complying to the standards of IP67 and IK10+50J.

Features:

1/1.8” 4Megapixel progressive scan CMOS
H.265 and H.264 triple-stream encoding
25/30 fps 2688 × 1520
WDR (140 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
2.5 mm fixed lens, distortion correction
1/1 Alarm in/out, 1/1 audio in/out
Max. IR LEDs Length 10 m
IP67 and IK10+50J protection

Overview:

Image Sensor: 1/1.8”4Megapixel progressive CMOS
Effective Pixels: 2688 (H) ×1520 (V)
ROM: 128 MB
RAM: 512 MB
Scanning System: Progressive

Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Image Sensor	1/1.8”4Megapixel progressive CMOS
Effective Pixels	2688 (H) ×1520 (V)
ROM	128 MB
RAM	512 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100000 s
Min. Illumination	0.004 Lux F2.0 (Color, 1/3 s, 30 IRE)
IR Distance	10 m (32.8 ft) (monitoring distance)
IR On/Off Control	Auto
IR LEDs Number	2
Pan/Tilt/Rotation Range	Vertical: -10 to +10 Degree Rotation: 0 to 355 Degree
Lens Type	Fixed
Mount Type	M12
Focal Length	2.5 mm
Max. Aperture	F2.0
Field of View	Horizontal: 135 Degree Vertical: 90 Degree
Iris Type	Fixed aperture
Close Focus Distance	0.4 m (1.3 ft)
General IVS Analytics	Abandoned object; moving object
Heat Map	Yes
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG
Smart Codec	H.264: Yes H.265: Yes
Video Frame Rate	50 Hz: Main Stream: 2688 × 1520 25 fps; sub stream: 704 × 576 25 fps; third stream: 704 × 576 25 fps Main Stream: 2688 × 1520 25 fps; sub stream: 704 × 576 25 fps; third stream: 1920 × 1080 11 fps 60 Hz: Main Stream: 2688 × 1520 30 fps; sub stream: 704 × 480 30 fps; third stream: 704 × 480 12 fps Main Stream: 2688 × 1520 30 fps; sub stream: 704 × 480 30 fps; third stream: 1920 × 1080 1 fps
Stream Capability	3 streams
Resolution	2688 × 1520; 2560 × 1440; 2304 × 1296; 2016 × 1512; 1080p (1920 × 1080); UXGA(1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF(352 × 288/352 × 240)
Bit Rate Control	CBR; VBR
Video Bit Rate	H.264: 32 Kbps–8192 Kbps H.265: 19 Kbps–8192 Kbps
Day/Night	ICR switch
BLC	Yes
WDR	140 dB
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control	Manual/Auto
Noise Reduction	3D DNR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest(RoI)	Yes (4 areas)
Electronic Image Stabilization(EIS)	Yes
Smart IR	Yes (Adjust by user)
Defog	Yes
Image Rotation	0/90/180/270 Degree
Mirror	Yes
Privacy Masking	4 areas
Built-in MIC	Yes
Audio Compression	G.711a; G.711Mu; G726; AAC
Network	RJ-45 (10/100 Base-T)
Protocol	HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP
Interoperability	ONVIF (Profile S/Profile G); CGI; Milstone; Genetec; P2P
Scene self-adaptation	Yes
User/Host	20 (Total bandwidth: 80 M.)
Edge Storage	FTP; NAS; Micro SD card (support max. 256 G)
Management Software	Smart PSS; DSS; P2P
Mobile Phone	IOS, Android
RS-485	1 (Baud rate range: 1200 bps–115200 bps)
Audio Input	1 channel (Terminal)
Audio Output	1 channel (Terminal)
Alarm Input	1 channel in: 5mA 3V–5V DC
Alarm Output	1 channel out: 300mA 12V DC
Power Supply	12V DC/PoE
Power Consumption	Basic power consumption: 3W (12V DC); 3.6W (PoE) Max. power consumption (ICR + IR full intensity): 9.5W (12V DC); 11.5W (PoE)
Operating Temperature	-30°C to +60°C (-22°F to +140°F)
Operating Humidity	0.95
Storage Temperature	-30°C to +60°C (-22°F to +140°F)
Ingress Protection	IP67; IK10+50J
Casing	Metal
Dimensions	209.4 mm × 212.0 mm × 103.1 mm (8.2" × 8.3" × 4.1") (L × W × H)
Net Weight	1365 g (3.0 lb)
Gross Weight	1465 g (3.2 lb)
