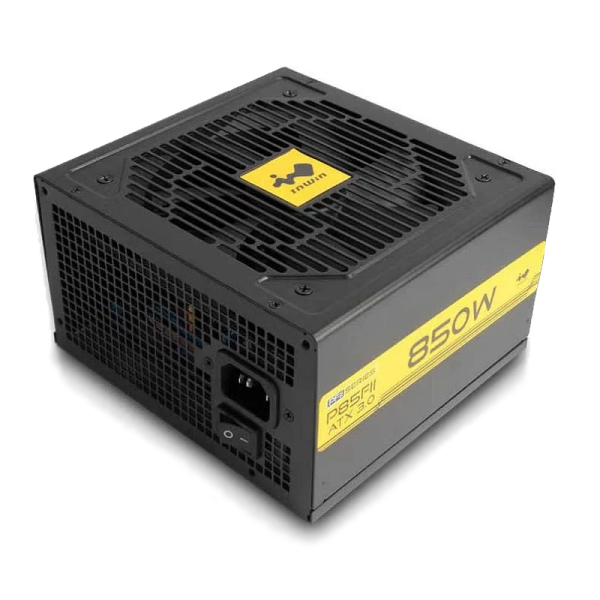

Inwin P85FII 850W Gold Fully Modular PCI-E Gen 5.0 Ready 5YR

SKU : IW-PS-PFII850W
Brand : InWin
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Total Power: 850W, Material: SECC, Type: ATX12V V3.0, Cable Management: Fixed Cables, PFC: Active PFC (> 0.95), 05 Years Limited Warranty, IW-PS-PFII850W.
Ask a question about this product
$133.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Inwin | Model # IW-PS-PFII850W



The PFII Series ATX 3.0 fully meets the newest generation of Intel’s PSDG (power supply design guide). This avoids potential system instability or power failure, provides better output stability, and allow users to game or work with peace of mind.



Features:

  • Includes PCI-E 5.0, 16-pin connector (12VHPWR) with high-quality 16AWG cable. Exclusive for next-generation high-performance graphics cards. Fully unleash your GPU’s powerful performance!
  • The PFII Series contains flat cables, which not only facilitates cable management, but also provides sufficient PCIe cables to meet various GPU connectors
  • The PFII Series ATX 3.0 is an 80 PLUS Gold certified power supply that delivers up to 90% conversion efficiency which can generate less heat, effectively lowering energy consumption and noise.
  • The PFII Series ATX 3.0 comes with plenty of safeguards against over-currents, over-and-under voltages, short circuits, over-heating and over-power. These precautions are to ensure quality and safe power usage.



Overview:

  • Total Power: 850W
  • Material: SECC
  • Type: ATX12V V3.0
  • Cable Management: Fixed Cables
  • PFC: Active PFC (> 0.95)



Manufacturer Warranty: 05 Years Limited Warranty

Technical Specifications

Total Power 850W
Material SECC
Type ATX12V V3.0
Cable Management Fixed Cables
PFC Active PFC (> 0.95)
Efficiency 80 PLUS Platinum(Up to 90%)
MTBF (Hours) > 100,000 hrs.
AC Input 100-240Vac, 12-6A, 50-60Hz
Fan 120mm Sleeve Bearing Fan
Typical Load Fan Noise (dBA) (50% Loading) < 25 dB(A)
Operating Temperature Range (°C) 0 - 40 °C
Full Protection OCP/ OVP/ UVP/ SCP/ OTP/ OPP
Safety Certifications cTUVus / TUV / CB / BSMI / CE / FCC / EAC / RCM / UACK
Dimensions (L x W x H) 140 x 150 x 86 mm
Net Weight 2.3 kg
Connector 24 Pin Motherboard: 1, 8 (4+4) Pin CPU: 2, 8 (6+2) Pin PCI-E: 4, PCI-E 5.0 12VHPWR: 1(450W), 4 Pin Peripheral: 3, SATA: 6, Floppy: 1.
