General Specs :- |
|
Part no. |
32D0064 |
Print Technology |
Black & White Laser Printer |
Function |
Copying
Colour Scanning
Printing
Network Scanning
Trusted Platform Module (TPM) |
Workgroup Size |
Large Workgroup |
Display |

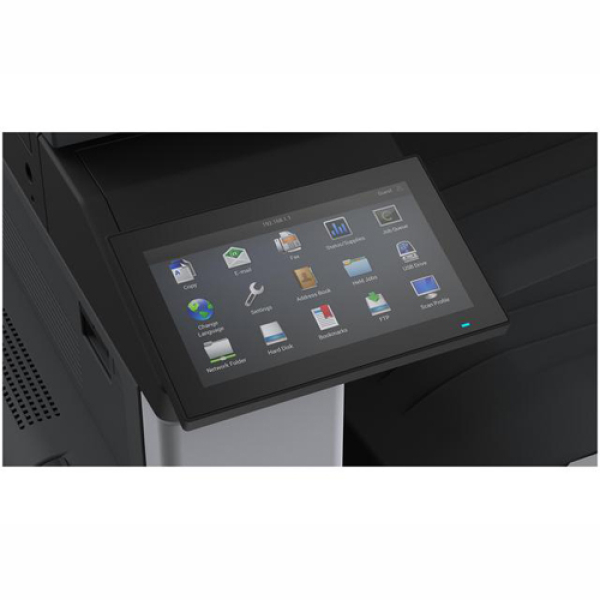

Lexmark e-Task 7-inch (17.8 cm) colour touch screen |
Media Sizes Supported |
A6, Oficio, 7 3/4 Envelope, JIS-B4, 9 Envelope, JIS-B5, A3, Ledger, A4, Legal, A5, Hagaki Card, Letter, B5 Envelope, C4 Envelope, Statement, C5 Envelope, Executive, DL Envelope, Folio, 10 Envelope |
Included Paper Handling |
100-Sheet Multipurpose Feeder, 400-Sheet Output Bin, 520-Sheet Tray |
Standard Ports |
Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), Rear USB 2.0 Specification Hi-Speed Certified port (Type A), USB 2.0 Specification Hi-Speed Certified (Type B) |
Size (mm - H x W x D) |
767.9 x 590 x 699.3 mm |
Weight |
53 kg |
Copying :- |
|
Copy Speed |
Up to:
Black: 35 cpm (A4) |
Copy Speed Duplex |
Up to:
Black: 35 spm (A4) |
Time to First Copy |
as fast as:
Black: 6.4 seconds |
Reduce / Enlarge Range |
25 - 400 % |
Printing :- |
|
Print Speed |
Up to:
Black: 35 ppm (A4) |
Print Speed Duplex |
Up to:
Black: 35 spm (A4) |
Time to First Page |
As fast as:
Black: 4.5 seconds |
Print Resolution |
Black: 1200 x 1200 dpi, 600 x 600 dpi, 1200 IQ (1200 x 600 dpi) |
Duplex |
2-sided:
Integrated Duplex |
Printable Area |
metric: 4.2 mm of the top, bottom, right and left edges (within) |
Scanning :- |
|
Scanner Type / ADF Scan |
Flatbed scanner with automatic document feeder
RADF (reversing Duplex) |
Scan Area |
mm:
297 x 432 mm (Maximum) |
A4/Ltr Simplex Scan Speed / Scan Speed (A4/Ltr |
Up to:
Black: 55/55 sides per minute
Colour): 55/55 sides per minute |
A4/Ltr Duplex Scan Speed / Duplex Scan Speed (A4/Ltr |
Up to:
Black: 27.5/27.5 sides per minute
Colour): 27.5/27.5 sides per minute |
Optical Scanning Resolution |
600 X 600 dpi |
Scan File Formats |
Send as:
TIFF, Archival PDF (A-1a, A-1b), Secure PDF, PDF, JPEG, JPG, Searchable PDF |
Scan Destinations |
e-mail, USB or Network connected computer, USB Flash drive, FTP |
ADF |
110-Sheet Automatic Document Feeder |
ADF Paper Input Capacity / ADF Paper Output Capacity |
Up to: 110 pages 75 gsm bond
Up to: 110 pages 75 gsm bond |
Paper Handling :- |
|
Media Types Supported |
Labels, Card Stock, Plain Paper, Envelopes, Glossy paper, Refer to the Paper & Specialty Media Guide |
Finishing Option |
Yes |
Number of Paper Inputs |
Standard: 2
Maximum: 6 |
Paper Input Capacity |
Standard: 620 pages 75 gsm bond
Maximum: 5140 pages 75 gsm bond
620 pages 75 gsm bond |
Paper Output Capacity |
Up to:
Standard: 400 pages 75 gsm bond
Maximum: 2000 pages 75 gsm bond |
Paper Weight Range Supported |
gsm:
60 - 256 gsm (Standard Tray)
60 - 216 gsm (Multipurpose Feeder) |
Finishing Functions |
Offset stacking, Stapling, Hole punching |
Optional Paper Handling |
520-Sheet Tray/Caster Cabinet, 520-Sheet Tray, Inline Stapler, Dual Catch Bin, Envelope Tray, 3 x 520-Sheet Tray/Caster, Staple Punch Finisher, 2520-Sheet Tandem Tray/Caster, Work table, 2000-Sheet Tray |
Recommended Monthly Page Volume |
4,000 - 20,000 pages |
Maximum Monthly Duty Cycle |
Up to:
150 000 pages per month |
A3 |
Yes |
Cartridges & Imaging :- |
|
Laser Cartridge Yields |
up to:
37,000-page Black Cartridge |
Imaging Unit Estimated Yield |
Up to:
81,500 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage |
Cartridge(s) Shipping with Product |
18,500-page Black Toner Cartridge |
Hardware :- |
|
Processor Speed |
Quad Core, 1.2 GHz |
Memory |
Standard: 4096 MB
Maximum: 4096 MB |
Hard Disk |
Intelligent Storage Drive included; Magnetic Hard Disk available |
Printer Languages |
Standard:
PCL 5, PCLm, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image |
Fonts and Symbol Sets |
2 PCL 5/6 bitmap fonts, 158 scalable PostScript fonts, For more information, refer to the Technical Reference., 89 scalable PCL 5/6 fonts, 5 PPDS bitmap fonts, 39 scalable PPDS fonts |
Touch Screen Display |
Yes |
Connectivity :- |
|
Direct USB |
Yes |
Ethernet Network |
Yes |
Network Protocol Support |
IPSEC w/ IPv4, IPSEC w/ IPv6, IPv6, IPv4, ICMP, TCP, IGMP, UDP |
Network Printing Methods |
Pull Printing, Microsoft Web Services WSD, Enhanced IP (Port 9400), IPP 1.0, 1.1, 2.0 (Internet Printing Protocol) |
Network Management Protocols |
DHCP, APIPA (AutoIP), mDNS, BOOTP, WINS, DDNS, DNS, ARP |
Network Security |
SSL Cipher Configuration, SNMPv3, Certificate Management, TCP Restricted Server List, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS, IPSEC Support (IPv4/IPv6), TCP/UDP Port Access Control, Security Port Lockdown |
Optional Network Ports |
Marknet N8372 WiFi Option |
Supported Operating Systems :- |
|
Microsoft Windows Operating Systems Supported |
Windows Server 2008 x64 running Terminal Services, Windows 11, Windows Server 2008 x64, Windows Server 2008 running Terminal Services, Windows Server 2022, Windows Server 2008, Windows 8 x64, Windows Server 2012, Windows Server 2003 x64, Windows RT, Windows Server 2003, Windows Server 2012 R2, Windows Server 2003 x64 running Terminal Services, Windows 8.1 x64, Windows Server 2003 running Terminal Services, Windows 10, Windows 8.1, Windows Server 2008 R2 running Terminal Services, Windows 8, Windows 2000 Server running Terminal Services, Windows Server 2008 R2, Windows 7 x64, Windows Server 2016, Windows XP x64, Windows Me, Windows XP, Windows Vista x64, Windows 2000, Windows Server 2019, Windows NT (4.00/4.00 Server), Windows Vista, Windows 98 2nd Edition, Windows 7 |
Apple Operating Systems Supported |
Support is provided through AirPrint and AirScan only |
Android Operating System Support |
Support is provided through Mopria® Print Service and Mopria Scan. |
Linux Operating Systems Supported |
openSUSE Linux 15, Debian GNU/Linux 9.5, Debian 9.4, Debian GNU/Linux 9.6, Debian GNU/Linux 8.11, Ubuntu 16.04, 18.04 LTS, openSUSE Linux 42.3, Red Hat Linux 7.5, 7.6, Fedora 27, 28, 29 |
Citrix MetaFrame |
Microsoft Windows Server 2008 R2 Standard Edition running Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2003 and 2003 X64 Edition with Citrix XenApp 5.0, Microsoft Windows Server 2008 R2 Enterprise Edition running Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2012 R2 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, Microsoft Windows Server 2012 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, Microsoft Windows Server 2012 Essentials running Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2012 Foundation running Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2008 R2 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, Microsoft Windows Server 2008 and 2008 X64 Edition with Citrix XenApp 5.0, Microsoft Windows Server 2012 Standard running Citrix XenApp 6.0, 6.5 |
Novell Operating Systems Supported |
Novell Open Enterprise Server 2 (SP3) on SuSE Linux Enterprise Server 10 SP4 (x86 and x64) 3, Novell Open Enterprise Server 11 (SP3) on SuSE Linux Enterprise Server 11 SP4 (x86 and x64), Novell NetWare 6.5 Open Enterprise Server, Novell Open Enterprise Server 15 (SP1) on SuSE Linux Enterprise Server 11 SP4 (x86 and x64), Novell Open Enterprise Server 11 (SP3) on SuSE Linux Enterprise Server 12 SP1 (x86 and x64) |
Electrical & Operation :- |
|
ENERGY STAR |
Yes |
ENERGY STAR Typical Electricity Consumption |
TEC:
0.52 kilowatt-hours per week |
Noise Level |
Operating:
15 dBA (Idle)
51 dBA (Print)
56 dBA (Copy)
55 dBA (Scan) |
Duplex Print Noise Level |
Operating:
51 dBA |
Average Power |
0.2 watts (Hibernate Mode)
1.1 watts (Sleep Mode)
87 watts (Ready Mode)
455 watts (Printing) |
Specified Operating Environment |
Humidity: 8 to 80% Relative Humidity
Altitude: 0 - 2500 metres
Temperature: 10 to 32°C (50 to 90°F) |
Product Certifications |
ENERGY STAR, ICES-003 Class A, BSMI Class A, VCCI Class A, FCC Class A, NOM-032, UL, cUL, NOM, US FDA/CDRH, IEC 60825-1, CB Report, ISO-532B, CE (EU) DoC, EFTA (CE), KC logo, CCC, C-tick DoC, EuP, CECP, CEL, EC 1275/2008, ECMA-370, TED, SII, TER, SABS, UL-AR, GS Mark, Green Dot, ISO-9296, COC, CCD-035 EcoLogo, Green Mark, EPEAT, China Green Product (CGP), Mopria Certified |
|
|
