| Security :- |
|
| Network Security |
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner |
| Guest Network |
1x 5 GHz Guest Network
1x 2.4 GHz Guest Network |
| VPN Server |
OpenVPN
PPTP
L2TP |
| VPN Client |
OpenVPN
PPTP
L2TP |
| WiFi Encryption |
WPA3*
WPA2
WPA
WPA/WPA2-Enterprise (802.1x) |
| Wireless :- |
|
| Standards |
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds |
AX6000
5 GHz: 4804Mbps (802.11ax, HE160)
2.4 GHz: 1148 Mbps (802.11ax) |
| WiFi Range |
3+ Bedroom Houses
4x Dual-Band High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage |
| WiFi Capacity |
High
Dual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
8 Streams
Connect your devices to more bandwidth |
| Working Modes |
Router Mode
Access Point Mode |
| Hardware :- |
|

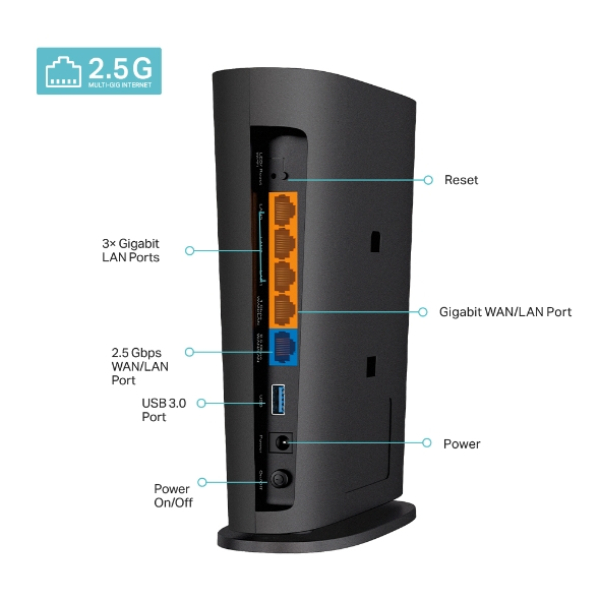

| Ethernet Ports |
1x 2.5 Gigabit WAN/LAN Port
1x Gigabit WAN/LAN Port
3x Gigabit LAN Ports |
| USB Support |
1x USB 3.0 Port
USB Sharing:
FTP Server
Media Server
Samba Server |
| Buttons |
LED On/Off and Wi-Fi On/Off Combo Button
WPS Button
Power On/Off Button
Reset Button |
| Power |
12 V/2 A |
| Software :- |
|
| Protocols |
IPv4
IPv6 |
| Service Kits |
HomeShield |
| OneMesh |
OneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
| Parental Controls |
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports |
| WAN Types |
Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
| Quality of Service |
QoS by Device |
| Cloud Service |
Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS |
| NAT Forwarding |
Port Forwarding
Port Triggering
DMZ
UPnP |
| IPTV |
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
| DHCP |
Address Reservation
DHCP Client List
Server |
| DDNS |
TP-Link
NO-IP
DynDNS |
| Management |
Tether App
Webpage |
| Other :- |
|
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) |
| Certifications |
CE, RoHS, JPA JRF VCCI |
| Environment |
Operating Temperature: 0°C~40°C (32°F ~104°F)
Operating Humidity: 10%~90% non-condensing |
| Test Data :- |
|
| WiFi Transmission Power |
CE:
<23dBm (5.15GHz~5.35GHz)
<30dBm (5.47GHz~5.71GHz)
<20dBm (2.4GHz) |
| WiFi Reception Sensitivity |
2.4 GHz:
11ac VHT20 MCS0: -96dBm, 11ac VHT20 MCS8: -73dBm,
11ac VHT40 MCS0: -94dBm, 11ac VHT40 MCS9: -68dBm,
11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -66dBm,
11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -63dBm
5 GHz:
11ac VHT20 MCS0: -94dBm, 11ac VHT20 MCS8: -70dBm,
11ac VHT40 MCS0: -91dBm, 11ac VHT40 MCS9: -67dBm,
11ac VHT80 MCS0: -88dBm, 11ac VHT80 MCS9: -63dBm,
11ax HE20 MCS0: -94dBm, 11ax HE20 MCS11: -64dBm,
11ax HE40 MCS0: -91dBm, 11ax HE40 MCS11: -61dBm,
11ax HE80 MCS0: -88dBm, 11ax HE80 MCS11: -58dBm,
11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -55dBm |
| Physical :- |
|
| Dimensions (W×D×H) |
7.9 x 7.4 x 2.3 in (200 x 189 x 59 mm) |
| Package Contents |
Wi-Fi Router Archer AX80
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
