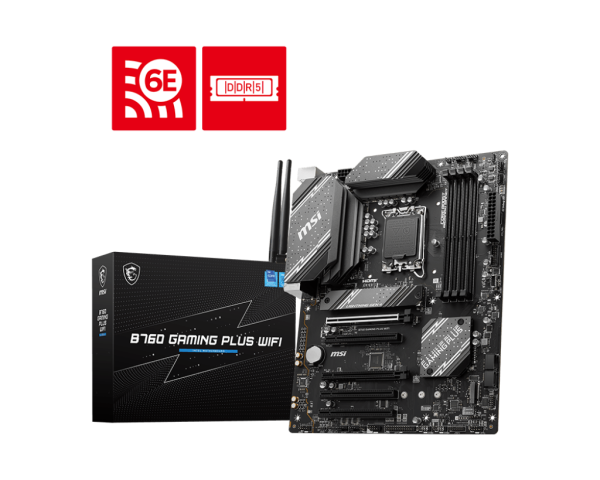

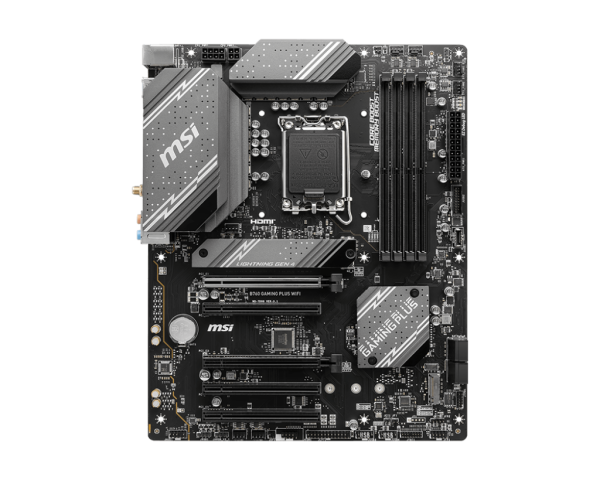

MSI B760-PLUS WIFI DDR5 LGA 1700 ATX Motherboard MSI B760-PLUS WIFI DDR5 LGA 1700 ATX Motherboard MSI B760-PLUS WIFI DDR5 LGA 1700 ATX Motherboard

MSI B760-PLUS WIFI DDR5 LGA 1700 ATX Motherboard

SKU : B760 GAMING PLUS WIFI
Brand : MSI
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
Chipset: Intel B760, RAM Capacity: upto 192GB (48GB each), DIMM Slots: 4, Form Factor: ATX, Dimensions: 243.84 x 304.8mm.
Ask a question about this product
$295.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # MSI | Model # B760 GAMING PLUS WIFI



Msi B760 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.



Features:

  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection



Overview:

  • Chipset: Intel B760
  • RAM Capacity: upto 192GB (48GB each)
  • DIMM Slots: 4
  • Form Factor: ATX
  • Dimensions: 243.84 x 304.8mm



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

General

Chipset A chipset is an electronic component in an integrated circuit known as a "Data Flow Management System" that manages the data flow between the processor, memory and peripherals.
Intel B760
Socket A CPU socket or CPU slot contains mechanical components providing mechanical and electrical connections between a processor and PCB. This allows for placing the CPU without soldering.
LGA 1700
Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
BIOS Basic Input/Output System, also known as the System BIOS is firmware used to provide runtime services for operating systems and programs to perform hardware initialization during the booting process.
1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.5
Multi-language
Unique Features
Mystic light
Ambient Link
Frozr AI Cooling
User Scenario
True Color
Live Update
Hardware Monitoring
All Aluminum Design
Extended Heatsink Design
Memory Boost
Lightning Gen 4 PCI-E / M.2 Slot
PCI-E Steel Armor
EZ DEBUG LED
EZ LED Control
Mystic Light Extension (RGB)
Mystic Light Extension (A-RAINBOW V2)
Ambient Link

Memory

RAM Capacity The total memory that can be added to a computer depends on the address registers built into the CPU.
upto 192GB (48GB each)
DIMM Slots DIMM (dual in-line memory module) slots are the place on your motherboard where the RAM goes.
4
RAM Frequency Supports RAM frequency is measured in MHz and usually immediately follows the DDR version in the RAM spec.
DDR5 6800+(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) MHz non-ECC, un-buffered memory

Onboard Graphics

With HDMI
1x HDMI
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
With DisplayPort
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz

Wireless Communication

Wi-Fi Wi-Fi is a wireless networking technology that allows devices such as computers, mobile devices, and other equipments to interface with the Internet.
Intel Wi-Fi 6E
Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth Bluetooth is a wireless technology that enables the exchange of data between devices using wavelength.
5.3

Slots And Ports

Expansion Slots An expansion slot is a socket on the motherboard that is used to insert an expansion card, which provides additional features to a computer such as video, sound, graphics, ethernet or memory.
5x PCI-E x16
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
Internal I/O Connectors An I/O (Input/Output) port is a socket on a computer that a cable is plugged into. The port connects the CPU to a peripheral device via a hardware interface or to the network via a network interface.
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x TBT connector (JTBT, supports RTD3)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports

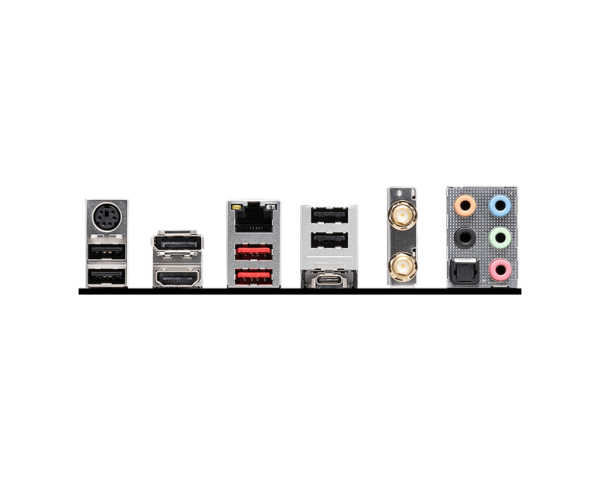

Back Panel Connectors The back or rear panel is the portion of the motherboard that allows you to connect external devices, such as your monitor, speakers, keyboard, mouse etc.
1x PS/2 port
4x USB 2.0 Type-A ports (From B760 chipset)
1x DisplayPort
1x HDMI port
1x 2.5G LAN (RJ45) jack
2x USB 3.2 Gen 2 10Gbps Type-A ports (From B760 chipset)
1x USB 3.2 Gen 2 10Gbps Type-C port (From B760 chipset)
2x Wi-Fi Antenna connectors
5x Audio jacks
1x Optical S/PDIF OUT connector

Software

Operating System Supports An operating system (OS) is system software that manages computer hardware, software resources, and provides common services for computer programs.
Support for Windows 11 64-bit, Windows 10 64-bit
Bundled Software
Drivers
MSI Center
Intel Extreme Tuning Utility
MSI App Player (BlueStacks)
CPU-Z MSI GAMING
Norton 360 Deluxe
AIDA64 Extreme - MSI Edition

Physical

Form Factor The motherboard's form factor indicates the shape and size specifications of the board.
ATX
Dimensions
243.84 x 304.8mm
