Product Description

Manufacture # MSI | Model # MPG B760I EDGE WIFI DDR5

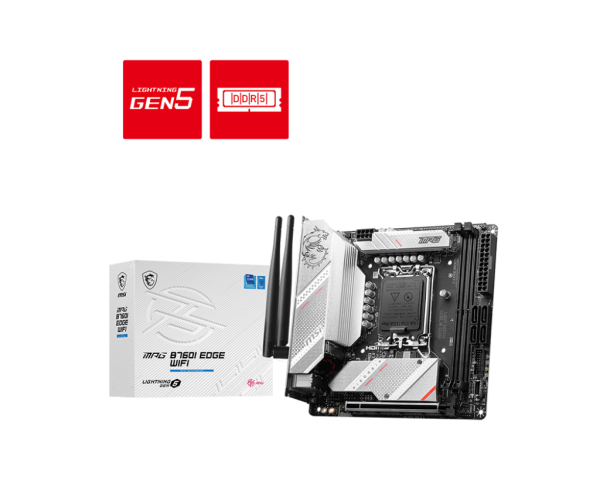

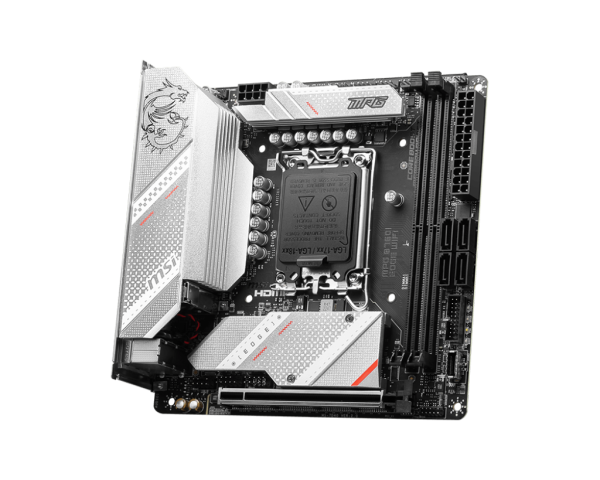

MPG B760I EDGE WIFI employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful.

Features:

Supports DDR5 Memory, up to 7200+(OC) MHz
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
Enhanced Power Design: Direct 8+1+1 phases power, Core Boost, Memory Boost
Premium Thermal Solution: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 8-layer PCB made by server grade level material
Pre-installed I/O Shield: Better EMI protection and more convenience for installation

Overview:

Chipset: Intel B760
Raid: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
LAN: Realtek RTL8125BG 2.5Gbps LAN
Audio: Realtek ALC897 Codec 7.1-Channel USB High Performance Audio
Led Feature: 4x EZ Debug LED
Operating System: Support for Windows 11 64-bit, Windows 10 64-bit

Manufacturer Warranty: 03 Years Limited Warranty

Write Review

Reviews

Write Review

Reviews

Be the first to write a review

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

Chipset	Intel B760
Cpu Support	Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Memory	2x DDR5, Maximum Memory Capacity 96GB Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Onboard Graphics	1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz*
Expansion Slot	1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices 4x SATA 6G
Raid	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 2x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front)
LAN	Realtek RTL8125BG 2.5Gbps LAN
Wireless / Bluetooth	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio	Realtek ALC897 Codec 7.1-Channel USB High Performance Audio
BIOS	1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.5 Multi-language
Special Features	Gaming Mode Smart Priority Game Highlights Mystic Light Ambient Link Frozr AI Cooling User Scenario M.2 Shield Frozr Extended Heatsink Design Fan headers (CPU + PUMP + SYSTEM) K7 MOSFET thermal pad Extra choke pad Audio Boost 2.5G LAN Intel WiFi 6E Mystic Light Extension (ARGB V2/ RGB) Mystic Light Sync Ambient Link EZ Debug LED Lightning Gen 5 PCI-E Slot Lightning Gen 4 M.2 Core Boost USB 3.2 Gen 2 PCI-E Steel Armor Memory Boost Front USB Type-C Pre-installed I/O Shield Server Grade PCB 2oz Copper thickened PCB
Internal I/O	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
Led Feature	4x EZ Debug LED

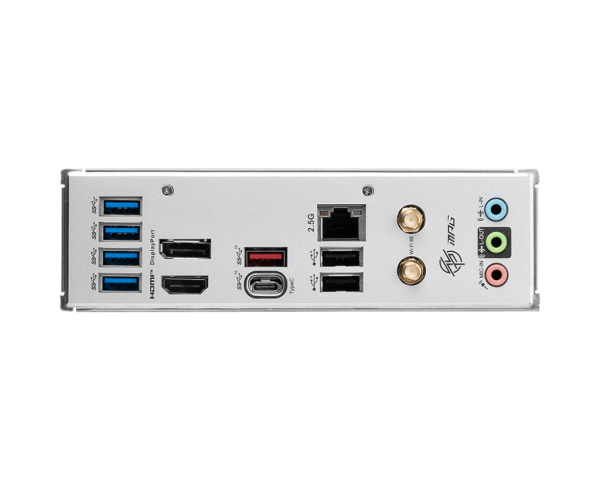

Back Panel Ports	4x USB 3.2 Gen 1 5Gbps Type-A ports 1x DisplayPort 1x HDMI port 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 2 10Gbps Type-A port 2x USB 2.0 Type-A ports 1x 2.5G LAN (RJ45) port 2x Wi-Fi Antenna connectors 3x audio jacks
Operating System	Support for Windows 11 64-bit, Windows 10 64-bit
PCB Dimension	Mini-ITX 170mmx170mm
