| User Interface Features |
Gesture-based, multitouch-capable touchscreen
7” color LCD (1024 x 600 pixel)
16:9 aspect ratio Screensaver
On-screen virtual keyboard
Voicemail support
Adjustable base height
One USB type-A port (2.0 compliant) for media and storage applications
One USB Type-C port (2.0 compliant) for media and storage applications
Integrated Bluetooth 4.2
Integrated Wi-Fi
Unicode UTF-8 character support
Adjustable font size selection (regular, medium, large)
Normal and dark mode
Multilingual user interface including Chinese, Danish, Dutch, English (Canada/ US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, and Swedish |
| Audio Features |
HD Voice technology delivers lifelike voice quality for each audio path: handset, hands-free speakerphone, and optional headset
Acoustic Clarity technology providing full duplex conversations, acoustic echo cancellation, and background noise suppression
TIA-920 wideband audio, type 1 compliant (IEEE 1329 full duplex)
Frequency response—100 Hz–20 kHz for handset, optional headset, and handsfree speakerphone modes
Codecs: G.711 (A-law and μ-law), G.729AB, G.722 (HD Voice), G.722.1 iLBC
Individual volume settings with visual feedback for each audio path
Voice activity detection
Comfort noise generation
DTMF tone generation (RFC 2833 and in-band)
Low-delay audio packet transmission
Adaptive jitter buffers
Packet loss concealment
OPUS support |
| Headset And Handset Compatibility |

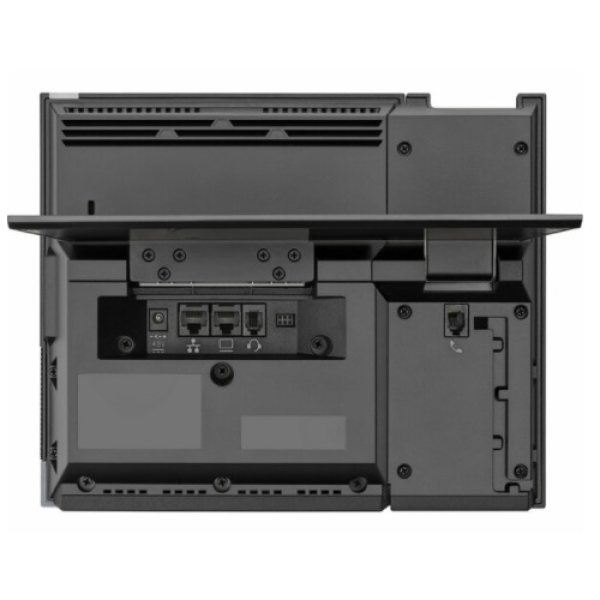

Dedicated RJ-9 headset port
Hearing aid compatibility to ITU-T P.370 and TIA 504A standards
Compliant with ADA Section 508 Subpart B 1194.23 (all)
Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids
Compatible with commercially-available TTY adapter equipment
USB headset support
Bluetooth headset support |
| Network And Provisioning |
SIP protocol support
SDP
IETF SIP (RFC 3261 and companion RFCs)
Two-port gigabit Ethernet switch 10/100/1000 Base-TX across LAN and PC ports
Wi-Fi network connectivity–2.4-2.4835 GHz (802.11b, 802.11g, 802.11n HT-20)- 5.15-5.825 GHz (802.11a, 802.11n, HT-20, 802.11n HT-40)
Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment
Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation
Manual or dynamic host configuration protocol (DHCP) network setup
Time and date synchronization using SNTP
FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments
Provisioning and call server redundancy supported *
QoS Support—IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DHCP
VLAN—CDP, DHCP VLAN discovery, LLDPMED for VLAN discovery - Network address translation support for static configuration and “keep-alive”
SIP signaling
RTCP and RTP support
Event logging
Syslog
Hardware diagnostics
Status and statistics reporting
IPv4 and IPv6
TCP
UDP
DNS-SRV |
| Security |
802.1X authentication and EAPOL media encryption via SRTP
Transport layer security (TLS)
Encrypted configuration files
Digest authentication
Password login
Support for URL syntax with password for boot server address
HTTPS secure provisioning
Support for signed software executables
Wi-Fi encryption: WEP, WPA-Personal, WPA2-Personal, WPA2-Enterprise with 802.1X (EAP-TLS, PEAP-MSCHAPv2) |
| Power |
Built-in auto sensing IEEE 802.3at Power over Ethernet (Class 4) 25 W (Max)
External universal AC/DC adapter (optional), 48 VDC @ 0.52A (25 W) |
| Regulatory Approvals |
Argentina ENACOM
Australia RCM
Brazil ANATEL
Canada ICES and NRTLC
China CCC and SRRC
EEA CE Mark
Eurasian Customs Union EAC
India WPC
Indonesia SDPPI
Israel MOC
Japan MIC & VCCI
Malaysia SIRIM
Mexico IFETEL and NYCE
NZ Telepermit
Saudi Arabia CITC
Singapore IMDA
South Africa ICASA
South Korea KC
Taiwan NCC
UAE TRA
USA FCC and NRTL
Planned compliance |
| Radio |
USA–FCC Part 15.247 & FCC Part 15.407
Canada–RSS 247 Issue
EU–ETSI EN 300 328 & ETSI EN 301 893
Japan–Article 2.1 Item 19-2 and 19-3
Australia–AS/NZ4268 |
| Safety |
UL 62368-1
CAN/CSA C22.2 No. 62368-1-14
EN 62368-1
IEC 60950-1 and IEC 62368-1
AS/NZS 62368-1 |
| Emc |
FCC Part 15 Class B
ICES-003 Class B
EN 55032 Class B
EN 55024
EN 301 489-1 and EN 301 489-3 and EN 301 489-17
CISPR32 Class B
VCCI Class B |
| Operating Conditions |
Temperature: 0 to 40 °C (+32 to 104 °F)
Relative humidity: 5% to 95%, noncondensing |
| Storage Temperature |
|

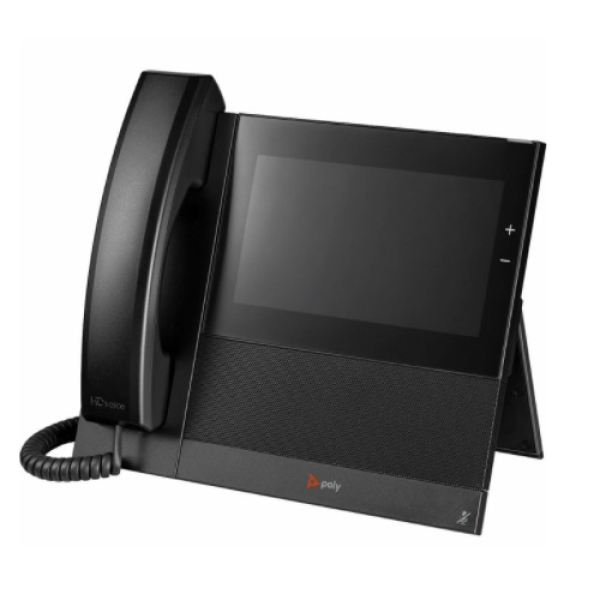

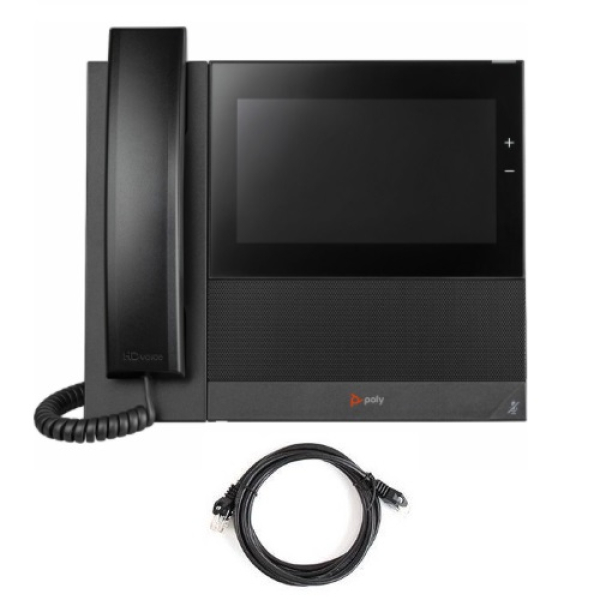

| Ccx 600 Business Media Phone Comes With |
Console
Handset with handset cord
Network (LAN) cable—CAT-5E
Desk stand
Setup sheet |
| Size |
26.3 cm x 21.7 cm x 6.0 cm WxHxD (10.4 in x 8.5 in x 2.4 in WxHxD) |
| Weight |
1.97 kg (4.34 lbs) |
| Master Carton Quantity |
Five (5) |
