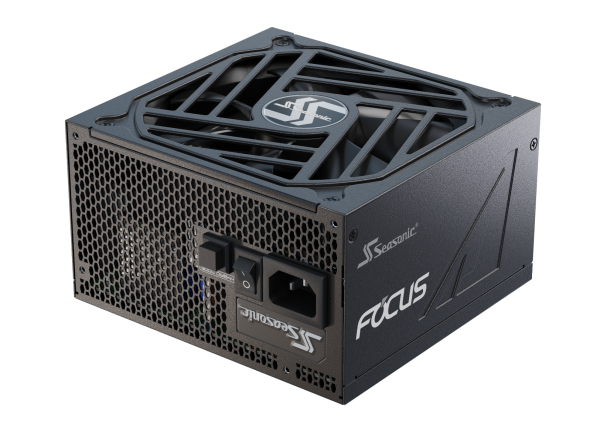

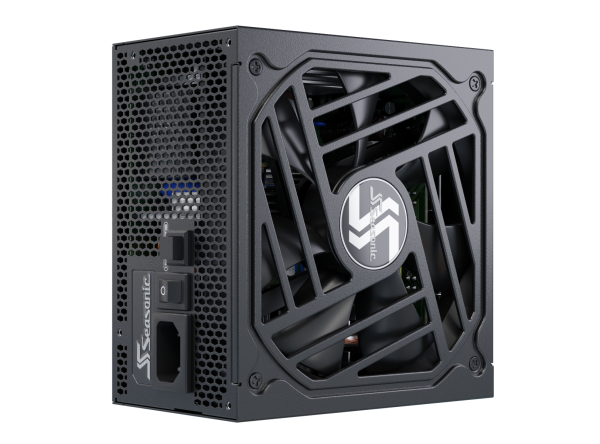

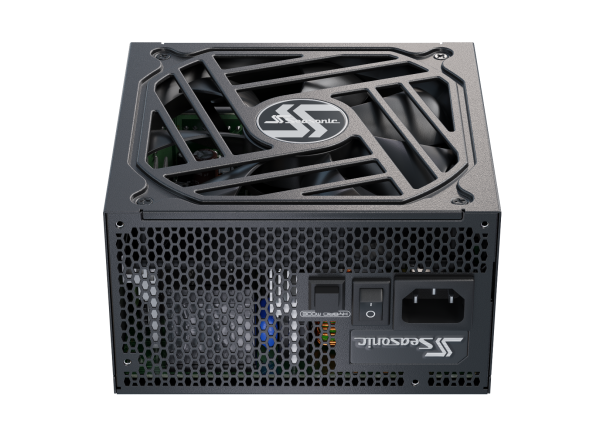

Seasonic FOCUS GX-850 ATX 3.0 850W Gold PSU

SKU : PSUSEAFOCUSGX850A3
Brand : Seasonic
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
80 PLUS: Gold, Form Factor: Intel ATX 12 V, AC Input: Full Range, Voltage: 100 V - 240 V, Current: 12 - 6 A, Frequency: 50 Hz - 60 Hz, Total Continuous Power: 850 W, 10 Years Limited Warranty, PSUSEAFOCUSGX850A3.
Ask a question about this product
$273.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Seasonic | Model # PSUSEAFOCUSGX850A3



Sleek and compatible with the most recent ATX 3.0 standard, the Seasonic FOCUS GX-850 ATX 3.0 850W Gold PSU PSUSEAFOCUSGX850A3 is an elite power supply unit (PSU). With a Gold 80 Plus accreditation and a continuous power delivery rating of 850W, it is highly efficient and produces very little heat. Additionally, the PSU has a fully modular cable design that simplifies wire management and maintains the neat appearance of your system.



Features:

  • ATX 3.0 and PCIe 5.0 Cable (12VHPWR)
  • 80 PLUS Gold certified
  • Compact Size - 140 mm deep
  • Top-Quality 135 mm FDB Fan
  • Digital Hybrid Fan Control
  • S3FC - Fanless until 30% load
  • Cable-free Connection Design
  • Tight Voltage Regulation
  • Gold plated connectors



Overview:

  • 80 PLUS: Gold
  • Form Factor: Intel ATX 12 V
  • AC Input: Full Range
  • Voltage: 100 V - 240 V
  • Current: 12 - 6 A
  • Frequency: 50 Hz - 60 Hz
  • Total Continuous Power: 850 W



Manufacturer Warranty: 10 Years Limited Warranty

Technical Specifications

80 PLUS Gold
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor Intel ATX 12 V
Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information :-
Fan Size 135 mm
Fan Control S3FC - Fanless until 30% load
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40°C, 15% - 65% RH
Cable Information :-
Modularity Fully Modular
Cable type Individual Black Cables with Braided Pattern
Electrical Features :-
Operating Temperature 0 - 50°C
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental :-
Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Power Output (AC Input) :-
Voltage 100 V - 240 V
Current 12 - 6 A
Frequency 50 Hz - 60 Hz
DC Output :-
Rail +3.3 V, +5 V, +12 V, -12 V, +5 VSB
Maximum Power 25 A
25 A
83 A
0.3 A
3 A
125 W
996 W
3.6 W
15 W
Total Continuous Power 850 W
