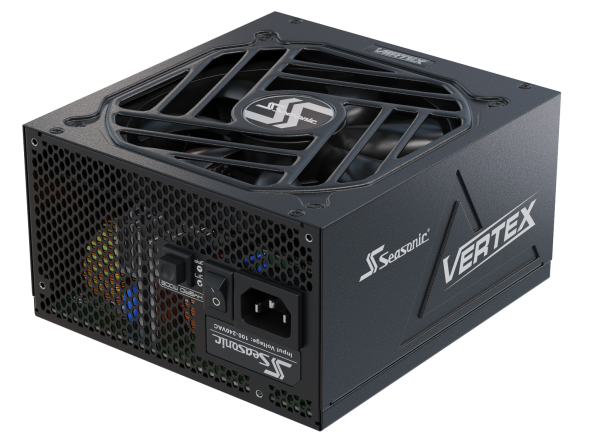

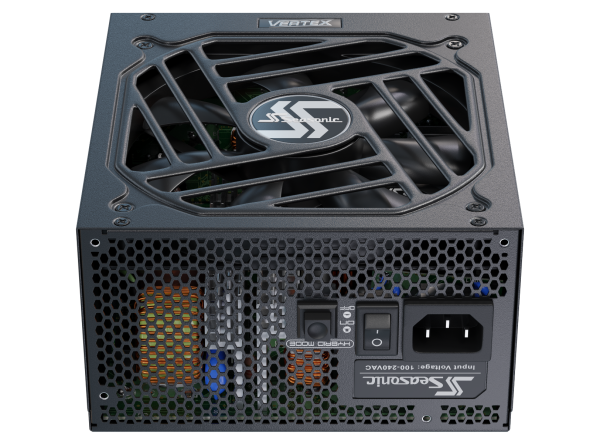

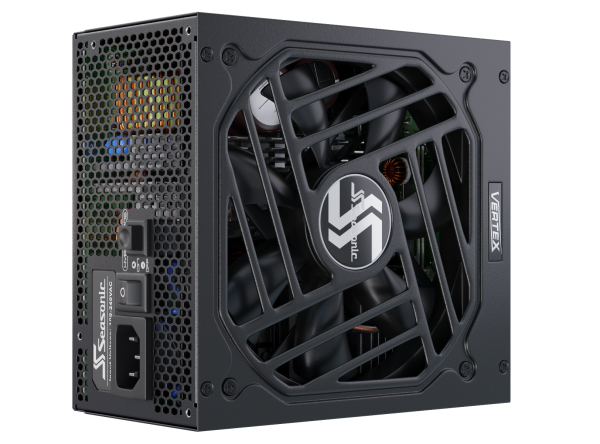

Seasonic VERTEX 750W (GX-750) 80 PLUS Gold Modular PSU ATX 3.0

Seasonic VERTEX 750W (GX-750) 80 PLUS Gold Modular PSU ATX 3.0

Name: Seasonic VERTEX 750W GX-750 80 PLUS Gold Modular PSU ATX 3.0
Brand: Seasonic
SKU: PSUSEAVERTEX750GX
Price: 285 AUD
Availability: InStock

SKU : PSUSEAVERTEX750GX

Brand : Seasonic

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

80 PLUS: Gold, Form Factor: Intel ATX 12 V, Fan Size: 135 mm, Voltage: 100 V - 240 V, Current: 10 - 5 A, Frequency: 50 Hz - 60 Hz, 10 Years Limited Warranty, PSUSEAVERTEX750GX.

Ask a question about this product

$285.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Seasonic | Model # PSUSEAVERTEX750GX

The Seasonic VERTEX 750W (GX-750) 80 PLUS Gold Modular PSU ATX 3.0 PSUSEAVERTEX750GX is a premium power supply unit (PSU). Its 80 PLUS Gold certification attests to its high efficiency and little power consumption. Additionally, because it is completely modular, you may only connect the connections you actually need, keeping your case neat and organized.

Features:

Super-High Efficiency, 80 PLUS Platinum Certified

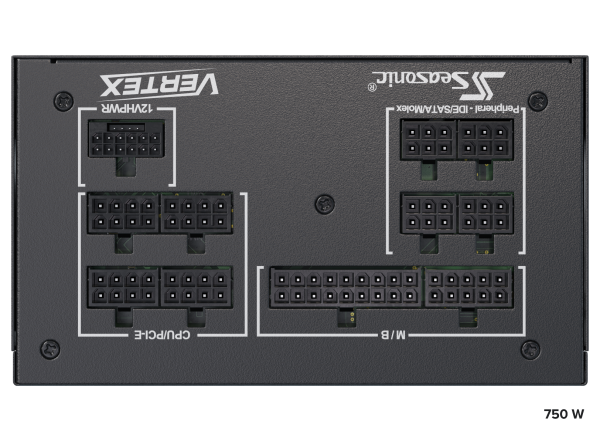

Fully Modular
ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)
Top-Quality 135 mm Fluid Dynamic Bearing Fan
Premium Hybrid Fan Control
Tight Voltage Regulation (12 V, 5 V and 3.3 V) [± 3 %]
Gold Plated High Current Terminal (MB, CPU and PCIe)

Overview:

80 PLUS: Gold
Form Factor: Intel ATX 12 V
Fan Size: 135 mm
Voltage: 100 V - 240 V
Current: 10 - 5 A
Frequency: 50 Hz - 60 Hz

Manufacturer Warranty: 10 Years Limited Warranty

Technical Specifications

80 PLUS	Gold
Cybenetics Efficiency Level	Platinum
Cybenetics Noise Level	Lambda A
Form Factor	Intel ATX 12 V
Dimensions	160 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information :-
Fan Size	135 mm
Fan Control	Digital Fan Control
Fan Bearing	Fluid Dynamic Bearing
Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information :-
Modularity	Fully Modular
Cable type	Flat black cables
Electrical Features :-
Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan	100,000 hours
AC Input	Full Range
Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental :-
Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Power Output (AC Input) :-
Voltage	100 V - 240 V
Current	10 - 5 A
Frequency	50 Hz - 60 Hz
DC Output :-
Rail	+3.3 V, +5 V, +12 V, -12 V, +5 VSB
Maximum Power	20 A 20 A 62 A 0.3 A 3 A 100 W 744 W 3.6 W 15 W
Total Continuous Power	750 W
