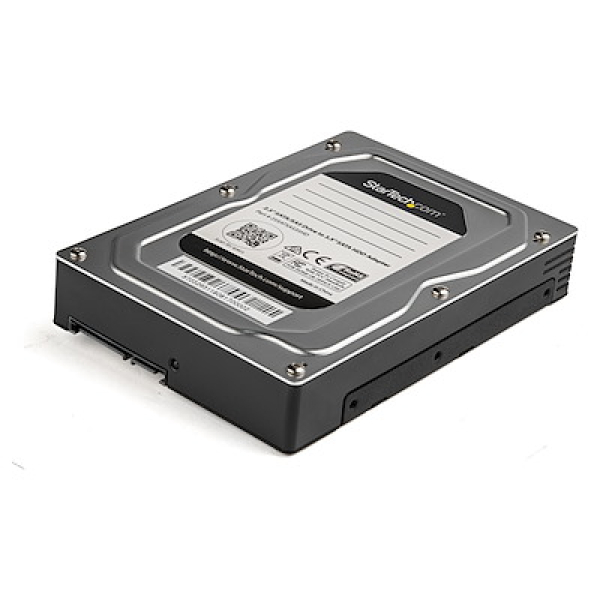

StarTech 2.5 to 3.5 Hard Drive Adapter - For SATA and SAS SSDs/HDDs 25SATSAS35HD

Name: StarTech 2.5 to 3.5 Hard Drive Adapter - For SATA and SAS SSDs/HDDs 25SATSAS35HD
Brand: StarTech
SKU: 25SATSAS35HD
Price: 60 AUD
Availability: InStock

SKU : 25SATSAS35HD

Brand : StarTech

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Color: Silver & Black, Material: Aluminum and Plastic, Type and Rate: SATA/SAS 6 Gbps, Drive Connectors: 1 - SFF-8482 (29 pin, Data & Power, Internal SAS), Host Connectors: 1 - SATA Data & Power Combo (7+15 pin), Drive Installation: Removable, Warranty: 02 Years Limited, 25SATSAS35HD.

Ask a question about this product

$60.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # StarTech | Model # 25SATSAS35HD

The 2.5" to 3.5" hard drive bay adapter lets you install a newer, higher performance drive such as an SSD into a legacy system that may only support a 3.5" hard drive. It provides a cost-efficient way to enhance storage performance and reliability without expensive upgrades to core IT systems. It's also ideal for system administrators who want to build a system that takes advantage of the increased performance of a 2.5" HDD/SSD.

Features:

Supports 2.5" form factor drives up to 15 mm in height
Installs into an internal or external 3.5" drive bay; uses standard mounting holes for internal installs
Tool-less 2.5" drive installation
Supports SATA I, II and III (up to 6Gbps) and SAS I and II (up to 6Gbps)

Overview:

Color: Silver & Black
Material: Aluminum and Plastic
Type and Rate: SATA/SAS 6 Gbps
Drive Connectors: 1 - SFF-8482 (29 pin, Data & Power, Internal SAS)
Host Connectors: 1 - SATA Data & Power Combo (7+15 pin)
Drive Installation: Removable

Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Connector(s)
Drive Connectors	1 - SFF-8482 (29 pin, Data & Power, Internal SAS)
Host Connectors	1 - SATA Data & Power Combo (7+15 pin)
Environmental
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20°C to 55°C (-4°F to 131°F)
Humidity	5% ~ 65%
Hardware
Interface	SATA SAS
Front Door Key Lock	No
Number of Drives	1
Drive Size	2.5in & 3.5in
Compatible Drive Types	SAS & SATA
Drive Installation	Removable
Number of 2.5 inch bays	1
Supported Drive Height(s)	7mm 9.5mm 12.5mm 15mm
Fan(s)	No
Packaging Information
Shipping (Package) Weight	9.7 oz [274.0 g]
Package Quantity	1
Package Length	6.3 in [16.0 cm]
Package Width	4.5 in [11.4 cm]
Package Height	1.3 in [3.4 cm]
Performance
TRIM Support	Yes
4Kn Support	Yes
S.M.A.R.T. Support	Yes
Type and Rate	SATA/SAS 6 Gbps
Hardware Raid Supported	No
Hot Swap Capability	Yes
Physical Characteristics
Color	Silver & Black
Material	Aluminum and Plastic
Product Length	5.7 in [14.6 cm]
Product Width	4.0 in [10.1 cm]
Product Height	1.0 in [2.6 cm]
Weight of Product	7.9 oz [224.0 g]
Power
Input Voltage	5V DC / 12V DC
Output Voltage	5 DC
Special Notes / Requirements
Note	Although mobile racks can enable a Serial Attached SCSI (SAS) drive to connect using a standard Serial ATA (SATA) connector, the drive controller must be SAS compatible to properly support SAS drives. SAS controllers can work with SAS and SATA drives, but most SAS drives will only work with a SAS controller.
What's in the Box
Included in Package	1 - Hard Drive Adapter 1 - Set of Mounting Hardware 1 - Quick-Start Guide
