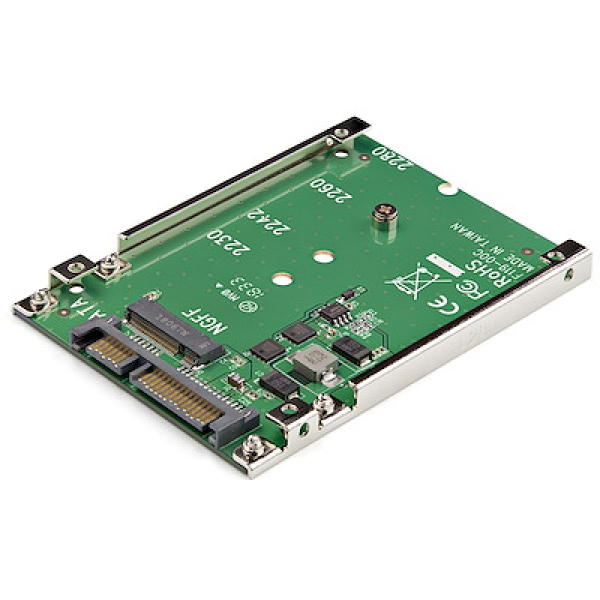

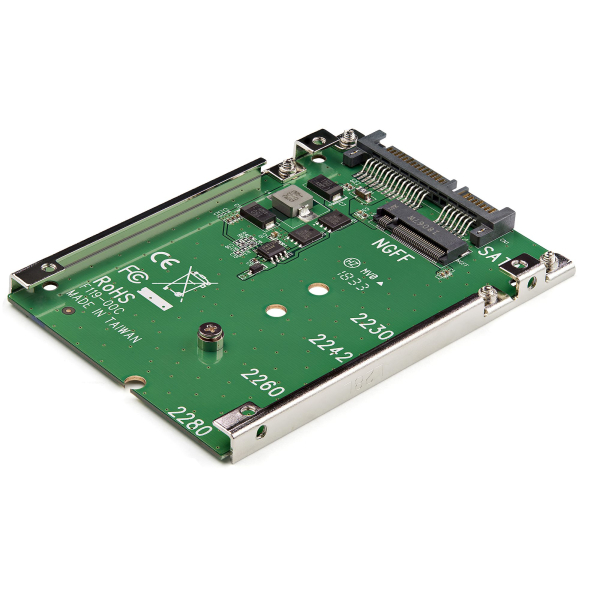

StarTech M.2 NGFF SSD to 2.5in SATA Adapter Converter SAT32M225

SKU : SAT32M225
Brand : StarTech
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
Color: Green, Drive Connectors: 1 - M.2 (SATA, B-Key, NGFF), Host Connectors: 1 - SATA Data & Power Combo (7+15 pin), Compatible Drive Types: M.2 (SATA, B-Key, NGFF), Type and Rate: SATA III (6 Gbps), OS Compatibility: OS independent; No software or drivers required, Warranty: 02 Years Limited, SAT32M225.
Ask a question about this product
$38.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # StarTech | Model # SAT32M225



Vastly increase the performance of your system by adding the speed of an M.2 SATA SSD in any 2.5" SATA application, with this M.2 SATA SSD to 2.5in SATA adapter.
Utilize the full potential of your SATA III controller, with an M.2 SATA SSD, reducing your data transfer bottleneck with file transfer speeds up to 6Gbps.This M.2 SATA NGFF to SATA adapter can also save you money by reducing your power consumption over regular platter drives.



Features:

  • Boost System Performance: Increase system performance by adding the speed of an M2 SSD in any 2.5" SATA application with the M2 SSD to 2.5in SATA Adapter; Open design maximizes heat dissipation to protect the health of your drive
  • Broad Compatibility: The M2 to SATA converter supports full length M2 SDD solid state drives and is compatible with other sizes including: 2230, 2242, 2260, and 2280;
  • Increased Transfer Speeds: Utilize the full potential of your SATA III controller with an M2 SSD, reducing your data transfer bottleneck with file transfer speeds up to 6Gbps; Operating Temperature: -40°F to 185°F; Supports B Key/M+B Key M2 SATA SSDs
  • Hassle-free Setup: This M2 hard drive adapter offers fast and easy setup with no drivers to install; Mounting hardware included with M2 SSD to SATA adapter; Supports 7mm or larger 2.5in SATA bays



Overview:

  • Color: Green
  • Drive Connectors: 1 - M.2 (SATA, B-Key, NGFF)
  • Host Connectors: 1 - SATA Data & Power Combo (7+15 pin)
  • Compatible Drive Types: M.2 (SATA, B-Key, NGFF)
  • Type and Rate: SATA III (6 Gbps)
  • OS Compatibility: OS independent; No software or drivers required



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Connector(s)
Drive Connectors 1 - M.2 (SATA, B-Key, NGFF)
Host Connectors 1 - SATA Data & Power Combo (7+15 pin)
Environmental
Operating Temperature -40°C to 85°C (-40°F to 185°F)
Hardware
Interface SATA
Number of Drives 1
Compatible Drive Types M.2 (SATA, B-Key, NGFF)
Drive Installation Fixed
Supported Drive Height(s) 2230
2242
2260
2280
Packaging Information
Package Height 1,3 in [3,2 cm]
Package Length 6,7 in [17,0 cm]
Shipping (Package) Weight 3,8 oz [108,0 g]
Package Width 5,7 in [14,4 cm]
Package Quantity 1
Performance
Maximum Data Transfer Rate 6 Gbps
Type and Rate SATA III (6 Gbps)
Hardware Raid Supported No
Hot Swap Capability No
General Specifications Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
Physical Characteristics
Weight of Product 1,3 oz [36,0 g]
Color Green
Product Length 3,9 in [10,0 cm]
Product Width 2,8 in [7,0 cm]
Product Height 0,3 in [0,7 cm]
Power
Input Voltage 5V DC / 12V DC
Output Voltage 5 DC
Software
OS Compatibility OS independent; No software or drivers required

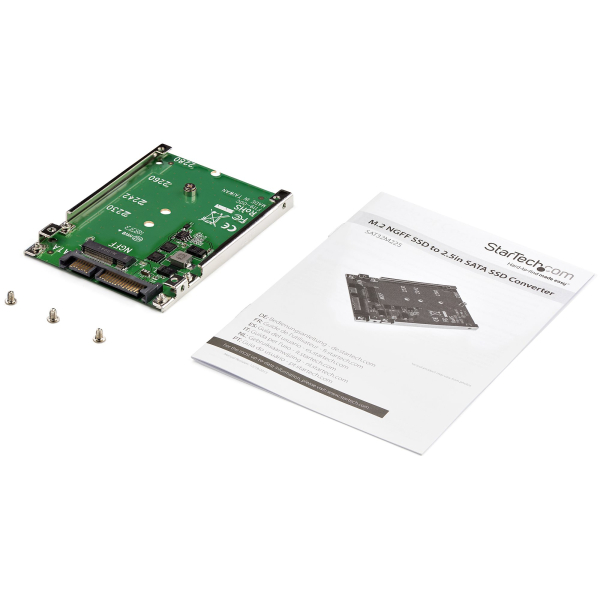

What's in the Box
Included in Package 1 - M.2 NGFF SSD to 2.5in SATA SSD Converter
1 - Mounting screw kit
1 - Installation manual
