Startech 4 Bay Hot Swap Mobile Rack Backplane (HSB4SATSASBA)

Name: Startech 4 Bay Hot Swap Mobile Rack Backplane HSB4SATSASBA
Brand: StarTech
SKU: HSB4SATSASBA
Price: 201 AUD
Availability: InStock

SKU : HSB4SATSASBA

Brand : StarTech

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

Startech 4 Bay Hot Swap Mobile Rack Backplane HSB4SATSASBA, 4 - Drive Connectors: SFF-8482 (29 pin, Data & Power, Internal SAS), 2 - Host Connectors: SATA Power (15 pin), 4 - Host Connectors: SATA (7 pin, Data), Interface: SATA / SAS, Front Door Key Lock: Yes, Number of Drives: 4, Drive Size: 3.5in, Compatible Drive Types: SAS & SATA, Drive Installation: Removable Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25" bays, with support for transfer speeds up to 6 Gbps. The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removin

Ask a question about this product

$201.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Startech | Model # HSB4SATSASBA

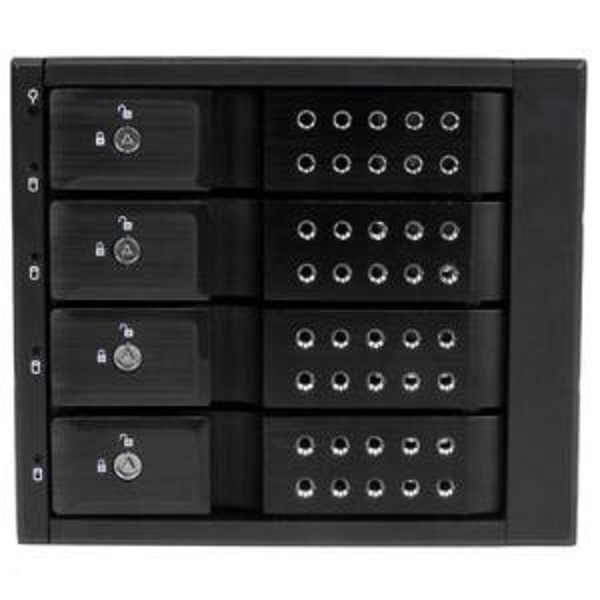

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD).

For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.

Features:

Solid aluminum construction
Key lock design
Built-in fan
4 drive bay design
Installs in three 5.25" drive bays
Trayless design for easier hot swapping
Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
Support for SAS revision I/II (3.0/6.0 Gbps)
Power and Activity LEDs for each drive

Overview:

4 - Drive Connectors: SFF-8482 (29 pin, Data & Power, Internal SAS)
2 - Host Connectors: SATA Power (15 pin)
4 - Host Connectors: SATA (7 pin, Data)
Interface: SATA / SAS
Front Door Key Lock: Yes
Number of Drives: 4

Manufacturer Warranty: 02 Years Limited Warranty

Write Review

Reviews

Write Review

Reviews

Be the first to write a review

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

Warranty	2 Years
4 - Drive Connectors	SFF-8482 (29 pin, Data & Power, Internal SAS)
2 - Host Connectors	SATA Power (15 pin)
4 - Host Connectors	SATA (7 pin, Data)
Operating Temperature	0°C to 55°C (23°F to 95°F)
Storage Temperature	-20°C to 60°C (-4°F to 122°F)
Humidity	5%~85% RH
Interface	SATA / SAS
Front Door Key Lock	Yes
Number of Drives	4
Drive Size	3.5in
Compatible Drive Types	SAS & SATA
Drive Installation	Removable
Number of internal 3.5 inch bays	4
Fan(s)	Yes
1 - Fans	70 mm
Fan Bearing Type	Sleeve Bearing
1 - LED Indicators	Power LED Drive 1 Activity LED Drive 2 Activity LED Drive 3 Activity LED Drive 4 Activity LED
Package Height	18.0 cm [7.1 in]
Package Length	16.4 cm [6.5 in]
Shipping (Package) Weight	1.6 kg [3.5 lb]
Package Width	25.4 cm [10.0 in]
Maximum Data Transfer Rate	6 Gbit/s
Max Drive Capacity	Currently tested with up to 6TB 7200 RPM hard drives
Weight of Product	1.3 kg [2.8 lb]
Product Length	19.7 cm [7.8 in]
Product Width	14.6 cm [5.7 in]
Product Height	12.6 cm [5.0 in]
OS Compatibility	OS independent; No software or drivers required
System and Cable Requirements	Flammability rating: UL94 - V0
1 - Included in Package	4 Drive Trayless 3.5in SATA/SAS Mobile Rack / Instruction manual
8 - Included in Package	Installation screws
2 - Included in Package	Drive bay keys
4 - Included in Package	SATA cables
