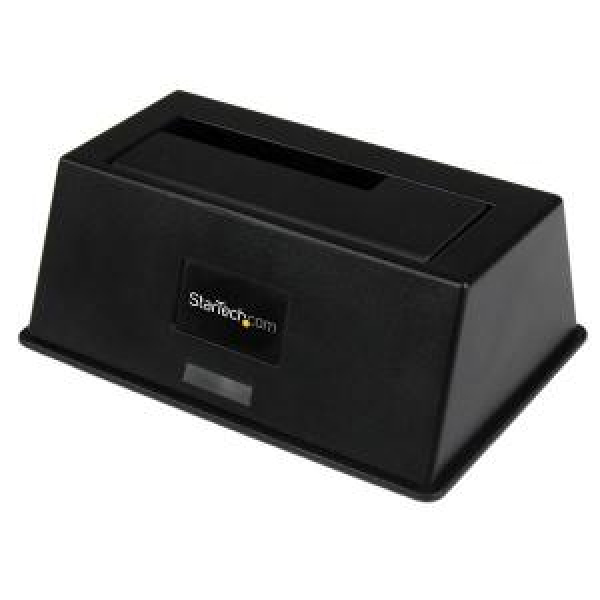

Startech Esata Usb 3.0 Sata Ssd/hdd Dock W/ Uasp (SDOCKU33EBV)

SKU : SDOCKU33EBV
Brand : StarTech
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Startech Esata Usb 3.0 Sata Ssd/hdd Dock W/ Uasp SDOCKU33EBV, 1 - Drive Connectors: SATA Data & Power Combo (7+15 pin), 1 - Host Connectors: USB Type-B (9 pin) USB 3.0 / eSATA (7 pin, Data), Interface: USB 3.0 & eSATA, Bus Type: USB 3.0 & eSATA, Number of Drives: 1, Drive Size: 2.5in & 3.5in, Compatible Drive Types: SATA, Drive Installation: Removable, Fan(s): No, Chipset ID: JMicron - JMS561   For convenient compatibility and time-saving performance, the SDOCKU33EBV docking station can be connected through USB 3.0, with support for full USB 3.0 bandwidth (5 Gbps) as well as UASP.
Ask a question about this product
$92.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Startech  | Model # SDOCKU33EBV



The versatile SDOCKU33EBV UASP-enabled USB 3.0 / eSATA docking station makes it easy for you to connect and swap 2.5in or 3.5in SATA III hard drives (HDD) and solid state drives (SSD), with the option to connect through either USB or eSATA.



For convenient compatibility and time-saving performance, the SDOCKU33EBV docking station can be connected through USB 3.0, with support for full USB 3.0 bandwidth (5 Gbps) as well as UASP, which delivers performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. For fast performance and efficient data transfers, the dock also supports the full SATA III bandwidth of 6 Gbps when connected through eSATA. See our UASP testing results below for further details.



With support for large capacity SATA I/II/III drives (tested up to 6TB), as well as 2.5in or 3.5in drives, this HDD/SSD docking station makes it easy to maximize the storage/backup capabilities of your computer using virtually any SATA drive.



Features:

  • Supports SDOCKU33EBV SATA III & UASP for optimal performance
  • eSATA or USB 3.0 interface options
  • Supports SDOCKU33EBV 2.5in and 3.5in form factor SATA hard drives (HDD) and solid state drives (SSD)
  • Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps)
  • Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives
  • Plug-and-Play and Hot-Swap compatible.



Overview:

  • Model: SDOCKU33EBV
  • Color: Black
  • Size : 2.5" & 3.5"
  • Material: Plastic
  • Internal Interface : SATA III
  • External Interface : USB 3.0 w/UASP & SATA III



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Warranty 2 Years
1 - Drive Connectors SATA Data & Power Combo (7+15 pin)
1 - Host Connectors USB Type-B (9 pin) USB 3.0 / eSATA (7 pin, Data)
Operating Temperature 5°C to 35°C (41°F to 95°F)
Storage Temperature -20°C to 50°C (-4°F to 122°F)
Humidity 20%RH ~ 80%RH
Interface USB 3.0 & eSATA
Bus Type USB 3.0 & eSATA
Number of Drives 1
Drive Size 2.5in & 3.5in
Compatible Drive Types SATA
Drive Installation Removable
Fan(s) No
Chipset ID JMicron - JMS561
1 - LED Indicators Power/Activity
Package Height 93 mm [3.7 in]
Package Length 17.1 cm [6.7 in]
Shipping (Package) Weight 755 g [26.7 oz]
Package Width 16.2 cm [6.4 in]
Maximum Data Transfer Rate 6 Gbps (eSATA) / 5 Gbps (USB 3.0)
Type and Rate USB 3.0 - 5 Gbit/s
UASP Support Yes
4Kn Support Yes
Type and Rate SATA III (6 Gbps)
Max Drive Capacity Currently tested with hard drives up to 6TB 7200 RPM
Hot Swap Capability Yes
Color Black
Product Length 13.9 cm [5.5 in]
Product Width 92 mm [3.6 in]
Product Height 53 mm [2.1 in]
Weight of Product 325 g [11.5 oz]
Power Source AC Adapter Included
Input Voltage 100 - 240 AC
Input Current 0.8 A
Output Voltage 12V DC
Output Current 2.0 A
Plug Type M
Power Consumption (In Watts) 24
OS Compatibility OS independent; No software or drivers required
1 - Included in Package USB 3.0/eSATA to SATA III Hard Drive Dock w/UASP
USB 3.0 Cable
eSATA Cable
Universal Power Adapter (NA / EU / UK / AU)
Instruction Manual
