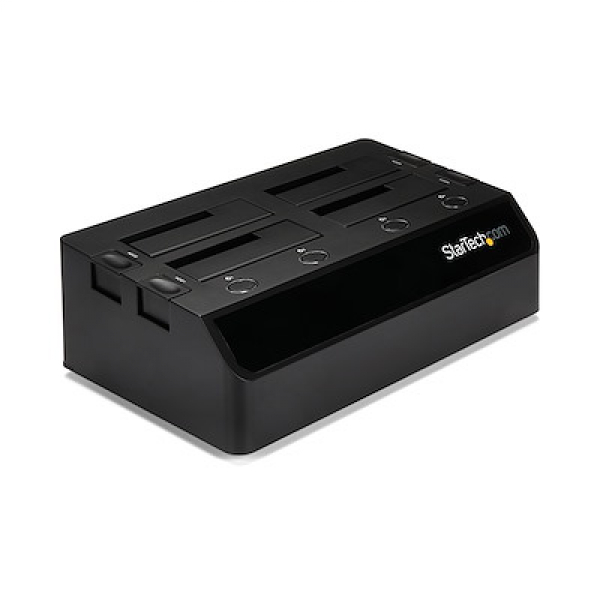

StarTech 4-Bay USB 3.0 to 2.5in/3.5in SATA SSD/HDD Docking Station SDOCK4U33

SKU : SDOCK4U33
Brand : StarTech
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Drive Connectors: 4 - SATA Data & Power Combo (7+15 pin), Host Connectors: 1 - USB 3.2 Type-B (9 pin, Gen 1, 5Gbps), Interface: USB 3.2 Gen 1 (5Gbps), Number of Drives: 4, Drive Size: 2.5in & 3.5in, Drive Installation: Removable, Fans: 2 - 40 mm, Maximum Data Transfer Rate: 5 Gbps, 4Kn Support: Yes, Type and Rate: SATA III (6 Gbps), Color: Black, Material: Plastic, Cable Length: 0.9 m [3.0 ft]. Our SDOCK4U33 Quad-Bay USB 3.0 to SATA Hard Drive Docking Station enables access to up to four 2.5/3.5" SATA drives from your desktop or laptop computer over USB 3.2 Gen 1 (5 Gbps).
Ask a question about this product
$333.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # StarTech | Model # SDOCK4U33



Our SDOCK4U33 Quad-Bay USB 3.0 to SATA Hard Drive Docking Station enables access to up to four 2.5/3.5" SATA drives from your desktop or laptop computer over USB 3.2 Gen 1 (5 Gbps).



Features:

  • Each drive loads directly into a tray-less top slot, no additional enclosures or tools are required. This dock enables quick access to drives file transfers, troubleshooting purposes, or system configuration/deployment - ideal for technicians and IT professionals.
  • This hard drive dock features independently powered SATA controllers. These controllers enable the hot-swapping of idle drives, without impacting the function of active drives, saving you time and resources. Two adjustable 40mm cooling fans keep your drives operating at optimal temperatures for performance and reliability.
  • Extend the compatibility of this HDD/SDD docking station with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), for easy docking of legacy 2.5 or 3.5in. IDE hard drives.
  • Compatible with 2.5" and/or 3.5" SATA HDDs and SSDs of any capacity and file format recognized by your host system. This dock works with any Operating System. Drivers and software are not required.
  • SDOCK4U33 is backed by a StarTech.com 2-year warranty and free lifetime technical support.



Overview:

  • Drive Connectors: 4 - SATA Data & Power Combo (7+15 pin)
  • Host Connectors: 1 - USB 3.2 Type-B (9 pin, Gen 1, 5Gbps)
  • Interface: USB 3.2 Gen 1 (5Gbps)
  • Number of Drives: 4
  • Drive Size: 2.5in & 3.5in
  • Drive Installation: Removable
  • Fans: 2 - 40 mm
  • Maximum Data Transfer Rate: 5 Gbps
  • 4Kn Support: Yes
  • Type and Rate: SATA III (6 Gbps)
  • Color: Black
  • Material: Plastic
  • Cable Length: 0.9 m [3.0 ft]



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Warranty 2 Years
Drive Connectors 4 - SATA Data & Power Combo (7+15 pin)
Host Connectors 1 - USB 3.2 Type-B (9 pin, Gen 1, 5Gbps)
Operating Temperature 5°C to 35°C (41°F to 95°F)
Storage Temperature -20°C to 50°C (-4°F to 122°F)
Humidity 20%RH ~ 80%RH
Interface USB 3.2 Gen 1 (5Gbps)
Number of Drives 4
Drive Size 2.5in & 3.5in
Compatible Drive Types SATA
Drive Installation Removable
Fan(s) Yes
Fans 2 - 40 mm
Chipset ID VIA/VLI - VL817
ASMedia - ASM225CM
LED Indicators 4 - Drive power/activity LED
Package Height 17.0 cm [6.7 in]
Package Length 34.1 cm [13.4 in]
Package Width 21.4 cm [8.4 in]
Package Quantity 1
Shipping (Package) Weight 2.2 kg [4.8 lb]
Maximum Data Transfer Rate 5 Gbps
UASP Support Yes
TRIM Support Yes
4Kn Support Yes
Type and Rate SATA III (6 Gbps)
Max Drive Capacity Currently tested with up to 4TB 7200 RPM 3.5" hard drives per bay (8TB total) and 2TB 5900 RPM 2.5" hard drives (2TB total)
Hot Swap Capability Yes
Insertion Rating 15,000 Cycles
Color Black
Material Plastic
Cable Length 0.9 m [3.0 ft]
Product Length 28.5 cm [11.2 in]
Product Width 17.1 cm [6.7 in]
Product Height 8.5 cm [3.3 in]
Weight of Product 1.0 kg [2.3 lb]
Power Source AC Adapter Included
Input Voltage 100 - 240 AC
Input Current 2.5A
Output Voltage 12V DC
Output Current 6.5 A
Power Consumption (In Watts) 78
Included in Package 1 - USB 3.0 4-Bay 2.5/3.5" SATA SSD/HDD Dock
1 - 3ft/0.9m USB 3.2 Gen 1 Cable
1 - Universal power adapter (NA/EU/UK/AUS)
1 - Instruction manual
