StarTech M.2 NVMe SSD Enclosure upto 80mm with USB-C 3.1 Gen2 M2E1BRU31C

SKU : M2E1BRU31C
Brand : StarTech
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
Drive Connectors: 1 - M.2 (PCIe, M-Key, AHCI/NVMe, NGFF), Host Connectors: 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps), Interface: USB 3.2 Gen 2 10Gbps, Number of Drives: 1, Drive Size: 22 mm - M.2 NVMe, Compatible Drive Types: M.2 (PCIe, NVMe, M-Key, NGFF), Drive Installation: Fixed, Supported Drive Height(s): 2230; 2242; 2260; 2280, Chipset ID: JMicron - JMS583, Maximum Data Transfer Rate: 10 Gbps, Type and Rate: USB 3.2 Gen 2 - 10 Gbit/s, Color: Black, Material: Aluminum, Cable Length: 52 cm [20.5 in].
Ask a question about this product
$154.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # StarTech | Model # M2E1BRU31C

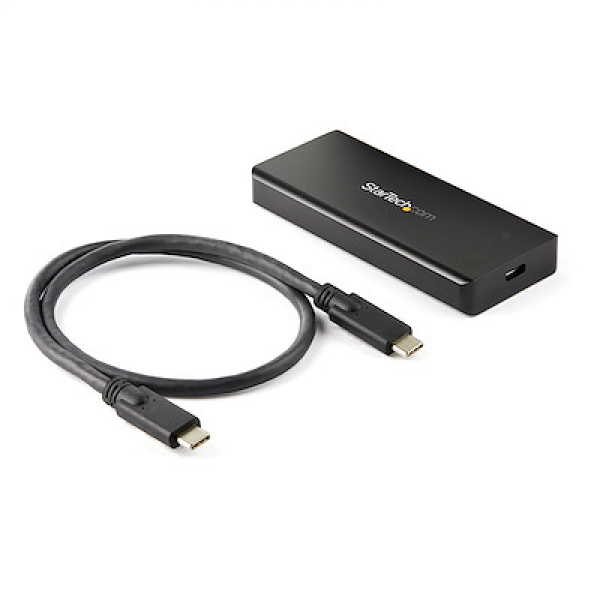

This rugged M.2 NVMe PCIe SSD enclosure is a highly portable, high-performance data storage solution for your USB-C or Thunderbolt 3 enabled devices.



Features:

  • Leverage the high speeds of your M.2 NVMe drive, with this external SSD enclosure. It delivers USB 3.1 Gen 2 read/write speeds up to 10Gbps, nearly twice the capability of traditional M.2 SATA and hard drive enclosures.
  • This fan-less solid aluminum enclosure features an internal thermal pad that transfers heat away from the drive for maximum heat dissipation, ensuring your drive operates noiselessly at an optimal temperature to preserve performance.
  • Be prepared for the unexpected. The enclosure for PCI Express based NVMe SSDs comes with an IP67 rating, which means that it’s both dustproof and water resistant.
  • It’s the perfect solution for people who work outside. Or, for people who work in environments with a lot of dust, like: construction sites, factories, or manufacturing facilities.
  • The USB 3.1 Gen 2 NVMe enclosure works with tablets, laptops, desktop computers and hosts that are equipped with USB Type-C and Thunderbolt 3 ports. It's also backward compatible with USB 3.1 Gen 1, making it a convenient solution for the office or other environments.



Overview:

  • Drive Connectors: 1 - M.2 (PCIe, M-Key, AHCI/NVMe, NGFF)
  • Host Connectors: 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
  • Interface: USB 3.2 Gen 2 10Gbps
  • Number of Drives: 1
  • Drive Size: 22 mm - M.2 NVMe
  • Compatible Drive Types: M.2 (PCIe, NVMe, M-Key, NGFF)
  • Drive Installation: Fixed
  • Supported Drive Height(s): 2230; 2242; 2260; 2280
  • Chipset ID: JMicron - JMS583
  • Maximum Data Transfer Rate: 10 Gbps
  • Type and Rate: USB 3.2 Gen 2 - 10 Gbit/s
  • Color: Black
  • Material: Aluminum
  • Cable Length: 52 cm [20.5 in]



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Warranty 2 Years
Drive Connectors 1 - M.2 (PCIe, M-Key, AHCI/NVMe, NGFF)
Host Connectors 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
Operating Temperature 5°C to 35°C (41°F to 95°F)
Storage Temperature -20°C to 50°C (-4°F to 122°F)
Humidity Humidity: 20% ~ 80% RH
Interface USB 3.2 Gen 2 10Gbps
Bus Type USB 3.2 Gen 2 10Gbps
Number of Drives 1
Drive Size 22 mm - M.2 NVMe
Compatible Drive Types M.2 (PCIe, NVMe, M-Key, NGFF)
Drive Installation Fixed
Supported Drive Height(s) 2230
2242
2260
2280
Chipset ID JMicron - JMS583
LED Indicators 1 - Power / Blinking: Read & Write Activity
Package Height 3.2 cm [1.3 in]
Package Length 17.5 cm [6.9 in]
Shipping (Package) Weight 256 g [9.0 oz]
Package Width 14.4 cm [5.7 in]
Package Quantity 1
Maximum Data Transfer Rate 10 Gbps
Type and Rate USB 3.2 Gen 2 - 10 Gbit/s
UASP Support Yes
TRIM Support Yes
4Kn Support Yes
S.M.A.R.T. Support No
Type and Rate NVMe (PCIe Gen 3)
General Specifications Not compatible with M.2 SATA or AHCI based SSDs
MTBF 50,000 Hours
Color Black
Product Height 1.4 cm [0.6 in]
Product Length 4.5 cm [1.8 in]
Weight of Product 164 g [5.8 oz]
Product Width 10.5 cm [4.1 in]
Material Aluminum
Cable Length 52 cm [20.5 in]
Power Source Bus Powered
OS Compatibility OS independent; No software or drivers required
Included in Package 1 - NVMe Enclosure
1 - 1.7 ft [52 cm] USB-C Cable
1 - Additional Drive Mounting Stand-off
1 - Torx Screw Driver
1 - Rubber Feet
1 - Quick Start Guide
