STARTECH 4 Port Pci Express Pcie Superspeed Usb PEXUSB3S4V

Name: STARTECH 4 Port Pci Express Pcie Superspeed Usb PEXUSB3S4V
Brand: StarTech
SKU: PEXUSB3S4V
Price: 88 AUD
Availability: InStock

SKU : PEXUSB3S4V

Brand : StarTech

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

Bus Type: PCI Express, Interface: USB 3.0, Port Style: Integrated on Card, Ports: 4, Type and Rate: USB 3.0 - 5 Gbit/s, 02 Years Limited Warranty, PEXUSB3S4V.

Ask a question about this product

$88.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Startech | Model # PEXUSB3S4V

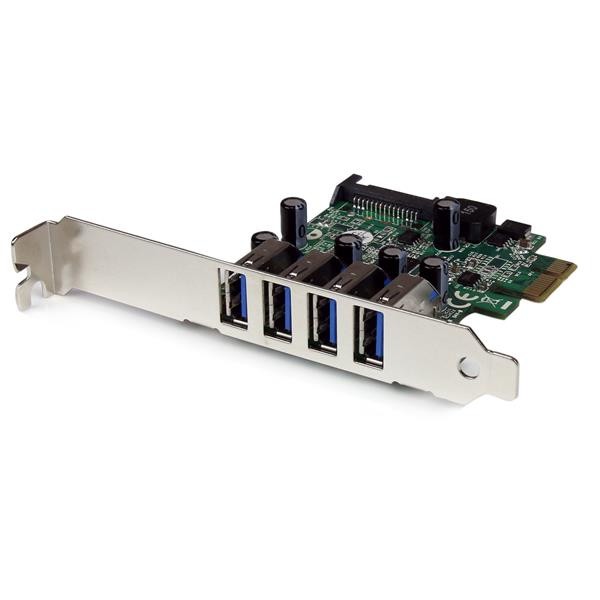

The PEXUSB3S4V PCI Express USB 3.0 Card (with SATA Power) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.

Features:

4 external USB 3.0 ports in a stacked layout
UASP support for more efficient data transfer
Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.95 specifications

Overview:

Bus Type: PCI Express
Interface: USB 3.0
Port Style: Integrated on Card
Ports: 4
Type and Rate: USB 3.0 - 5 Gbit/s

Manufacturer Warranty: 02 Years Limited Warranty

Write Review

Reviews

Write Review

Reviews

Be the first to write a review

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

Bus Type	PCI Express
Card Type	Standard Profile (LP bracket incl.)
Chipset ID	Renesas/NEC - µPD720201
Interface	USB 3.0
Port Style	Integrated on Card
Ports	4
Type and Rate	USB 3.0 - 5 Gbit/s
UASP Support	Yes
Connector Type(s)	1 - PCI Express x1 Male
External Ports	4 - USB Type-A (9 pin) USB 3.0 (5 Gbps) Female
Internal Ports	1 - SATA Power (15 pin) Plug
OS Compatibility	Windows® XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Note	The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.
System and Cable Requirements	Available PCI Express expansion slot
Humidity	20% ~ 80% RH
Operating Temperature	5°C to 50°C (41°F to 122°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
Product Height	2.7 in [6.8 cm]
Product Length	3 in [75 mm]
Product Width	0.7 in [19 mm]
Weight of Product	2.4 oz [68 g]
Package Height	1.3 in [33 mm]
Package Length	5.2 in [13.2 cm]
Package Quantity	1
Package Width	6.4 in [16.2 cm]
Shipping (Package) Weight	4.9 oz [138 g]
Included in Package	1 - PCI Express USB 3.0 Card 1 - Low Profile Bracket 1 - Driver CD 1 - Instruction Manual
