STARTECH 4 Port Pci Express Usb 3.0 Card - 3 PEXUSB3S42

Name: STARTECH 4 Port Pci Express Usb 3.0 Card - 3 PEXUSB3S42
Brand: StarTech
SKU: PEXUSB3S42
Price: 72 AUD
Availability: InStock

SKU : PEXUSB3S42

Brand : StarTech

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

Bus Type: PCI Express, Interface: USB 3.0, Port Style: Integrated on Card, Type and Rate: USB 3.0 - 5 Gbit/s, Card Type: Standard Profile (LP bracket incl.), 02 Years Limited Warranty, PEXUSB3S42.

Ask a question about this product

$72.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Startech | Model # PEXUSB3S42

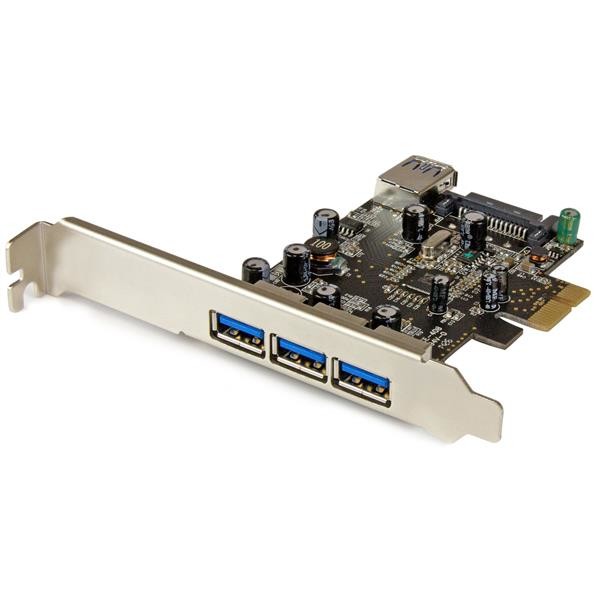

Here’s a cost-effective solution for adding USB 3.0 connectivity to your computer. This 4-port PCIe USB 3.0 card gives you three external ports and one internal port, for the ultimate connection flexibility.

Features:

Expands your computer connectivity with four extra USB 3.0 ports (3 external, 1 internal)
Easy to install with native OS support in Windows 8.1, 8, 7, and Linux kernel 2.6.31 or later
Fits standard or small form-factor computers, low-profile bracket included

Overview:

Bus Type: PCI Express
Interface: USB 3.0
Port Style: Integrated on Card
Type and Rate: USB 3.0 - 5 Gbit/s
Card Type: Standard Profile (LP bracket incl.)

Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Bus Type	PCI Express
Card Type	Standard Profile (LP bracket incl.)
Chipset ID	VIA/VLI - VL805
Industry Standards	USB 3.0 Specification Rev. 1.0 PCI Express Base Specification Rev. 2.0 Intel xHCI Specification Rev. 1.0
Interface	USB 3.0
Port Style	Integrated on Card
Ports	4
Maximum Cable Length	9.8 ft [3 m]
Maximum Data Transfer Rate	5 Gbps
MTBF	24,000 hours
Type and Rate	USB 3.0 - 5 Gbit/s
UASP Support	Yes
Connector Type(s)	1 - PCI Express x1 Male
External Ports	3 - USB Type-A (9 pin) USB 3.0 (5 Gbps) Female
Internal Ports	1 - SATA Power (15 pin) Plug 1 - USB Type-A (9 pin) USB 3.0 (5 Gbps) Female
OS Compatibility	Windows XP, Vista, 7, 8, 8.1, 10 Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 Linux 2.6.31 to 4.11.x LTS Versions only
Note	The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.
System and Cable Requirements	PCI Express enabled computer or server with an available PCI Express x1 slot or higher (x4, x8, x16) SATA power connector (recommended, but optional)
Humidity	20~80% RH
Operating Temperature	5°C to 50°C (41°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Product Height	4.7 in [12 cm]
Product Length	3.4 in [87 mm]
Product Width	0.7 in [19 mm]
Weight of Product	1.9 oz [55 g]
Included in Package	1 - 4 Port PCI Express USB 3.0 Card 1 - Low-Profile Bracket 1 - Driver CD 1 - Instruction Manual
