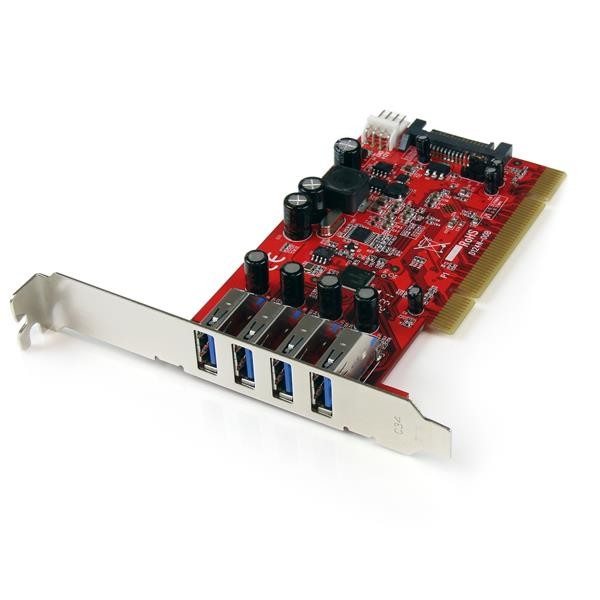

STARTECH 4 Port Pci Superspeed Usb 3.0 Adapter PCIUSB3S4

Name: STARTECH 4 Port Pci Superspeed Usb 3.0 Adapter PCIUSB3S4
Brand: StarTech
SKU: PCIUSB3S4
Price: 140 AUD
Availability: InStock

SKU : PCIUSB3S4

Brand : StarTech

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

Bus Type: PCI / PCI-X (5 / 3.3V), Card Type: Standard Profile (LP bracket incl.), Interface: USB 3.0, Maximum Data Transfer Rate: 1.3 Gbps (PCI Bus), Type and Rate: USB 3.0 - 5 Gbit/s, Lifetime Limited Warranty, PCIUSB3S4.

Ask a question about this product

$140.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Startech | Model # PCIUSB3S4

The PCIUSB3S4 4-Port PCI to USB 3.0 Card enables legacy PCI slots to support the SuperSpeed USB 3.0 standard, which is capable of data transfer rates up to 5 Gbps. Using USB 3.0 devices with this card will increase data transfer rates with up to 1.3 Gbps of available bandwidth (PCI bus limit) - more than doubling performance compared to a USB 2.0 connection.

Features:

4 external SuperSpeed USB 3.0 ports
Provides up to 900mA of power over USB 3.0
Built-in optional SATA power connector for bus-powered USB devices

Overview:

Bus Type: PCI / PCI-X (5 / 3.3V)
Card Type: Standard Profile (LP bracket incl.)
Interface: USB 3.0
Maximum Data Transfer Rate: 1.3 Gbps (PCI Bus)
Type and Rate: USB 3.0 - 5 Gbit/s

Manufacturer Warranty: Lifetime Limited Warranty

Technical Specifications

Bus Type	PCI / PCI-X (5 / 3.3V)
Card Type	Standard Profile (LP bracket incl.)
Chipset ID	Renesas/NEC - µPD720202
Interface	USB 3.0
Ports	4
Maximum Data Transfer Rate	1.3 Gbps (PCI Bus)
Type and Rate	USB 3.0 - 5 Gbit/s
UASP Support	Yes
Connector Type(s)	1 - PCI / PCI-X (Universal 3.3 & 5V, 32-bit)
External Ports	4 - USB Type-A (9 pin) USB 3.0 (5 Gbps) Female
Internal Ports	1 - SATA Power (15 pin) Plug 1 - SP4 (4 pin, Small Drive Power) Plug
OS Compatibility	Windows® XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
System and Cable Requirements	Available PCI slot Available SATA or Floppy power connector
Operating Temperature	5°C to 50°C (41°F to 122°F)
Storage Temperature	-25°C to 70°C (13°F to 158°F)
Color	Red
Product Height	2.6 in [6.5 cm]
Product Length	5.2 in [13.3 cm]
Product Width	0.8 in [20 mm]
Weight of Product	2.5 oz [72 g]
Included in Package	1 - PCI USB 3.0 Card 1 - Low Profile Bracket 1 - Driver CD 1 - Instruction Manual
