STARTECH Bi-directional Sata Ide Adapter PATA2SATA3

Name: STARTECH Bi-directional Sata Ide Adapter PATA2SATA3
Brand: StarTech
SKU: PATA2SATA3
Price: 32 AUD
Availability: InStock

SKU : PATA2SATA3

Brand : StarTech

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

STARTECH Bi-directional Sata Ide Adapter PATA2SATA3, Chipset ID: SunplusIT - SPIF223A, Compatible Drive Types: SATA & IDE, Drive Size: 2.5in & 3.5in, Number of Drives: 1, RAID: No, Type and Rate: SATA I (1.5 Gbps), Connector Type(s): 1 - IDE (40 Pin, EIDE/PATA) Female, 1 - SP4 (4 pin, Small Drive Power) Male, 2 - SATA (7 pin, Data) Plug, LED Indicators: 1 - HDD Activity - Green The PATA2SATA3 is a bi-directional SATA IDE adapter/converter that lets you connect a Serial ATA drive to a legacy IDE port, or an IDE drive to a SATA motherboard port.

Ask a question about this product

$32.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Startech | Model # PATA2SATA3

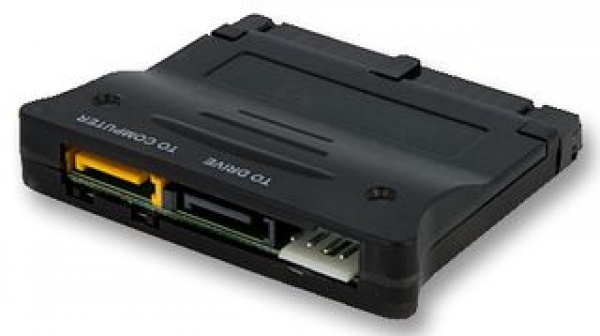

The PATA2SATA3 is a bi-directional SATA IDE adapter/converter that lets you connect a Serial ATA drive to a legacy IDE port, or an IDE drive to a SATA motherboard port.

A cost-effective solution for upgrading existing IDE systems to support SATA hard drives or optical drives, the SATA/IDE adapter eliminates the expense of having to purchase a controller card while saving the expansion slot that would be required for card installation.

Features:

Bi-Directional support for IDE-to-SATA or SATA-to-IDE communication
Compatible with PATA (IDE) 100/133 MBps hard devices
Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) devices

Overview:

Chipset ID: SunplusIT - SPIF223A
Compatible Drive Types: SATA & IDE
Drive Size: 2.5in & 3.5in
Type and Rate: SATA I (1.5 Gbps)

Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Chipset ID	SunplusIT - SPIF223A
Compatible Drive Types	SATA & IDE
Drive Size	2.5in & 3.5in
Number of Drives	1
RAID	No
Type and Rate	SATA I (1.5 Gbps)
Connector Type(s)	1 - IDE (40 Pin, EIDE/PATA) Female 1 - SP4 (4 pin, Small Drive Power) Male 2 - SATA (7 pin, Data) Plug
OS Compatibility	OS independent; No software or drivers required
LED Indicators	1 - HDD Activity - Green 1 - Power - Red
Humidity	90% RH
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 150°C (-40°F to 302°F)
Color	Black
Material	Plastic
Product Height	0.4 in [1.1 cm]
Product Length	2.4 in [61 mm]
Product Width	2 in [50 mm]
Weight of Product	0.7 oz [20 g]
Package Height	1.3 in [32 mm]
Package Length	5.6 in [14.2 cm]
Package Width	6.8 in [17.3 cm]
Shipping (Package) Weight	3.6 oz [102 g]
Included in Package	1 - Bi-Directional SATA IDE Converter 1 - SATA Cable 1 - SP4 to Dual LP4 Y Power Adapter 1 - Instruction Manual
