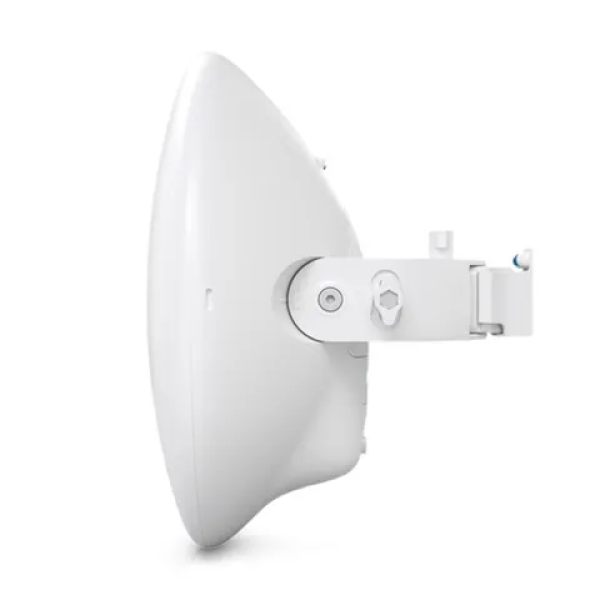

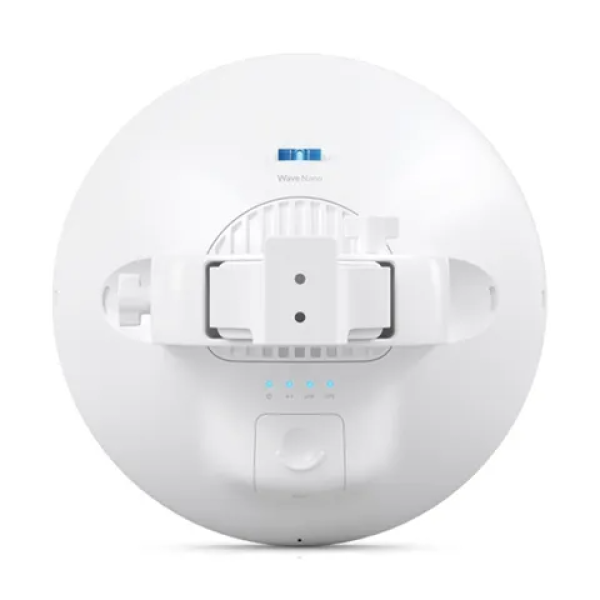

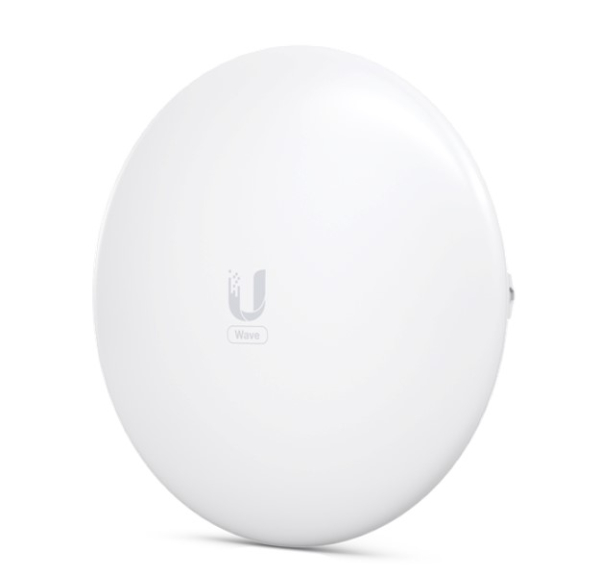

Ubiquiti UISP Wave Nano 60 GHz PtMP Access Point

Ubiquiti UISP Wave Nano 60 GHz PtMP Access Point

Name: Ubiquiti UISP Wave Nano 60 GHz PtMP Access Point
Brand: Ubiquiti
SKU: Wave-Nano
Price: 575 AUD
Availability: InStock

SKU : Wave-Nano

Brand : Ubiquiti

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Processor: Dual ARM Cortex-A53 cores at 1 GHz, Memory: DDR3L 512 MB, GPS: Yes, Button: Factory reset, LEDs: Power, Ethernet, GPS, link, Warranty: 01 Year, Wave-Nano.

Ask a question about this product

$575.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Ubiquiti | Model # Wave-Nano

With the help of a Ubiquiti Wave AP connection, Wave-Nano can give 2 Gbps of total throughput (1 Gbps duplex). A Bluetooth radio and a high-performance 5GHz backup radio are included in the Ubiquiti UISP Wave Nano to facilitate setup using the UISP Mobile app.

Features:

Compatibility and supported distances: Wave AP - 5 km link range & Wave AP Micro - 4 km link range
2 Gbps max. throughput (1 Gbps duplex)
5 GHz 800+ Mbps weather-resilient backup radio
(1) GbE RJ45 port
Integrated GPS & Bluetooth

Overview:

Processor: Dual ARM Cortex-A53 cores at 1 GHz
Memory: DDR3L 512 MB
GPS: Yes
Button: Factory reset
LEDs: Power, Ethernet, GPS, link

Manufacturer Warranty: 01 Year Limited Warranty

Write Review

Reviews

Write Review

Reviews

Be the first to write a review

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

Hardware :-
Processor	Dual ARM Cortex-A53 cores at 1 GHz
Memory	DDR3L 512 MB
Networking interface	(1) GbE RJ45 port
Max. power consumption	20W
Power method	Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply	48V DC, 0.65A gigabit PoE adapter (included) Can be powered by a UISP Router or UISP Switch
Supported voltage range	44–54V DC 22–27V DC
GPS	Yes
Button	Factory reset
LEDs	Power, Ethernet, GPS, link
Operating temperature	-40 to 60° C (-40 to 140° F)
Operating humidity	5 to 95% noncondensing
Certifications	FCC, IC, CE
Software :-
Operating mode	PtMP station
Ubiquiti specific features	Wave AI, discovery protocol
Services	UISP, ping watchdog, NTP client, SNMP
Tools	Antenna alignment, discovery utility, ping, trace route, speed test
Network	Bridge/Router mode
Application requirements	UISP: Version 1.4.5 and later
System :-
Total throughput	2 Gbps (1 Gbps duplex)
Max. range	5+ km
Encryption	WPA2-PSK (AES)
RF :-
Operating frequency	57–71 GHz
Channel bandwidth	2160, 1080 MHz
Operating channels	58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
Modulation	16QAM, QPSK
Antenna gain	41 dBi
Polarization	Vertically linear
Beamwidth	Azimuth: 3 dB 1.4° Elevation: 3 dB 1.4°
Back-Up RF :-
WiFi standard	802.11ax (WiFi 6)
Operating frequency	US/CA U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz
Worldwide	5150 - 5875 MHz
Channel bandwidth	20, 40, 80 MHz
Modulation	BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna gain	19 dBi
Polarization	Dual-linear
Beamwidth	Azimuth: 3 dB 14° Elevation: 3 dB 14°
Cross-pol isolation	20 dB
LEDs :-
Power	Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress
Ethernet	Flashing blue: Ethernet traffic detected
GPS	Blue: receiving at least (4) GPS satellite signal
Links	White: 5GHz link Blue: 60GHz link
