StarTech Thunderbolt 3 Mini Dock - Dual Monitor 4K 60Hz HDMI Docking Station

SKU : TB3DKM2HDL
Brand : StarTech
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Displays Supported: 2, 4K Support: Yes, Interface: Thunderbolt 3, Maximum Digital Resolutions: 4K 60Hz, Warranty: 03 Years, TB3DKM2HDL.
Ask a question about this product
$183.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # | Model # TB3DKM2HDL

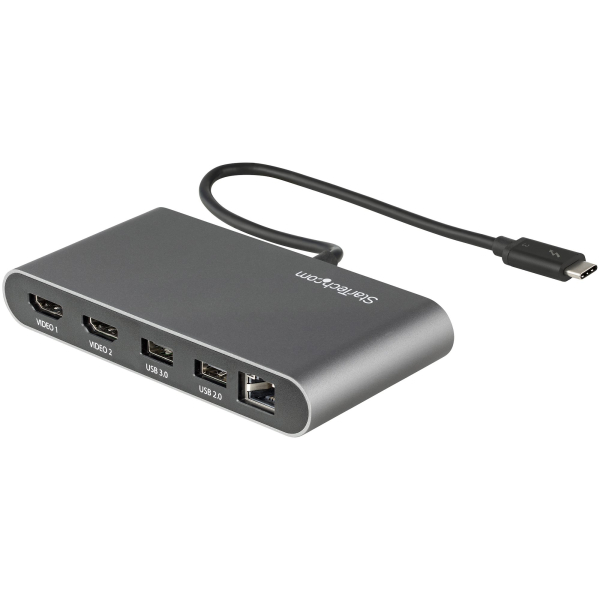

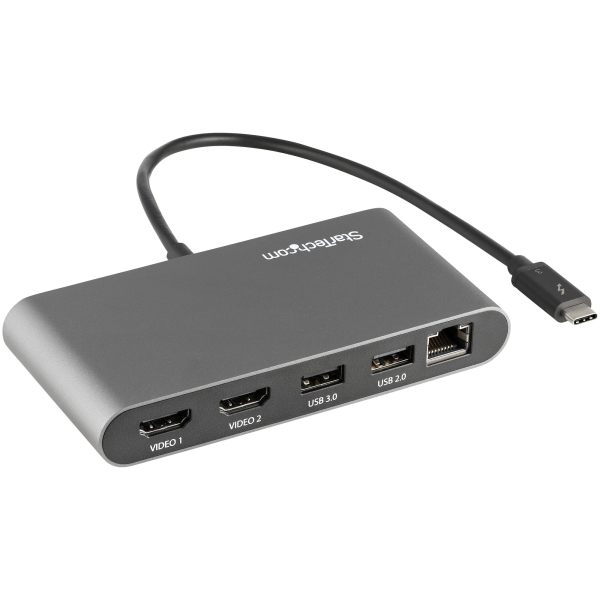

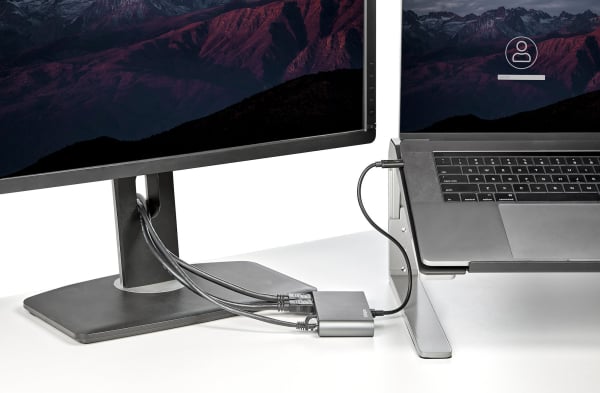

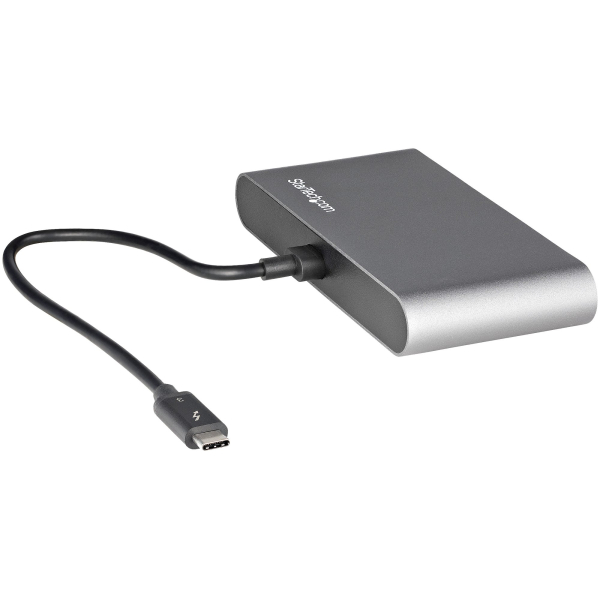

This certified Thunderbolt 3 docking station is a compact mini dock, delivering essential connections for productivity. The bus-powered dock connects dual 4K HDMI displays, Gigabit Ethernet, and two USB-A (USB 3.2 / 2.0) ports and for flexible set up, the attached Thunderbolt 3 cable has an extended length of (11 in./ 28 cm).



Features:

  • Thunderbolt 3 Certified Mini Dock: 40 Gbps Video & Data Throughput, Dual Monitor 4k 60hz Hdmi Output, 2-port Usb-a Hub (1x Usb 3.2 Gen 1 5gbps & 1x Usb 2.0) & Gigabit Ethernet Port W/ Pxe Boot And Wol
  • Compact Size: This Bus-powered, Portable Thunderbolt 3 Mini Dock Is Designed For Shared And Small Workspaces And Features An Extra Long 11" (28cm) Attached Cable To Reduce Port/Connector Strain On Macbooks And Laptops On Riser Stands
  • Host Compatibility: Compatible W/Tb3 Devices Incl Lenovo Thinkpad X1 Carbon/T Series, Dell Xps/Latitude/Precision & Hp Elitebook, Macbook Pro 16/13/Air (Extended Dual Displays On Mac W/Intel, M1 Max & M1 Pro; Single Display Only W/ Older Apple M1 Chip)
  • For High Powered Laptops: Ideal For Users Who Need To Use Their Laptop Power Adapter As They Require 100w Or More To Keep Their Laptops Charged, But Still Want Thunderbolt 3 Dock Performance & Functionality



Overview:

  • Displays Supported: 2
  • 4K Support: Yes
  • Interface: Thunderbolt 3
  • Maximum Digital Resolutions: 4K 60Hz



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Environmental :-
Operating Temperature 5°C to 40°C
Storage Temperature -20°C to 70°C
Humidity 0% to 95% (non-condensing) at 25°C
Hardware :-
Displays Supported 2
Fast-Charge Port(s) No
4K Support Yes
Industry Standards 1Gb connectivity to any 1000Base-T device (IEEE802.3ab Compliant)
100Mb connectivity to any 100Base-TX device (IEEE802.3u Compliant)
10Mb connectivity to any 10Base-T device (IEEE802.3i Compliant)
Audio No
Interface Thunderbolt 3
Bus Type Thunderbolt 3
Chipset ID Intel JHL6540 (Alpine Ridge)
Texas Instruments TPS65983A
Parade PS176
ASMedia ASM1042A
Intel WGI210
Performance :-
Maximum Cable Length 11.0 in [28 cm]
Maximum Digital Resolutions 4K 60Hz
PXE Yes
Physical Characteristics :-
Color Black & Silver
Form Factor Compact
Product Height 1.1 in [2.7 cm]
Product Length 4.9 in [12.4 cm]
Weight of Product 5.2 oz [147.8 g]
Product Width 2.7 in [6.9 cm]
Material Aluminum and Plastic
Cable Length 11.0 in [28 cm]
Power :-
Power Source Bus Powered
Input Voltage 5V DC
Output Voltage 5 DC
Software :-
OS Compatibility Windows 11, 10 (32/64 bit), 8.1 (32/64bit), 7 (32/64bit)
Windows Server 2008 R2, 2012(32/64bit)
macOS 10.10 -10.15, 11.0, 12.0, 13.0
Special Notes / Requirements :-
Note MacBook Air and MacBook Pro systems using the new Apple M1 chip support only a single external display over the Thunderbolt 3 ports, even when connected to a Thunderbolt 3 docking station with more than one video output. This single monitor limitation does not affect Intel-based Macs with Thunderbolt 3.
What's in the Box :-
Included in Package 1 - Docking Station
1 - User Manual
