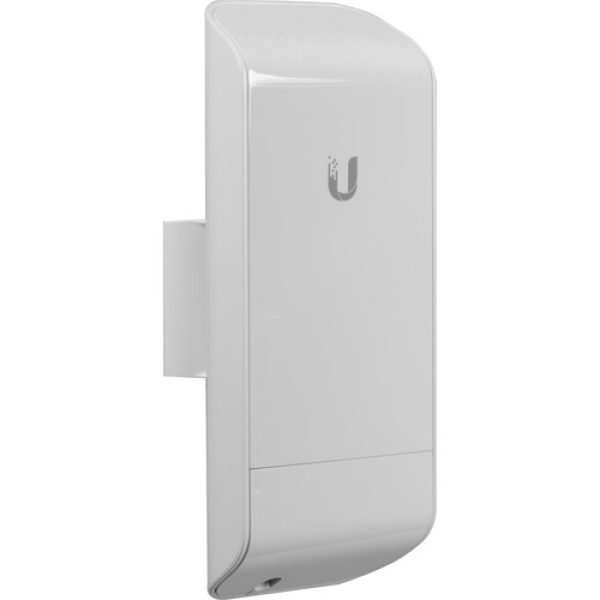

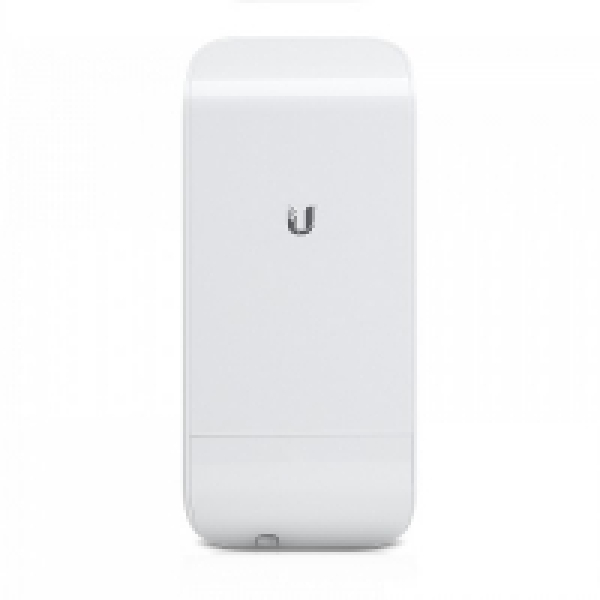

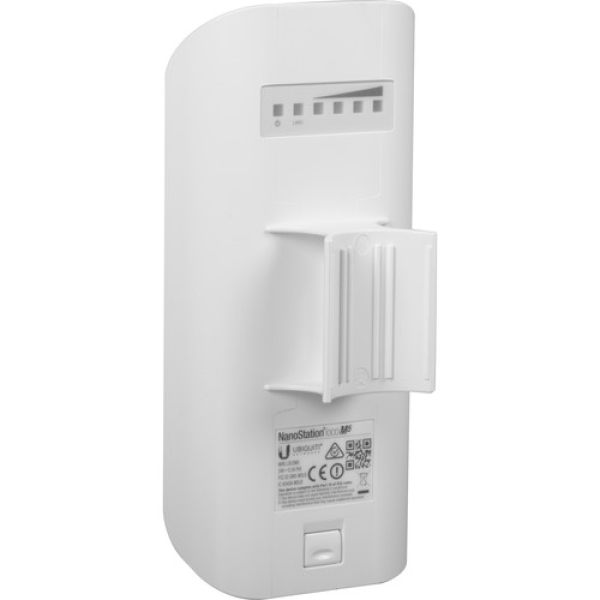

Ubiquiti locoM5 5GHz 13dBi Indoor/Outdoor airMAX CPE

Ubiquiti locoM5 5GHz 13dBi Indoor/Outdoor airMAX CPE

Name: Ubiquiti locoM5 5GHz 13dBi Indoor/Outdoor airMAX CPE
Brand: Ubiquiti
SKU: LOCOM5-AU
Price: 125 AUD
Availability: InStock

SKU : LOCOM5-AU

Brand : Ubiquiti

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

Power Supply (PoE): 24V, 0.5A, Max. Power Consumption 5.5W: 5.5W, Memory: 64 MB DDR2, 8 MB Flash, Frequency: 5 GHz, Cross-pol Isolation: 20 dB Minimum, Max. VSWR: 1.4:1, 01 Year Limited Warranty, LOCOM5-AU.

Ask a question about this product

$125.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Ubiquiti | Model # LOCOM5-AU

Ubiquiti Networks sets the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the original NanoStation®. The NanoStationM and NanoStationlocoM take the same concept to the future with sleek and elegant form factors, along with integrated airMAX® (MIMO TDMA protocol) technology.

Overview:

Power Supply (PoE): 24V, 0.5A
Max. Power Consumption 5.5W: 5.5W
Memory: 64 MB DDR2, 8 MB Flash
Frequency: 5 GHz
Cross-pol Isolation: 20 dB Minimum
Max. VSWR: 1.4:1

Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Dimensions	161 x 31 x 80 mm (6.31 x 1.22 x 3.15")
Weight	180 g (6.35 oz)
Power Supply (PoE)	24V, 0.5A
Max. Power Consumption 5.5W	5.5W
Power Method	Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Frequency	Worldwide: 5170-5875 MHz US: 5725-5850 MHz USA DFS: 5250-5850 MHz
Gain	13 dBi
Networking Interface	(1) 10/100 Ethernet Port
Processor Specs	Atheros MIPS 24Kc, 400 MHz
Memory	64 MB DDR2, 8 MB Flash
Frequency	5 GHz
Cross-pol Isolation	20 dB Minimum
Max. VSWR	1.4:1
Beamwidth	45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization	Dual Linear
Enclosure	Outdoor UV Stabilized Plastic
Mounting	Pole-Mount (Kit Included)
Operating Temperature	-30 to 75° C (-22 to 167° F)
Operating Humidity	5 to 95% Noncondensing
Wireless Approvals	FCC Part 15.247, IC RS210, CE
RoHS Compliance	Yes
Shock & Vibration	ETSI300-019-1.4
