StarTech Cisco Meraki MA-SFP-1GB-SX Comp. SFP - 1GbE MMF Transceiver

SKU : MASFP1GBSXST
Brand : StarTech
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
Color: Silver, Material: Aluminum, Type: Multi Mode, Wavelength: 850nm, Fiber Operating Mode: Full-Duplex, MTBF: 3,381,761 hours, 01 Limited Warranty, MASFP1GBSXST.
Ask a question about this product
$54.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # StarTech | Model # MASFP1GBSXST

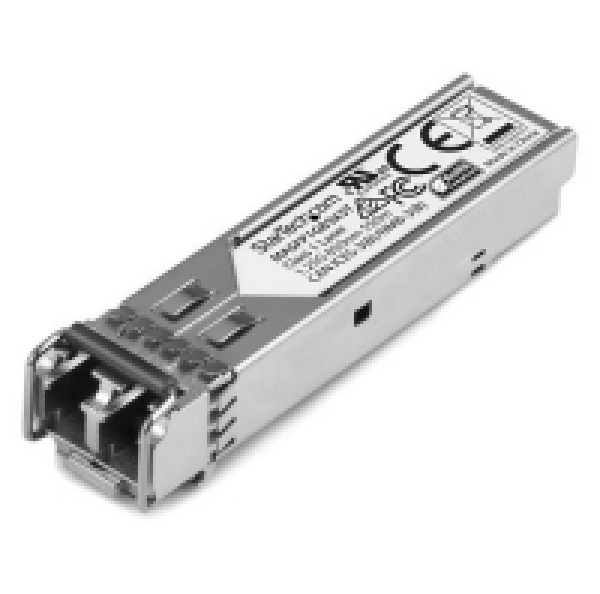

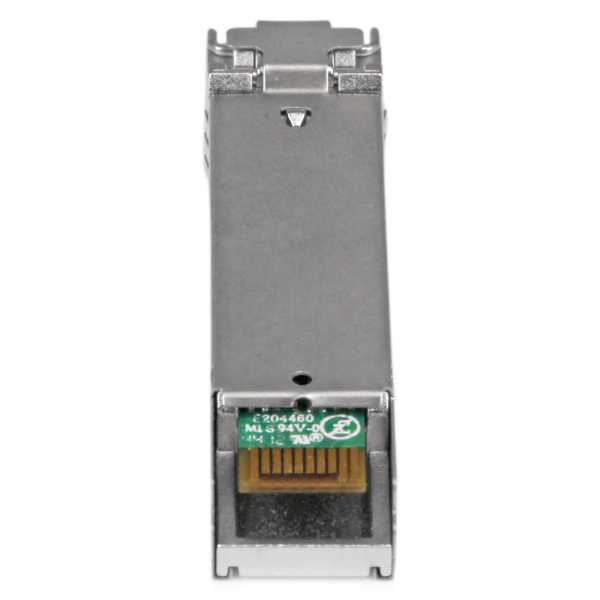

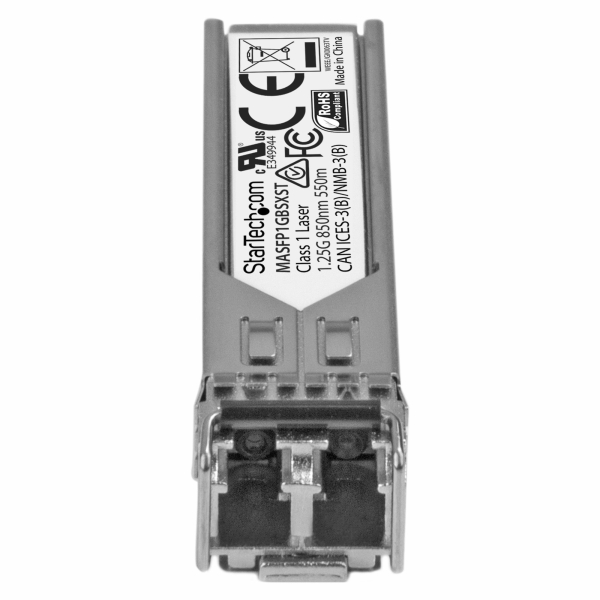

The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550m (1804 ft).



Features:

  • 100% Cisco Meraki MA-SFP-1GB-SX Compatible: Works with Cisco Meraki switches like MS225, MX400, MS250, MS350, MX84 and others
  • Technical Specs: 1000BASE-SX | 1 Gbps | Multi Mode (MMF) | LC Connector | 850nm | Digital Diagnostic Monitoring (DDM) | Distances up to 550m (1804ft)
  • Tested For Oem Host Compatibility: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
  • Works With Msa Compliant Switches: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
  • The It Pro’s Choice: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.


Overview:

  • Color: Silver
  • Material: Aluminum
  • Type: Multi Mode
  • Wavelength: 850nm
  • Fiber Operating Mode: Full-Duplex
  • MTBF: 3,381,761 hours



Manufacturer Warranty: 01 Limited Warranty

Technical Specifications

Color Silver
Material Aluminum
System and Cable Requirements MSA or Cisco Meraki compliant SFP port
Local Unit Connectors 1 - Fiber Optic LC Duplex
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5~95% RH
Compatible Brand Cisco Meraki
Industry Standards IEEE 802.3z 1000BASE-SX
Maximum Data Transfer Rate 1.25 Gbps
Max Transfer Distance 550 m (1804 ft)
Type Multi Mode
Wavelength 850nm
Fiber Operating Mode Full-Duplex
DDM Yes
Compatible Networks 1000 Mbps (1 Gbps)
MTBF 3,381,761 hours
Power Consumption (In Watts) < 1 W
Weight of Product 0.5 oz [14.0 g]
Product Length 2.2 in [56.6 mm]
Product Width 0.5 in [13.7 mm]
Product Height 0.5 in [1.2 cm]
Note For use in Gigabit fiber networking equipment and media converters
