Ubiquiti UniFi Access Lock Electric - Intergrated fail-secure elecric lock

Name: Ubiquiti UniFi Access Lock Electric - Intergrated fail-secure elecric lock
Brand: Ubiquiti
SKU: UA-Lock-Electric
Price: 158 AUD
Availability: InStock

SKU : UA-Lock-Electric

Brand : Ubiquiti

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

Voltage: 12VDC, Current power: 400mA ±10%, Lock type: Fail secure lockSingle door, Lock holding force: 1,200 kg (2,645 lb), Warranty: 01 Year, UA-Lock-Electric.

Ask a question about this product

$158.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Ubiquiti | Model # UA-Lock-Electric

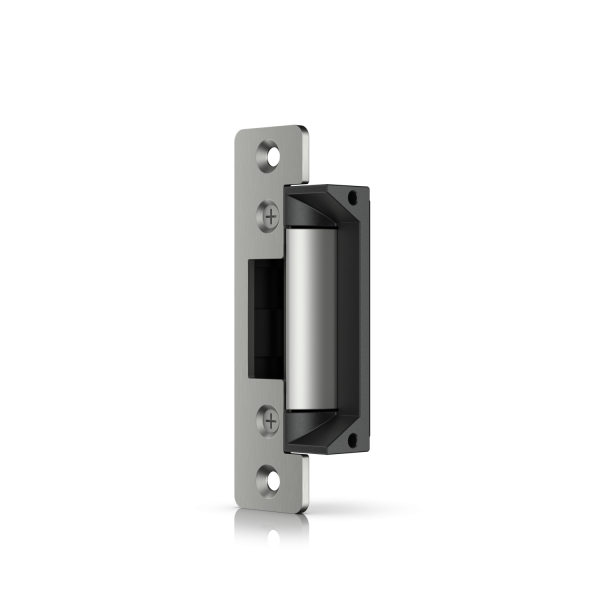

Fail-secure electric strike lock that connects to a UniFi Access Hub (UA Hub).

Features:

Holds up to 1,200 kg (2,645 lb)
Can be installed on an aluminum, steel, or wooden door frame
ANSI-compliant design

Overview:

Voltage: 12VDC
Current power: 400mA ±10%
Lock type: Fail secure lockSingle door
Lock holding force: 1,200 kg (2,645 lb)

Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Mechanical :-
Dimensions	Lock body: 80 x 40 x 35 mm (3.15 x 1.57 x 1.38") Short front plate: 124 x 32 x 3 mm (4.88 x 1.26 x 0.12") Long front plate: 202 x 36 x 3 mm (7.95 x 1.42 x 0.12")
Weight	Lock body: 185 g (6.5 oz) Short front plate: 50 g (1.8 oz) Long front plate: 130 g (4.6 oz)
Enclosure material	Lock body: zinc alloy Front plate/latches: stainless steel
Hardware :-
Voltage	12VDC
Current power	400mA ±10%
Wiring connection	Connect the two screw terminal separately to powered lock relay on UA-Hub: NO, COM
Lock type	Fail secure lock Single door
Lock holding force	1,200 kg (2,645 lb)
Suitability	Wooden Steel Aluminum
Screw terminal	+ and -
Operating temperature	-10 to 45° C (14 to 113° F)
Operating humidity	5 - 90% noncondensing
Certifications	FCC, IC, CE
