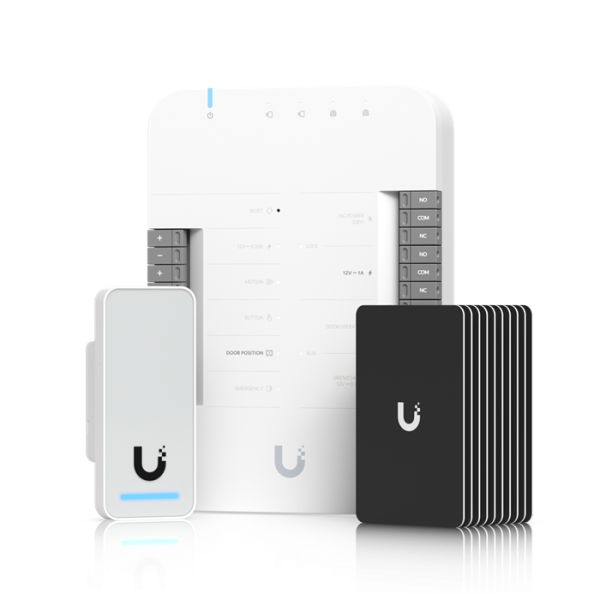

Ubiquiti UniFi Access Gen 2 Starter Kit

Name: Ubiquiti UniFi Access Gen 2 Starter Kit
Brand: Ubiquiti
SKU: UA-G2-SK
Price: 601 AUD
Availability: InStock

SKU : UA-G2-SK

Brand : Ubiquiti

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

Enclosure material: Polycarbonate, Networking interface: 10/100/1000 Base-T, Connectivity: BLE 4.1, Power method: PoE, Supported voltage range: 48V DC, Format: ISO 7810 ID-1, NFC frequency: 13.56 MHz, Warranty: 01 Year, UA-G2-SK.

Ask a question about this product

$601.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Ubiquiti | Model # UA-G2-SK

A quick start with Access with all you need for one door with one reader.

Overview:

Enclosure material: Polycarbonate
Networking interface: 10/100/1000 Base-T
Connectivity: BLE 4.1
Power method: PoE
Supported voltage range: 48V DC
Format: ISO 7810 ID-1
NFC frequency: 13.56 MHz

Manufacturer Warranty: 01 Year Limited Warranty

Write Review

Reviews

Write Review

Reviews

Be the first to write a review

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

UA-Hub-Door --
Mechanical :-
Dimensions	174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
Weight	363 g (12.8 oz)
Enclosure material	Polycarbonate
Mounting material	Polycarbonate
Hardware :-
Networking interface	10/100/1000 Base-T
Power method	PoE++ UL 294 Power-limited Class 2 PSU UL 60950/62368 LPS/PS2 PSU
Max. power consumption	Without PoE output: 30W With PoE output: 50W
PoE input	50V DC, 1A
PoE output	PoE passthrough, (4) PoE, 50V DC, total 20W
Button	Factory-reset
LEDs	System: white/blue Output relays: white
Digital input	Request to exit/request to enter/remote release/door position sensor
Dry output relay	Lock: 30V DC, 1A Aux: 30V DC, 1A
Powered output relay	Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A
Operating environment	Indoor use only
Operating temperature	0 to 40° C (32 to 104° F)
Operating humidity	5 to 95% noncondensing
UL 294 level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
UL 294 statement	Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade	Grade assignment: 1
Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level	UA-Hub-Door002, V01
LEDs :-
PoE in	Steady blue: Adopted/device is ready Steady white: Pending adoption Blinking white/blue: Upgrading firmware
PoE out	Off: Not connected or no data link Steady blue: Connected and data link on
UA-G2 --
Mechanical :-
Dimensions	93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
Weight	82 g (2.9 oz)
Enclosure material	Polycarbonate, glass
Mounting	In wall, gang box
Weatherproofing	IP55
Hardware :-
Networking interface	10/100 MbE RJ45 port
Connectivity	BLE 4.1
Power method	PoE
Supported voltage range	48V DC
Max. power consumption	5W
ESD/EMP protection	Air: ±15kV, contact: ±8kV
Sensors	Proximity sensor
Speaker	8 ohm, 0.7W
LEDs	R/G/B/W
Button	Factory-reset
NFC frequency	13.56 MHz
NFC read range	< 30 mm
NFC standards	ISO 14443A, 14443B, 15693
NFC technology	NFC Tag 1,2,3,4,5 MIFARE Classic MIFAREPlus MIFARE Ultralight MIFARE DESFire
Operating temperature	-30 to 45° C (-22 to 113° F)
Operating humidity	5 to 90% noncondensing
Certifications	CE, FCC, IC
UA-Card --
Mechanical :-
Dimensions	85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03")
Weight	5 g (0.18 oz)
Format	ISO 7810 ID-1
NFC frequency	13.56 MHz
NFC technology	ISO/IEC 14443 Type A MIFARE DESFire UniFi Access Proprietary Security Protocol
