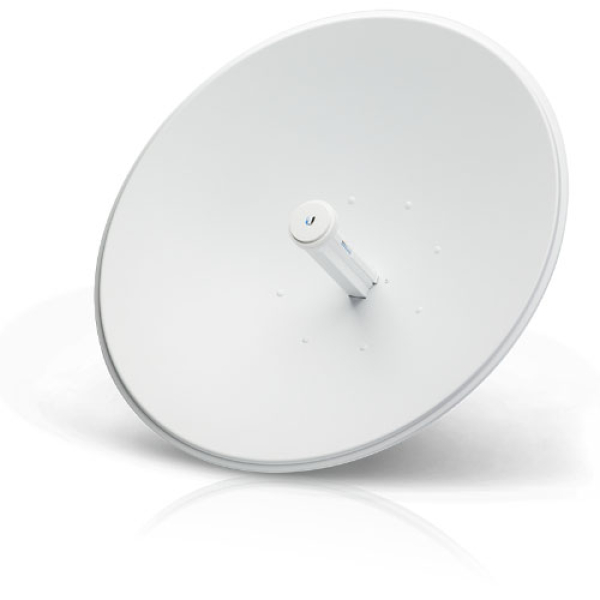

Ubiquiti PowerBeam AC 620 5 GHz 29dBi High-Performance airMAX ac Bridge

Ubiquiti PowerBeam AC 620 5 GHz 29dBi High-Performance airMAX ac Bridge

Name: Ubiquiti PowerBeam AC 620 5 GHz 29dBi High-Performance airMAX ac Bridge
Brand: Ubiquiti
SKU: PBE-5AC-620
Price: 391 AUD
Availability: InStock

SKU : PBE-5AC-620

Brand : Ubiquiti

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Mounting: Pole mount kit (Included), Networking interface: (1) GbE RJ45 port, Power supply: 24V, 0.5A Gigabit PoE, Max. power consumption: 8.5W, Supported voltage range: 20-26V DC, 01 Year Limited Warranty, PBE-5AC-620.

Ask a question about this product

$391.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Ubiquiti | Model # PBE-5AC-620

The PowerBeam ac directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam ac blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Features:

airMAX ac Protocol Support
Long-Range Point-to-Point (PtP) Link Mode
Selectable Channel Width
Automatic Channel Selection
Transmit Power Control: Automatic/Manual
Automatic Distance Selection (ACK Timing)
Strongest WPA2 Security

Overview:

Mounting: Pole mount kit (Included)

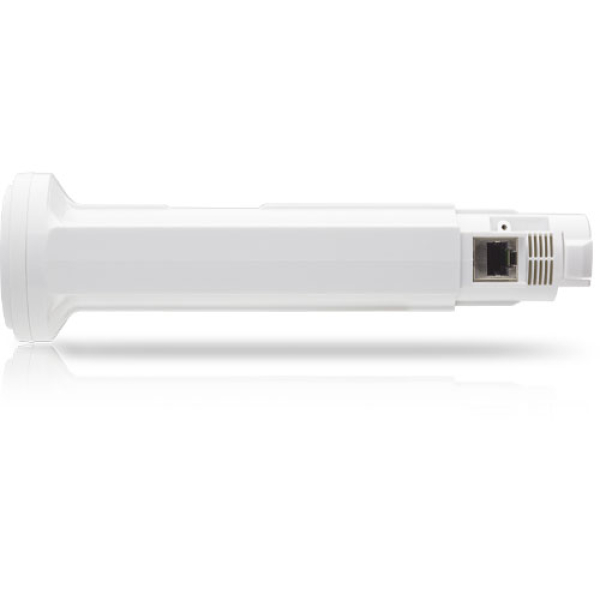

Networking interface: (1) GbE RJ45 port
Power supply: 24V, 0.5A Gigabit PoE
Max. power consumption: 8.5W
Supported voltage range: 20-26V DC

Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Mechanical:-
Dimensions	620 x 620 x 386 mm (24.4 x 24.4 x 15.2")
Weight	6.4 kg (14.1 lbs)
Enclosure material	Outdoor UV-Stabilized Plastic

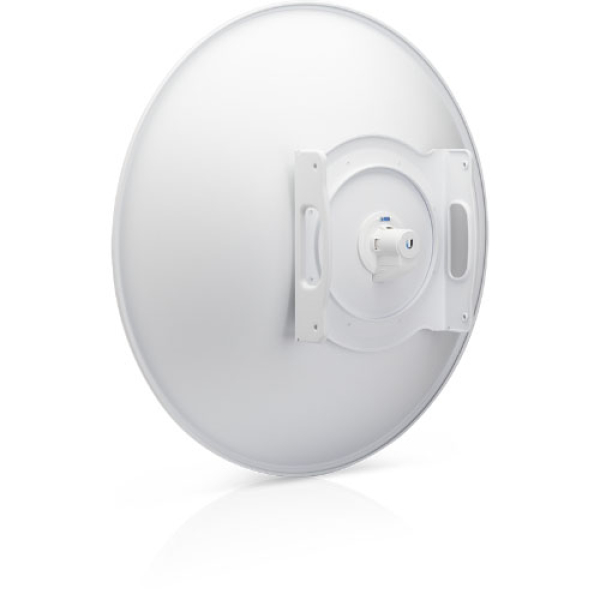

Mounting	Pole mount kit (Included)
Wind loading	Without radome: 1510 N at 200 km/h (340 lbf at 125 mph) With radome: 1830 N at 200 km/h (411 lbf at 125 mph)
Wind survivability	200 km/h (125 mph)
Hardware:-
Networking interface	(1) GbE RJ45 port
Power method	Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power supply	24V, 0.5A Gigabit PoE
Max. power consumption	8.5W
Supported voltage range	20-26V DC
ESD/EMP protection	Air/contact: ± 24 kV
LEDs	(1) Power, (1) LAN, (4) WLAN
Signal strength LEDs	Software-adjustable to correspond to custom RSSI levels
RoHS compliance	Yes
Salt fog test	IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5
Vibration test	IEC 68-2-6
Temperature shock test	IEC 68-2-14
UV test	IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4
Wind-driven rain test	ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5
Operating temperature	-40 to 70° C (-40 to 158° F)
Operating humidity	5 to 95% noncondensing
System:-
Gain	29 dBi
Max. VSWR	1.6:1
Channel sizes	PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz
Polarization	Dual linear
Operating Frequency (MHz):-
Worldwide	5150 - 5875 MHz
USA
U-NII-1	5150 – 5250 MHz
U-NII-2A	5250 – 5350 MHz
U-NII-2C	5470 – 5725 MHz
U-NII-3	5725 – 5850 MHz
