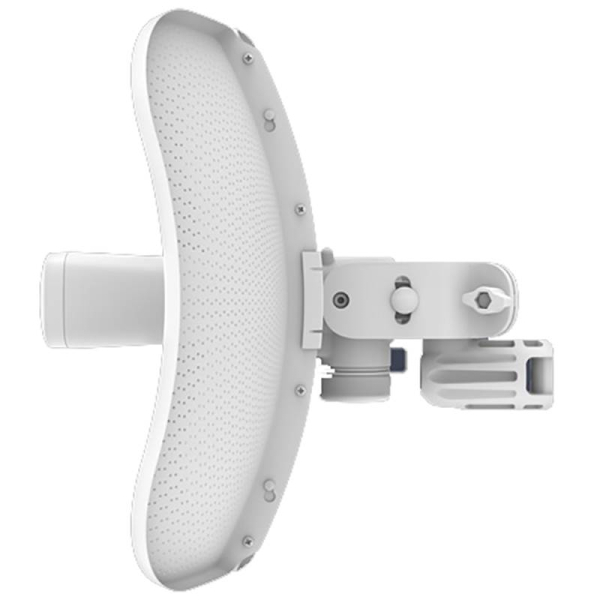

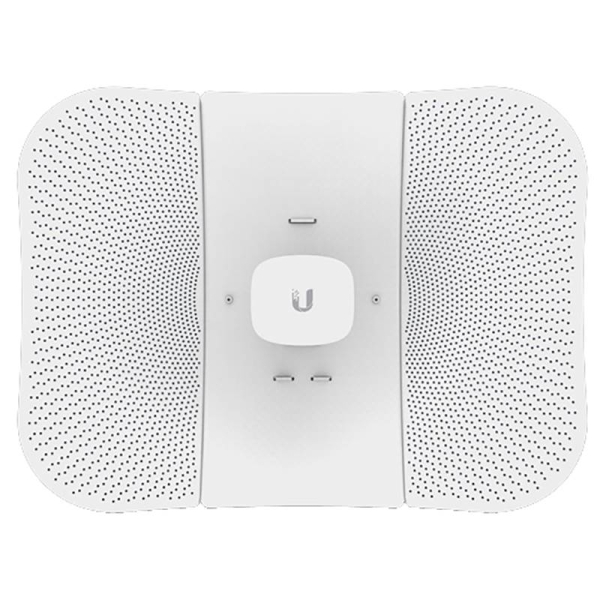

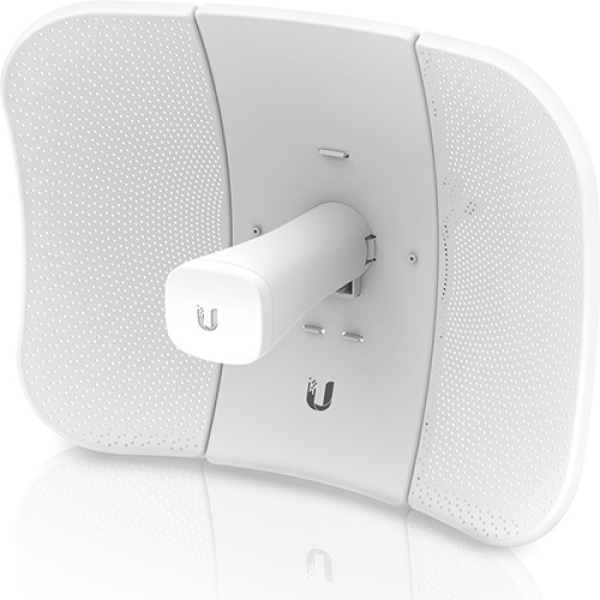

Ubiquiti LiteBeam AC 5GHz 450Mbps Wireless Bridge

Ubiquiti LiteBeam AC 5GHz 450Mbps Wireless Bridge

Name: Ubiquiti LiteBeam AC 5GHz 450Mbps Wireless Bridge
Brand: Ubiquiti
SKU: LBE-5AC-GEN2
Price: 136 AUD
Availability: InStock

SKU : LBE-5AC-GEN2

Brand : Ubiquiti

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Networking interface: (1) GbE RJ45 port, Power supply: 24V, 0.3A Gigabit PoE adapter, Max. power consumption: 7W, Max. power output: 25 dBm, Gain: 23 dBi, 01 Year Limited Warranty, LBE-5AC-GEN2.

Ask a question about this product

$136.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Ubiquiti | Model # LBE-5AC-GEN2

The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Features:

Access Point PtMP airMAX Mixed Mode
airMAX ac Protocol Support
Long-Range Point-to-Point (PtP) Link Mode
airMagic Channel Selection Tool
Redesigned User Interface
Dynamic Configuration Changes
Automatic Distance Selection (ACK Timing)
Strongest WPA2 Security

Overview:

Networking interface: (1) GbE RJ45 port
Power supply: 24V, 0.3A Gigabit PoE adapter
Max. power consumption: 7W
Max. power output: 25 dBm
Gain: 23 dBi

Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Mechanical:-
Dimensions	358 x 271.95 x 272.5 mm (14.1 x 10.7 x 10.73")
Weight	Without mount: 800 g (1.76 lb) With mount: 980 g (2.16 lb)
Wind survivability	200 km/h (125 mph)
Wind loading	275 N at 200 km/h (61.8 lbf at 125 mph)
Hardware:-
Networking interface	(1) GbE RJ45 port
Power method	Passive PoE (pairs 4, 5+; 7, 8 return)
Power supply	24V, 0.3A Gigabit PoE adapter (Included)
Max. power consumption	7W
Max. power output	25 dBm
Gain	23 dBi
Operating temperature	-40 to 70° C (-40 to 158° F)
Operating humidity	5 to 95% noncondensing
Operating Frequency (MHz):-
Worldwide	5150-5875 MHz
USA
U-NII-1	5150-5250 MHz
U-NII-2A	5250-5350 MHz
U-NII-2C	5240-5725 MHz
U-NII-3	5725-5850 MHz
Management Radio (MHz):-
Worldwide	2412 - 2472 MHz
US/CA	2412 - 2462 MHz
