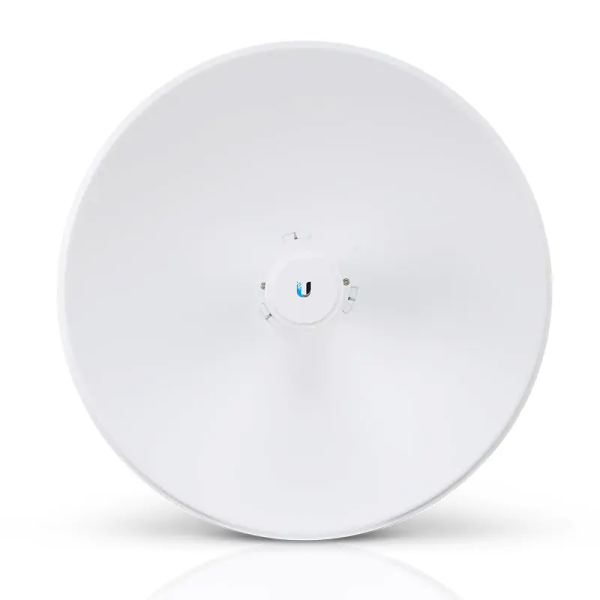

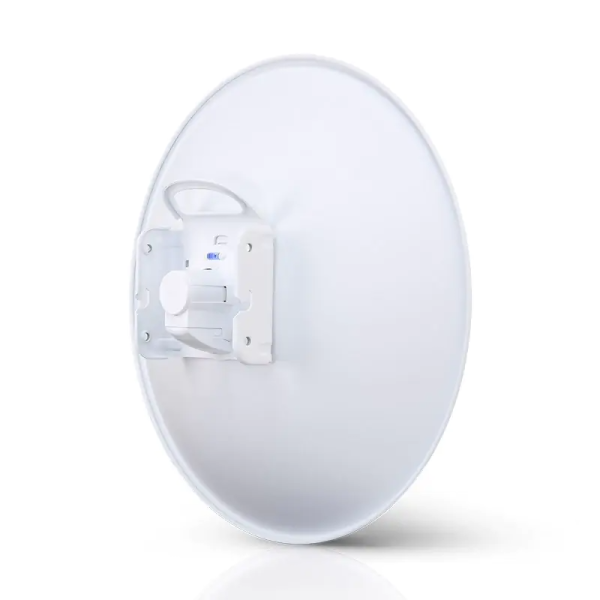

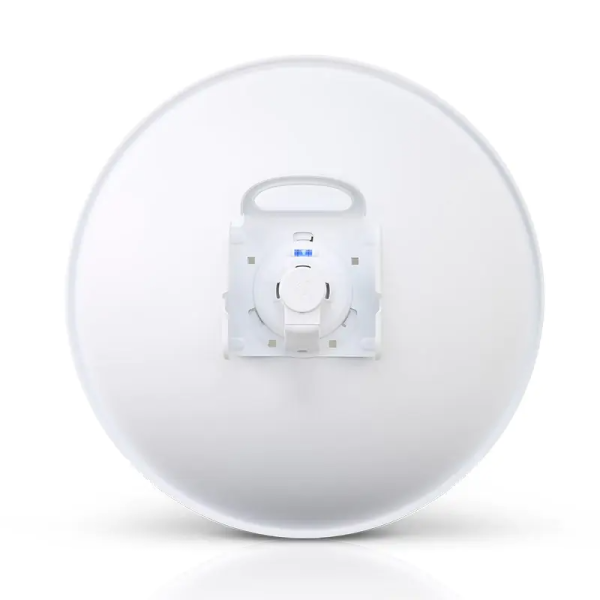

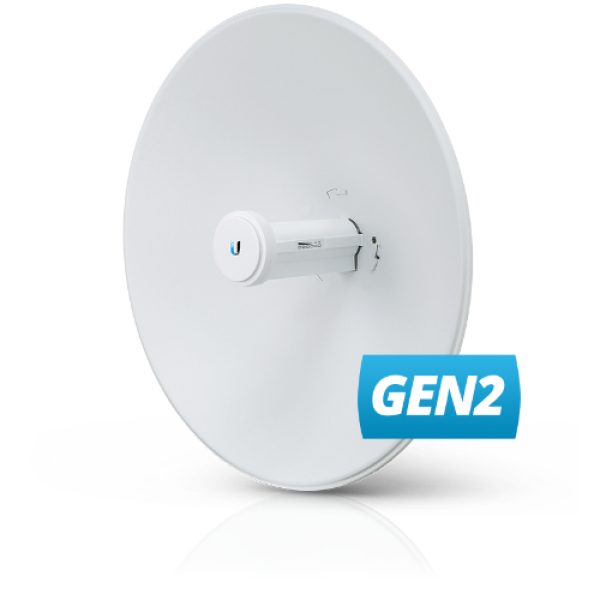

Ubiquiti PowerBeam 5AC Gen2 25dBi 5GHz 802.11ac 2x2 MIMO Antenna

Ubiquiti PowerBeam 5AC Gen2 25dBi 5GHz 802.11ac 2x2 MIMO Antenna

Name: Ubiquiti PowerBeam 5AC Gen2 25dBi 5GHz 802.11ac 2x2 MIMO Antenna
Brand: Ubiquiti
SKU: PBE-5AC-GEN2
Price: 247 AUD
Availability: InStock

SKU : PBE-5AC-GEN2

Brand : Ubiquiti

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

Wind survivability: 200 km/h (125 mph), Mounting: Pole mount kit, Networking interface: (1) GbE RJ45 port, Max. power consumption: 8.5W, Power supply: 24V, 0.5A Gigabit PoE adapter (Included), Supported voltage range: 20—26V DC, 01 Year Limited Warranty, PBE-5AC-GEN2.

Ask a question about this product

$247.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Ubiquiti | Model # PBE-5AC-GEN2

The PowerBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Features:

Access Point PtMP airMAX Mixed Mode
airMAX ac Protocol Support
Long-Range PtP Link Mode
Automatic Channel Selection
Transmit Power Control: Automatic/Manual
Automatic Distance Selection (ACK Timing)
Strongest WPA2 Security
airMagic Channel Selection Tool
Redesigned User Interface
Dynamic Configuration Changes

Overview:

Wind survivability: 200 km/h (125 mph)
Mounting: Pole mount kit
Networking interface: (1) GbE RJ45 port
Max. power consumption: 8.5W
Power supply: 24V, 0.5A Gigabit PoE adapter (Included)
Supported voltage range: 20—26V DC

Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Mechanical:-
Dimensions	420 x 420 x 230mm (16.54 x 16.54 x 9.06")
Weight	2.22 kg (4.89 lb)
Enclosure materials	UV-stabilized plastic, powder-coated SPCC
Wind loading	380 N at 200 km/h (85.4 lbf at 125 mph)
Wind survivability	200 km/h (125 mph)
Mounting	Pole mount kit (Included)
Hardware:-
Networking interface	(1) GbE RJ45 port
Power method	Passive PoE (Pairs 4, 5+; 7, 8 Return)
Max. power consumption	8.5W
Power supply	24V, 0.5A Gigabit PoE adapter (Included)
Supported voltage range	20—26V DC
ESD/EMP protection	Air/contact: ± 24 kV
LEDs	(1) Power, (1) LAN, (4) WLAN
RoHS compliance	Yes
Salt fog test	IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5
Vibration test	IEC 68-2-6
Temperature shock test	IEC 68-2-14
UV test	IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4
Wind-driven rain test	ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5
Operating temperature	-40 to 70 C (-40 to 158 F)
Operating humidity	5 to 95% noncondensing
System:-
Gain	25 dBi
Channel sizes	PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz
Operating Frequency (MHz):-
Worldwide	5150-5875 MHz
USA
U-NII-1	5150-5250 MHz
U-NII-2A	5250-5350 MHz
U-NII-2C	5240-5725 MHz
U-NII-3	5725-5850 MHz
Management Radio (MHz):-
Worldwide	2412 - 2472 MHz
US/CA	2412 - 2462 MHz
