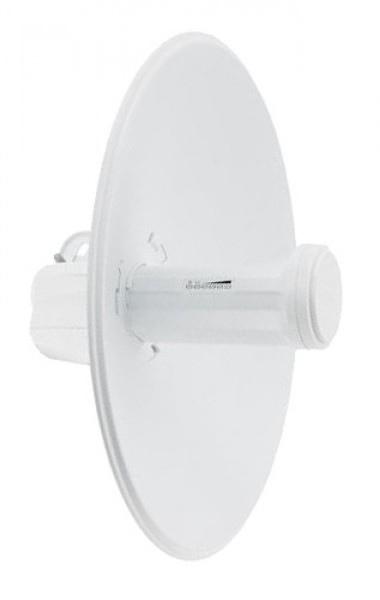

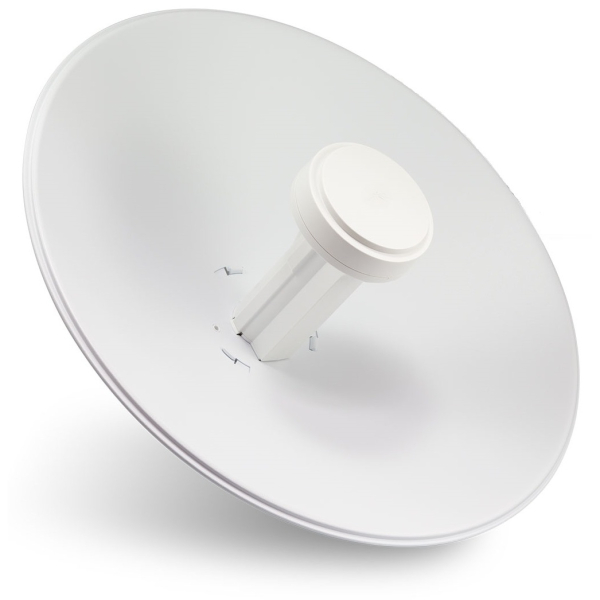

Ubiquiti Networks PowerBeam PBE-M5-400 5GHz 25dBi airMAX Bridge

Name: Ubiquiti Networks PowerBeam PBE-M5-400 5GHz 25dBi airMAX Bridge
Brand: Ubiquiti
SKU: PBE-M5-400
Price: 174 AUD
Availability: InStock

SKU : PBE-M5-400

Brand : Ubiquiti

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

4.6

61 reviews

Mounting: Pole mount kit (Included), Wind survivability: 200 km/h (125 mph), Networking interface: (1) GbE RJ45 port, Max. power consumption: 8W, Max. TX power: 26 dBm, Gain: 25 dBi, 01 Year Limited Warranty, PBE-M5-400.

Ask a question about this product

$174.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Ubiquiti | Model # PBE-M5-400

The PowerBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Overview:

Mounting: Pole mount kit (Included)
Wind survivability: 200 km/h (125 mph)
Networking interface: (1) GbE RJ45 port
Max. power consumption: 8W
Max. TX power: 26 dBm
Gain: 25 dBi

Manufacturer Warranty: 01 Year Limited Warranty

4.6

5	☆
4	☆
3	☆
2	☆
1	☆

Write Review

Reviews (61)

Write Review

Reviews (61)

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

Mechanical:-
Dimensions	420 x 420 x 275 mm (16.54 x 16.54 x 10.83")
Weight	1.75 kg (4.8 lb)
Enclosure material	UV-stabilized plastic
Mounting	Pole mount kit (Included)
Wind survivability	200 km/h (125 mph)
Wind loading	342.5 N @ 200 km/h (77 lbf @ 125 mph)
Hardware:-
Networking interface	(1) GbE RJ45 port
Power method	Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power supply	24V, 0.5A Gigabit PoE adapter (Included)
Max. power consumption	8W
Max. TX power	26 dBm
Gain	25 dBi
ESD/EMP protection	Air/contact: ± 24 kV
LEDs	(1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs	Software-adjustable to correspond to custom RSSI levels
RoHS compliance	Yes
Salt fog test	IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5
Vibration test	IEC 68-2-6
Temperature shock test	IEC 68-2-14
UV test	IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4
Wind-driven rain test	ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5
Operating temperature	-40 to 70° C (-40 to 158° F)
Operating humidity	5 to 95% noncondensing
System:-
Gain	22 dBi
Channel sizes	5/8/10/20/30/40 MHz
Polarization	Dual linear
Operating Frequency (MHz):-
Worldwide	5170 - 5875 MHz
US/CA	5725 - 5850 MHz
