| Audio Features |
HD voice: HD handset, HD speaker
Hearing aid compatible (HAC) handset
Acoustic Shield, Noise Proof
Smart Noise Filtering
Audio codec: Opus, G.722, PCMA, PCMU, G.729, G.729A, G.726, G.723.1, iLBC
DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
Full-duplex hands-free speakerphone with AEC
VAD, CNG, AEC, PLC, AJB, AGC |
| Video Features |
Video codec: H.264 High Profile, H.264, VP8
Video quality: 720P (1280x720)-30fps ( ≥ 512 kbps)
Yealink CAM50 camera:
- 5 mega-pixel
- Plug and play
- Adjustable
- With privacy shutter and LED indicator
- Vertical tilt angle adjustable: 47±3°
Field of view (FOV): 75°±5°
Self view (local video preview) |
| Display and Indicator |
LCD screen:
- 7” 1024 x 600 capacitive adjustable touch screen
- Vertical tilt angle adjustable: 48°
5 points multi-touch surface
Screensaver and Wallpaper
LED for call and message waiting indication
Intuitive user interface with icons and soft keys
Multilingual user interface
Caller ID with name, number and photo |
| Android bundled Applications |
FileManager/Email/Calendar/Camera/Gallery/ Recorder/Calculator/Browser/Message
Third party Android application support |
| Phone Features |
Yealink’s SDK (Software Development Kit)
16 SIP accounts
Call hold, call forward, call waiting, call transfer
One-touch speed dial, hotline, mute, DND
Group listening, emergency call
Redial, call return, auto answer
Direct IP call without SIP proxy
Ring tone select/import/delete
Set date time manually or automatically
Dial plan, action URL/URI
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
3-party video conferencing
10-party audio/video mixed conferencing (up to two video calls)
Data import/export via Bluetooth, email, etc.
DoorPhone features: Preview, One-button Open, Monitoring
USB/Bluetooth connectivity to Yealink CP900/CP700
speakerphone, USB connectivity to Yealink UH36
headset:
- Basic functions: Answer/end, call mute
- Enhanced function: audio optimization, redial, call
hold, volume synchronization, multiple calls control
Analog PSTN calls via CPN10
Wireless Access Point (AP mode) |
| Corded-Cordless Phone (via DECT Dongle DD10K) |
Up to 4 DECT cordless handsets
Up to 4 concurrent calls
Support Yealink W73H/W53H/W56H/W59R/DD
Phone/CP930W
Slave Handset for Master Deskset |
| IP-PBX Features |
Busy Lamp Field (BLF), Bridged Line Appearance (BLA)
Anonymous call, anonymous call rejection
Remote office, hot desking, intercom, paging
Call completion
Message Waiting Indicator (MWI)
Voice mail, call park, call pickup
Music on hold
Call recording |
| Directory |
Local phonebook up to 1000 entries
Block list
XML/LDAP remote phonebook
Google contacts
Smart dialing
Phonebook search/import/export
Call history: dialed/received/missed/forwarded |
| Feature keys |
27 one-touch DSS keys
7 feature keys: hold, transfer, message, headset, mute, redial, speakerphone
Volume control keys
Illuminated mute/headset/hands-free speakerphone key |
| Interface |
Dual-port Gigabit Ethernet
Power over Ethernet (IEEE 802.3af), class 3
Built-in dual band Wi-Fi:
- Network standard: IEEE802.11a/b/g/n
- Frequency range: 2.4GHz/5.0GHz
Built-in Bluetooth 4.2 for
- Bluetooth Handset BTH58
- Bluetooth headsets
- Pairing mobile devices
- Simultaneous connection of one headset and one
mobile phone
1 x USB 2.0 port (on the top of the phone) for:
- Yealink CAM50 camera
1 x USB 2.0 port (on the rear of the phone) for:
- USB flash drive
- Wired/wireless USB headset
- Color-screen expansion modules
- Wireless Headset Adapter EHS40
1 x Security lock port
1 x RJ9 (4P4C) handset port
1 x RJ9 (4P4C) headset port
Supports up to 3 color-screen expansion modules |
| Management |
Configuration: browser/phone/auto provision
Auto provision via FTP/TFTP/HTTP/HTTPS
Auto provision with PnP, Zero-sp-touch, TR-069
Phone lock for personal privacy protection
Reset to factory, reboot
Package tracing export, system log
Only the administrator can install/uninstall apps via autop
Setup Assistant wizard
Supports Yealink Device Management Platform (YMDP/YMCS)
Supports Unify Square Device Management Plat- form |
| Network and Security |
IPv4/IPv6
SIP v1 (RFC2543), v2 (RFC3261)
Call server redundancy supported
NAT traversal: STUN mode
Proxy mode and peer-to-peer SIP link mode
IP assignment: static/DHCP
HTTP/HTTPS web server
Time and date synchronization using SNTP
UDP/TCP/DNS-SRV (RFC 3263)
QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
SRTP
Transport Layer Security (TLS1.3)
HTTPS certificate manager
AES encryption for configuration file (AES256)
Adb encryption authenticated
Digest authentication using MD5/MD5-sess
OpenVPN, IEEE802.1X, L2TP VPN
WPA2/WPA3
Secure boot
GARP (Generic Attribute Registration Protocol) |
| Other Physical Features |
Color: Classic Grey
Wall mountable (optional)
External Yealink AC adapter (optional): AC 100~240V input and DC 5V/2A output
USB output currency: 5V 500mA
Power consumption (PSU): 2.5W~7.5W
Power consumption (PoE): 3.3W~9W
Dimension (W*D*H*T): 259.4mm*220mm*239mm*42.6mm
Operating humidity: 10~95%
Operating temperature: 0~40°C (+32~104°F) |
| Package Features |
Package content:

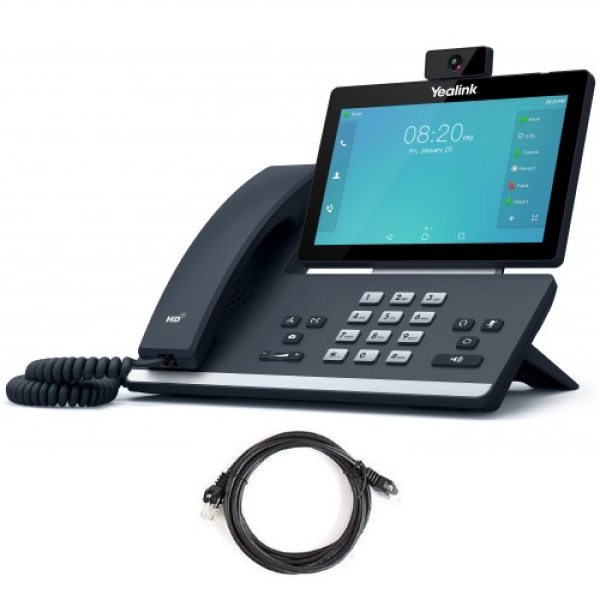

- Yealink SIP-T58W Pro with camera IP phone
- Handset:
Wired handset with handset cord (Optional)
BTH58 Bluetooth handset
- Ethernet Cable
- Stand
- Yealink CAM50 camera
- Quick Start Guide
- Power Adapter (Optional)
Qty/CTN: 5 PCS |
