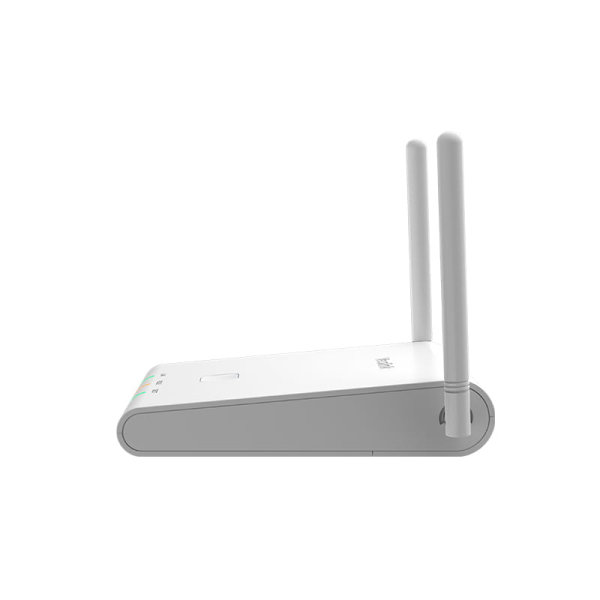

Yealink W90B-DM Cordless DECT IP Multicell System

SKU : W90DM
Brand : Yealink
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Interface: 1 x RJ45 10/100M Ethernet port, DECT: DECT Standards: CAT-iq2.0, Base stations: Up to 60, Handsets: Up to 250, Simultaneous calls: Up to 250, VoIP accounts: Up to 250, Warranty: 01 Year, W90DM.
Ask a question about this product
$453.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Yealink | Model # W90DM



The DECT Manager and the W90B base station make up the Yealink W90 DECT IP Multi-Cell System. This system offers a smooth handoff and the best mobile solution in the industry for all kinds of places, like factories, hospitals, hotels, store chains, cruise ships, offices, retail layouts, and more. With stable travel and easy setup, the Yealink W90 DECT IP multi-cell device makes sure that contact works smoothly in a lot of different places.



Features:

  • The Yealink W90 DECT IP Multi-Cell System brings seamless stability. The external antennas bring further signal range, industry-leading coverage, and flexible steering for complex areas, which truly saves amount and cost of bases in deployment. In poor signal transmission environment and strong signal interference, the LAN Sync guarantees stable roaming.
  • The Yealink W90 DECT IP Multi-Cell System provides easier and faster setup for users: the DECT Deployment Toolkit for quick base location, IP discovery tool for quickly getting IP of DM, and auto sync level for self-organizing network without manual operation. Besides, bulk registration of handsets is available by importing csv document. Instead of complex steps, it takes less time from deployment to daily management for large system.
  • Available for 1DM, 60 bases, 250 handsets and 250 parallel calls, the Yealink W90 DECT IP Multi-Cell System is tailored for large space and multi-locations & bases, delivering unified communicating solution especially for warehouses, hospitals, hotels, supermarkets chains, cruises, authorized car dealerships, offices, retail formats, etc. Virtual machines and more bases will be supported in the future, boarding the coverage once more.



Overview:

  • Interface: 1 x RJ45 10/100M Ethernet port
  • DECT: DECT Standards: CAT-iq2.0
  • Base stations: Up to 60
  • Handsets: Up to 250
  • Simultaneous calls: Up to 250
  • VoIP accounts: Up to 250



Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Phone Features Sync over the Air and LAN (Seamless handover and roaming)
Each Multicell System
- Up to 60 base stations
- Up to 250 handsets
- Up to 250 VoIP accounts
- Up to 250 simultaneous calls
- Up to 8 WB (4 active handsets) calls per base
- Up to 8 NB calls per base
Up to 2 simultaneous calls per handset
Call hold, call transfer, 3-way conference
Switching between calls
Call waiting, mute, silence, DND
Caller ID with name and number
Anonymous call, Anonymous call rejection
Call forward (always/busy/no answer)
Speed dial, voicemail, redial
Message Waiting Indication (MWI)
Music on hold (server-based)
Local phonebook for up to 100 entries per handset
Remote phonebook/LDAP/XML phonebook
Phonebook search/import/export
Call history (all/missed/placed/received)
Reset to factory, reboot
Keypad lock, emergency call
Broadsoft directory, BroadSoft call log
Broadworks feature key synchronization
Shared Call Appearance (SCA)
XML browser
IPUI registration
User access level
Management Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
Auto-provision with PnP
Handset upgrade: OTA (Over-The-Air)
Configuration: browser/phone/auto-provision
Trace package and system log export
Audio Features Full-duplex speakerphone
Hearing Aid Compatibility (HAC) compliant
DTMF
Wideband codec: Opus, AMR-WB (optional), G.722
Narrowband codec: AMR-NB (optional), PCMU,PCMA, G.726, G.729, iLBC
VAD, CNG, AGC, PLC, AJB
Network Features SIP v1 (RFC2543), v2 (RFC3261)
SNTP/NTP
VLAN (802.1Q and 802.1P)
802.1x, LLDP
STUN Client (NAT Traversal)
UDP/TCP/TLS
IP assignment: static/DHCP
Support outbound proxy server backup
Security Open VPN
Transport Layer Security (TLS1.0/TLS1.1/ TLS1.2)
HTTPS (server/client), SRTP
Digest authentication
Secure configuration file via AES encryption
Support SHA256/SHA512/SHA384
DECT Frequency bands:
1880 - 1900 MHz (Europe), 1920 - 1930 MHz (US)
DECT Standards: CAT-iq2.0
Interface 1 x RJ45 10/100M Ethernet port
Power over Ethernet (IEEE 802.3af), Class 1
Physical Features Indoor Range: 30m~50m (The ideal distance is 50m)
Outdoor Range: 300m (in ideal conditions)
Wall mountable
Three LED indicators on W90DM/W90B:
- 1 x LAN (Power Indicator & Network Status) LED
- 1 x Role LED
- 1 x DECT LED
- External Yealink AC adapter: AC 100-240V Input and DC 5V/1.2A Output
- Color: Pearl White
- Dimension: 134mm x 100mm x 28mm
- Operating humidity: 10~95%
- Operating temperature: 0~+40°C (+32~104°F)
Package Features Package contents:
- W90DM/W90B
- Expansion Screws
- Quick Start Guide
- Power Adapter (optional)
Qty/CNT: 10 PCS
