Name: AVer CAM570 4K Dual-Lens PTZ Conferencing Camera
Brand: AVER
SKU: CAM570
Price: 3261 AUD
Availability: InStock

AVer CAM570 4K Dual-Lens PTZ Conferencing Camera

SKU : CAM570

Brand : AVER

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # AVer | Model # CAM570

AVer CAM570 is a 4K dual lens camera with a 36X Total zoom PTZ camera and a second AI lens with 95?FOV. Equipped with built-in audio sensor, CAM570 detects human voices up to 10M and offers audio tracking function. AI technology such as Smart Gallery and gesture control can capture every attendees up-close with premium video quality.

Features:

Easily focus on active speaker with audio tracking mode and presentation mode. The camera will follow the speaker automatically or you can set up a preset point to focus on a specific area. The built-in sensor picks up human voices up to 10M without being disturbed by a local speakerphone.
The dual-lens design detects real-time motion precisely while offering a complete view of the room simultaneously. When the second AI lens detects a newcomer walking in, it triggers the first PTZ camera to re-frame the participants, ensuring all meeting attendees are instantly captured again for a seamless collaboration in real-time.
Perfectly see everyone in the room. Thanks to AI technology, Smart Gallery crops meeting attendees and display them in equal individual feeds. Highlight participants’ facial and body expressions, leading to effective hybrid meetings.
With the application of AI to recognize gestures and interpret commands, you can turn on/off the tracking function and zoom in/out without any direct physical touch. Minimize the touch points and improve workplace hygiene.
CAM570 includes a PTZ camera with 36X Total zoom and a second AI lens to provide a panoramic view. The dual-lens design offers a speaker view and wide-angle view simultaneously with various PIP layout options. Ideal for larger and more complex meeting spaces.

Overview:

Image sensor: Sony 4K EXMOR, crystal clear in any lighting
36X Zoom*: 12X optical; 3X digital zoom
Wide field of view: DFOV 90°/ HFOV 82°/ VFOV 52°
Lens focal length: 3.4mm (wide) ~ 40.3mm (tele)
Lens F#: 1.8 (wide) ~ 3.6 (tele)
Image sensor: Sony 4K EXMOR

Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Dual Camera	PTZ optical zoom lens Image sensor: Sony 4K EXMOR, crystal clear in any lighting Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps 36X Zoom: 12X optical; 3X digital zoom Wide field of view: DFOV 90°/ HFOV 82°/ VFOV 52° Lens focal length: 3.4mm (wide) ~ 40.3mm (tele) Lens F#: 1.8 (wide) ~ 3.6 (tele) Wide Dynamic Range (WDR): Superb backlight compensation technology for optimizing light balance in high-contrast conditions Minimum focus distance: 1.5m Motorized Pan & tilt: Pan: ±170°;Tilt: +90° (up) -30° (down) Preset number: 10 via IR remote, 128 via RS232 Image flip and image mirror Secondary fixed lens (AI lens)Image sensor: Sony 4K EXMOR Frame rates and resolution set according to PTZ lens settings Wide field of view: DFOV 95°; HFOV 78°; VFOV 50° Please use PTZApp 2 to set up 36X zoom *Please don't put the CAM570 on the table. This will block the view of AI lens and the AI detection function will malfunction. The suggested installation height is 1.5m away from the floor.
Audio Sensor	Audio pick-up range: 10m, ±60° 3 pairs of sensor, each composed of 4 sensors * The built-in sensor is for the audio-tracking function, it cannot be used as an audio source for video-conferencing software.
HDMI & PoE	HDMI 1.3: 1080p 30fps/ 60fps PoE+: 802.3at
Video Format	YUV, YUY2, MJPEG Network video compression format: H.264 Network protocol: RTSP, RTMP
USB	3.1 Gen 1, backward compatible with USB 2.0 UVC 1.1 (USB video), UVC1.5* * UVC1.5 utilizes a different platform environment and requires an extra FW upgrade. Please contact technical support for more details.
Power Supply	AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A PoE+: 802.3 at
Environment Data	Operation temperature: 0 to 40°C Operation humidity: 20% to 80% Storage temperature: -20 to 60°C Storage humidity: 20% to 80%
Dimensions	Camera: 170.8 (L) X 190.5 (H) X 173 (D) mm/ 2.1kg Remote control: 200 x 50 x 21mm/90g
Optional Accessories	FONE 540 Mini DIN 8 to D-Sub 9 RS232 Cable Ceiling mount Foldable TV mount USB2.0 type-B to type-A cable (5 m) USB 3.1 Extension Cable (10 m/20 m/30 m) 1-Port POE+ Injector
System Requirements	Windows® 7/10/11 Mac OS X 10.14 or later Chromebox 3 version 94.0.4606.114 or later
Innovative features	SmartSpeaker: automatically track human voice and focus on the speaker Dynamic detection: secondary AI lens detects all participants new participants trigger PTZ lens to dynamically frame all participants. Presentation tracking: voice-triggered tracking speaker with both preset area and people tracking* Simultaneous 3-way output: USB, HDMI and IP connections Gesture control provides intuitive camera controls Smart gallery function offers great visibility for individual participant in the meeting room Cableless access to meetings: Get rid of USB cable connections with AVer virtual USB streaming technology (One RJ45 cable transfers IP streaming to USB.) 3rd party audio tracking support*: Integration with 3rd party ceiling microphone (Shure/ Sennheiser/ Yahama) via AVer Preset Link function. * Make sure preset areas are within AI lens' view. Please download PTZApp 2 to set up Smart gallery, USB virtual streaming and Preset Link functionality * While CAM570 already offers audio tracking function, we still integrate with 3rd party ceiling microphone for more audio tracking settings via the PTZApp 2 on PC.

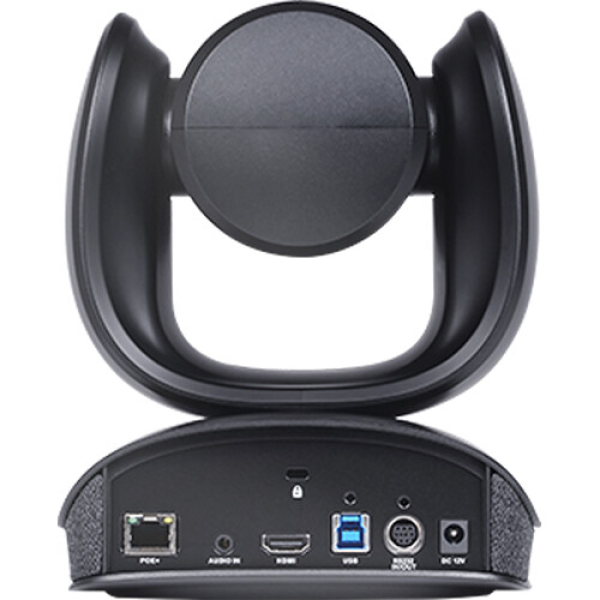

Connectivity	USB type-B 3.1 connector, backward compatible with USB 2.0 12V/2A DC jack power adapter Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain) IP (RJ45) HDMI Audio line-in* *To avoid tracking the speakerphone, please insert speakerphone's Line-out to CAM570's Line-in port.
Package Contents	CAM570 unit Power adapter (10 ft/3 m) USB 3.1 type-B to type-A cable (3m) Remote control Mini DIN9 to mini DIN8 RS232 adapter cable HDMI cable (3 m) Wall mount bracket and screws QR code card Tripod screw Drill paper
Control	IR remote control VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command) Remote side: VISCA over IP, IP (RJ45) UVC plug and play WebUI: Browser IP access via Chrome. (Not support IE) OSD setting: HDMI out to TV monitor PTZApp 2
Security and Mount	Kensington lock 1/4' tripod mounting screw Camera wall-mount bracket included Optional foldable TV mount Optional ceiling mount
Hardware Specs	3.2 GHz Intel® Core™ i5-4460 processor 4 GB RAM or more USB 3.1 port, backward compatible with USB 2.0
Compatible Applications	Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans , Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit
