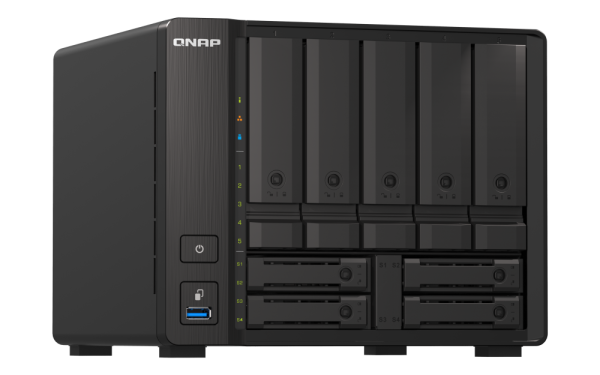

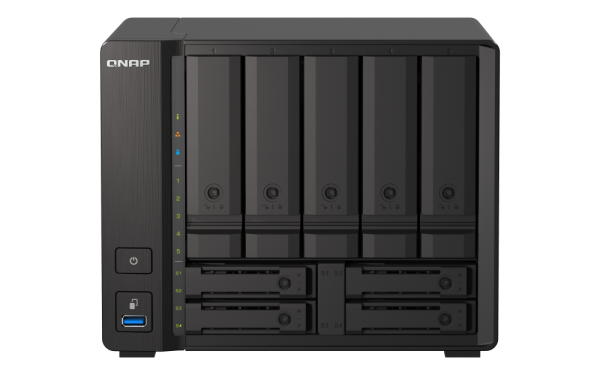

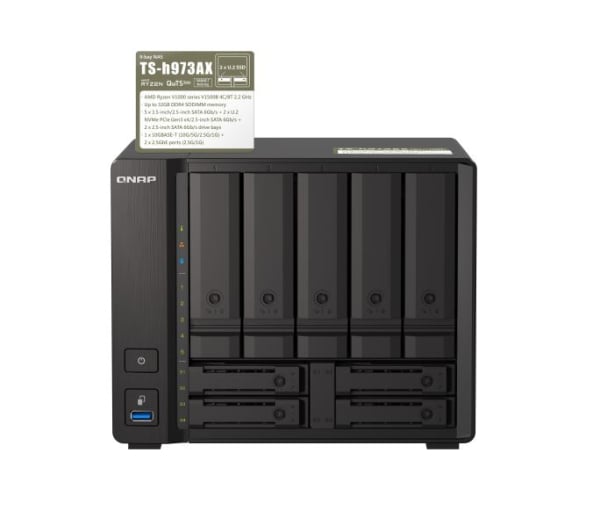

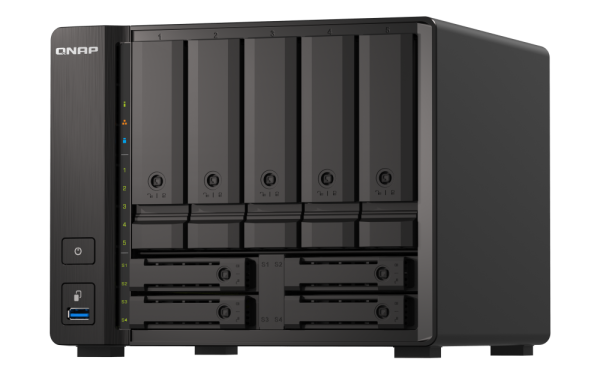

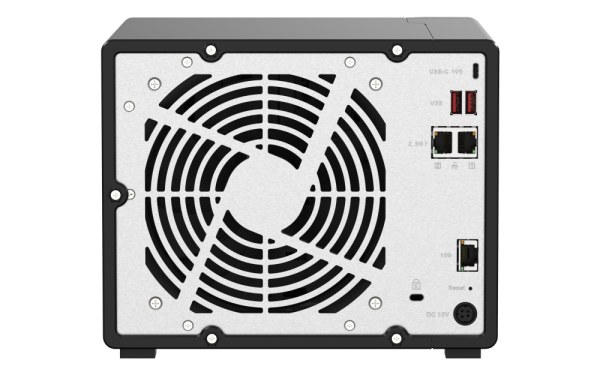

QNAP 9-Bay AMD Ryzen CPU 8GB RAM Diskless NAS Desktop TS-h973AX-8G

SKU : TS-h973AX-8G
Brand : QNAP
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
CPU Architecture: 64-bit x86, System Memory: 8 GB SODIMM, Form Factor: Tower, Buttons: Power, Reset, USB Copy, System Warning: Buzzer, 03 Years Limited Warranty, TS-h973AX-8G.
Ask a question about this product
$1,572.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # QNAP | Model # TS-h973AX-8G



Featuring an AMD Ryzen V1000 series V1500B quad-core processor and 10GbE/2.5GbE connectivity, the 9-bay TS-h973AX packs a high-capacity hybrid storage infrastructure into a compact physical footprint. With five 3.5-inch SATA 6Gbps drive bays, two 2.5-inch U.2 NVMe SSD slots (Slot 1 & 2 support both U.2 NVMe and SATA SSDs ), and two 2.5-inch SATA 6Gbps SSD slots, the TS-h973AX can benefit from SSD caching to boost IOPS-intensive applications.



Features:

  • One 10GBASE-T Multi-Gig and two 2.5GbE LAN ports accelerate virtualization, intensive file access, large backup/restoration tasks, and media transfer.
  • Experience a business-class backup center, supporting backup/restore of cloud data and VMs (including Google Workspace, Microsoft 365, VMware and Hyper-V).
  • Host multiple virtual machines and containers to run a wide range of applications on the TS-h973AX.
  • Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
  • Flexibly scale your total storage capacity to match your business growth by connecting USB expansion enclosures (TR series JBOD).


Overview:

  • CPU Architecture: 64-bit x86
  • System Memory: 8 GB SODIMM
  • Form Factor: Tower
  • Buttons: Power, Reset, USB Copy
  • System Warning: Buzzer



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

CPU AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor
CPU Architecture 64-bit x86
Floating Point Unit Yes
Encryption Engine Yes (AES-NI)
System Memory 8 GB SODIMM DDR4 (1 x 8 GB)
Maximum Memory 64 GB (2 x 32 GB)
Memory Slot 2 x SODIMM DDR4
Support optional ECC memory
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 5 x 3.5-inch + 4 x 2.5-inch
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

2.5-inch bays:
2.5-inch SATA solid state drives
2.5-inch U.2 NVMe PCIe Gen3 x4 solid state drives (2.5-inch Bay #1 & #2)
Hot-swappable Yes
SSD Cache Acceleration Support Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via the QNA-UC5G1T USB to 5GbE network adapter
10 Gigabit Ethernet Port 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Wake on LAN (WOL) Yes
Jumbo Frame Yes
USB 3.2 Gen 2 (10Gbps) Port 1 x Type-C USB 3.2 Gen 2
3 x Type-A USB 3.2 Gen 2
Form Factor Tower
LED Indicators HDD 1-5, SSD 1-4, Power/Status, LAN, USB
Buttons Power, Reset, USB Copy
Dimensions (HxWxD) 182.65 × 224.6 × 224.1 mm
Weight (Net) 3.52 kg
Weight (Gross) 5.12 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit External, 120 W, AC 100 to 240 V
Power Consumption: HDD Sleep Mode 41.2 W
Power Consumption: Operating Mode, Typical 55.41 W
Fan 1 x 140mm, 12VDC
System Warning Buzzer
Kensington Security Slot Yes
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 2000
