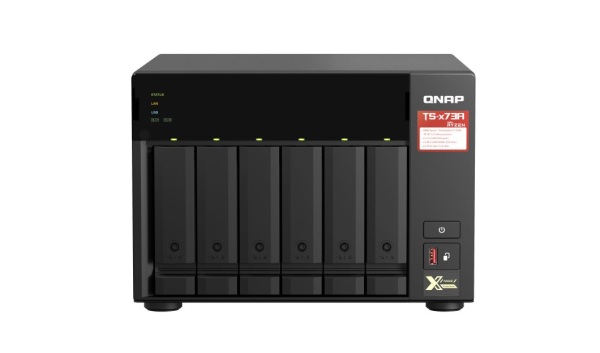

QNAP TS-673A 6 Bay Ryzen Quad Core 8GB NAS TS-673A-8G

SKU : TS-673A-8G
Brand : QNAP
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
CPU: AMD Ryzen Embedded, System Memory: 8 GB SODIMM, M.2 Slot: 2 x M.2 2280 PCIe Gen3 x1 slots, Form Factor: Tower, Buttons: Power, Reset, USB Auto Copy, System Warning: Buzzer, 03 Years Limited Warranty, TS-673A-8G.
Ask a question about this product
$1,573.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # QNAP | Model # TS-673A-8G



Featuring an AMD Ryzen V1000 series V1500B quad-core processor that delivers great system performance with up to quad-core / 8 threads and Turbo Core up to 2.2 GHz. The TS-673A features two 2.5GbE RJ45 ports and two PCIe Gen 3 slots for you to flexibly deploy 5GbE/10GbE networks. Two M.2 NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization.


Features:

  • Both 2.5GbE ports are backwards compatible with 1GbE/ 100MbE speeds. Up to 5 Gbps transfer speeds can be achieved by using port trunking.
  • Add extra functionality with PCIe cards, including 10GbE ports, SSD caching, extra USB 3.2 Gen 2 ports, wireless networking, or Fibre Channel.
  • Supports entry-level NVIDIA graphics cards for video processing or GPU-passthrough to VMs.
  • Features two M.2 PCIe NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization.
  • Host containerized applications and virtual machines with various operating systems.
  • Features QTS operating system and supports switching to ZFS-based QuTS hero for greater reliability.


Overview:

  • CPU: AMD Ryzen Embedded
  • System Memory: 8 GB SODIMM
  • M.2 Slot: 2 x M.2 2280 PCIe Gen3 x1 slots
  • Form Factor: Tower
  • Buttons: Power, Reset, USB Auto Copy
  • System Warning: Buzzer



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

CPU AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor
CPU Architecture 64-bit x86
Graphic Processors Optional via a PCIe adapter
Floating Point Unit Yes
Encryption Engine Yes (AES-NI)
Hardware-accelerated Transcoding Optional via a PCIe adapter
System Memory 8 GB SODIMM DDR4 (1 x 8 GB)
Maximum Memory 64 GB (2 x 32 GB)
Memory Slot 2 x SODIMM DDR4
Support ECC memory
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 6 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable Yes
M.2 Slot 2 x M.2 2280 PCIe Gen3 x1 slots
SSD Cache Acceleration Support Yes
GPU pass-through Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2(2.5G/1G/100M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via a PCIe adapter
10 Gigabit Ethernet Port Optional via a PCIe adapter
Wake on LAN (WOL) Yes
Jumbo Frame Yes
PCIe Slot 2
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x4
USB 3.2 Gen 2 (10Gbps) Port 3 x Type-A USB 3.2 Gen 2 10Gbps
1 x Type-C USB 3.2 Gen 1 5Gbps
HDMI Output Optional via a PCIe adapter
Form Factor Tower
LED Indicators Status/Power, USB, LAN, Drive 1-6, M.2 SSD 1-2
Buttons Power, Reset, USB Auto Copy
Dimensions (HxWxD) 188.2 × 264.3 × 280.8 mm
Weight (Net) 5.78 kg
Weight (Gross) 7.35 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit 250W, 100-240V AC, 50-60Hz, 3.5A
Power Consumption: HDD Sleep Mode 21.891 W
Power Consumption: Operating Mode, Typical 45.898 W
Fan System fan: 2 x 92mm
CPU fan: 1 x 60mm
System Warning Buzzer
Kensington Security Slot Yes
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 2000
