Name: STARTECH 1 Port Pci Express Pcie Gigabit Nic ST1000SPEX2L
Brand: StarTech
SKU: ST1000SPEX2L
Price: 59 AUD
Availability: InStock

SKU : ST1000SPEX2L

Brand : StarTech

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

STARTECH 1 Port Pci Express Pcie Gigabit Nic ST1000SPEX2L, 1 - Connector Type(s): PCI Express x1, 1 - External Ports: RJ-45, Ports: 1, Interface: RJ45 (Gigabit Ethernet), Bus Type: PCI Express, Card Type: Low Profile (SP bracket incl.), Chipset ID: Realtek - RTL8111 The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.

Ask a question about this product

$59.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Startech | Model # ST1000SPEX2L

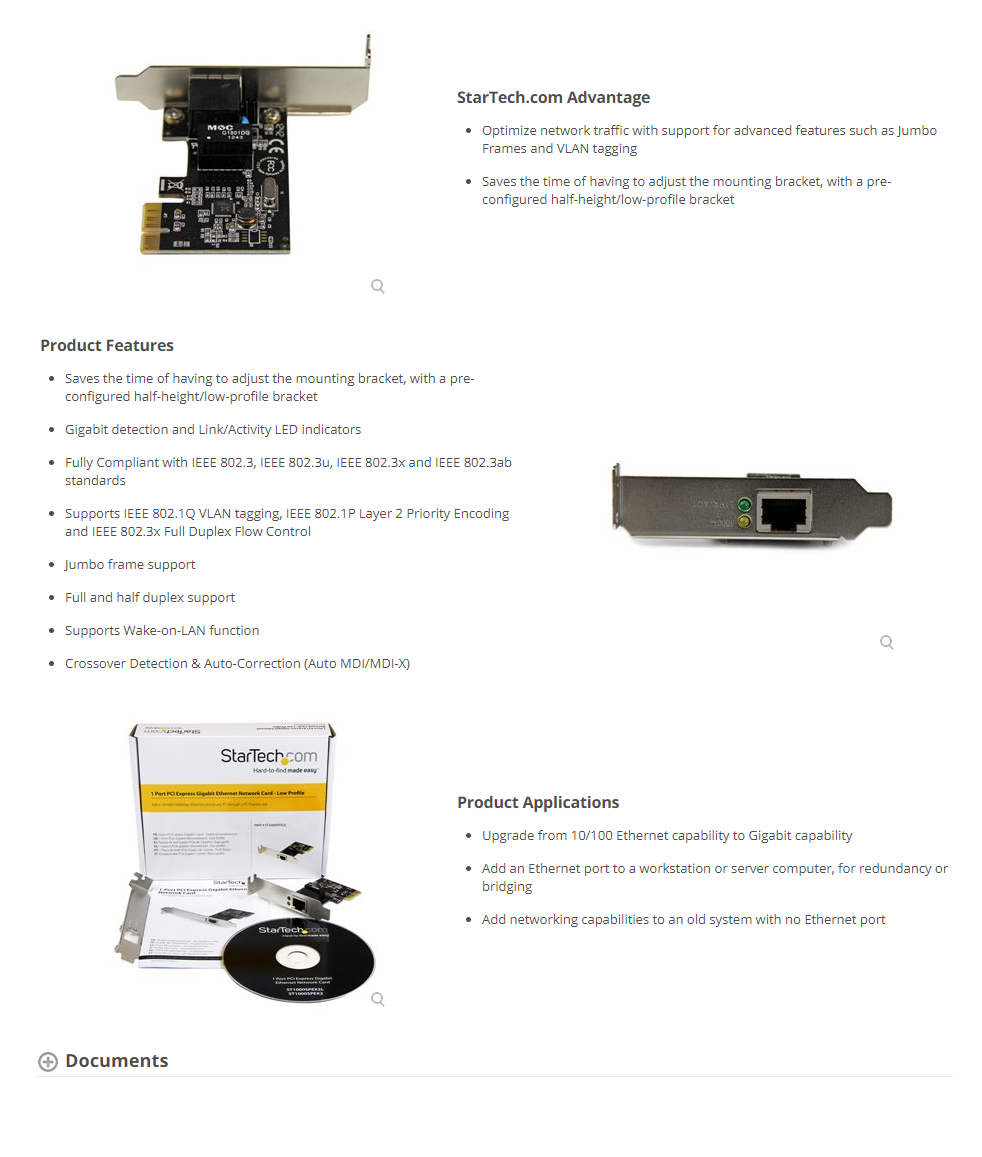

The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.

Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.

Features:

A Startech ST1000SPEX2L single 10/100/1000Mbps compatible RJ45 Ethernet port
Gigabit detection and Link/Activity LED indicators
Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
Supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
Jumbo frame support full and half duplex support
Supports ST1000SPEX2L Wake-on-LAN function
Crossover Detection & Auto-Correction (Auto MDI/MDI-X)

Overview:

1 - Connector Type(s): PCI Express x1
1 - External Ports: RJ-45
Ports: 1
Interface: RJ45 (Gigabit Ethernet)
Bus Type: PCI Express
Card Type: Low Profile (SP bracket incl.)

Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Warranty	2 Years
1 - Connector Type(s)	PCI Express x1
1 - External Ports	RJ-45
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	0°C to 100°C (32°F to 212°F)
Humidity	10% ~ 90% RH
Ports	1
Interface	RJ45 (Gigabit Ethernet)
Bus Type	PCI Express
Card Type	Low Profile (SP bracket incl.)
Industry Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Chipset ID	Realtek - RTL8111
1 - LED Indicators	Link/Activity (Green) / Gigabit Detect (Yellow)
Package Height	31 mm [1.2 in]
Package Length	14.4 cm [5.7 in]
Shipping (Package) Weight	125 g [4.4 oz]
Package Width	17.3 cm [6.8 in]
Maximum Data Transfer Rate	1000 Mbps
Compatible Networks	10/100/1000 Mbps
Auto MDIX	Yes
Full Duplex Support	Yes
Jumbo Frame Support	9K max.
Supported Protocols	CSMA/CD
Weight of Product	27 g [1.0 oz]
Material	Steel
Product Length	70 mm [2.8 in]
Product Width	18 mm [0.7 in]
Product Height	49 mm [1.9 in]
OS Compatibility	Windows® 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS X® 10.6 to 10.9 Linux 2.4.x to 4.11.x LTS Versions Only
System and Cable Requirements	Available PCI Express expansion card slot
1 - Included in Package	Gigabit Ethernet PCI Express Card Standard Profile Bracket Instruction Manual
